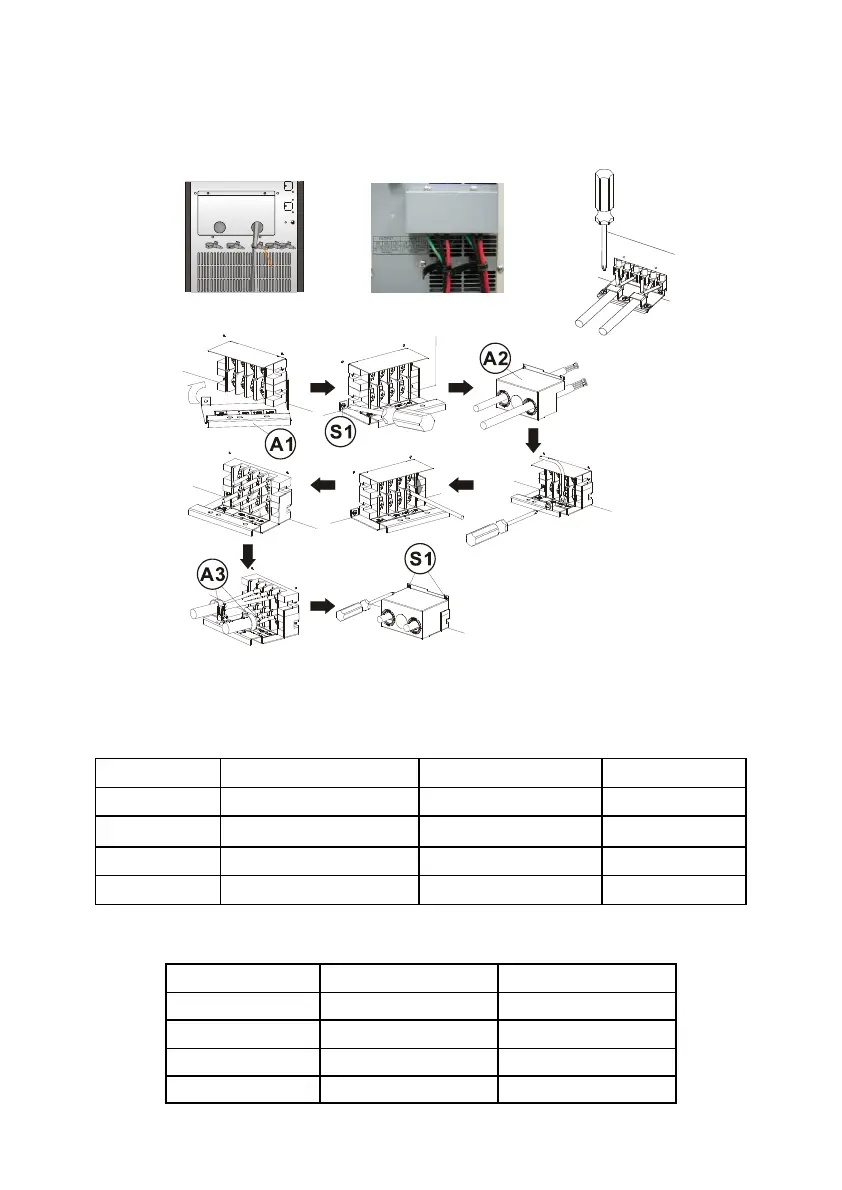

● Use Mounting Cable Tie to fix cables.
6. Please refer to the specs of input current, output current and recommended
conductors listed as below :
a. AC input and output (75C minimum copper wire)
b. Battery input
Model
Maximum Current
Conductor Section
Torque force
5/6KVA
33A
AWG ＃8
17.7/11 lb-in
10KVA
54.3A
AWG ＃6
23 lb-in
15KVA
30.2 A/83.3A(In/Out)
AWG ＃8/ #4
20KVA
39.85 A/111A(In/Out)
AWG ＃8/ #4
Model
Maximum Current
Conductor Section
5/6KVA
25A
AWG ＃10
10KVA
41A
AWG ＃10
15KVA
62.5A
AWG ＃6
20KVA
83A
AWG ＃4
6K Rack model
5/6k model
10K Rack model
