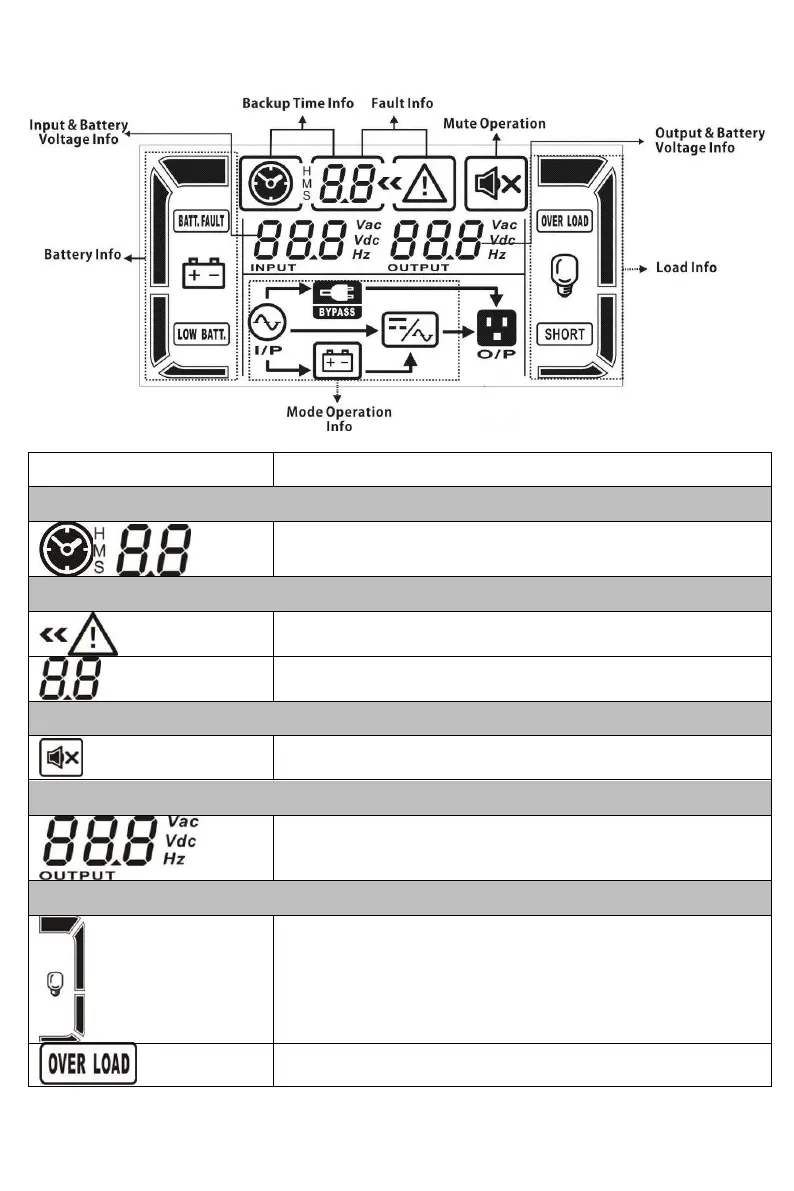

LCD Panel:
Display
Function
Backup time information
Indicates backup time in numbers
H: hours, M: minutes, S: seconds
Fault information
Indicates that the warning and fault occurs.
Indicates fault codes (listed in details in section 3-9).
Mute operation
Indicates that the UPS alarm is disabled.
Output & Battery voltage information
Indicates output voltage, frequency or battery voltage.
VAC: output voltage, VDC: battery voltage, Hz: frequency
Load information
Indicates the load level: 0-25%, 26-50%, 51-75%, and 76-
100%.
Indicates overload.
