Page 17

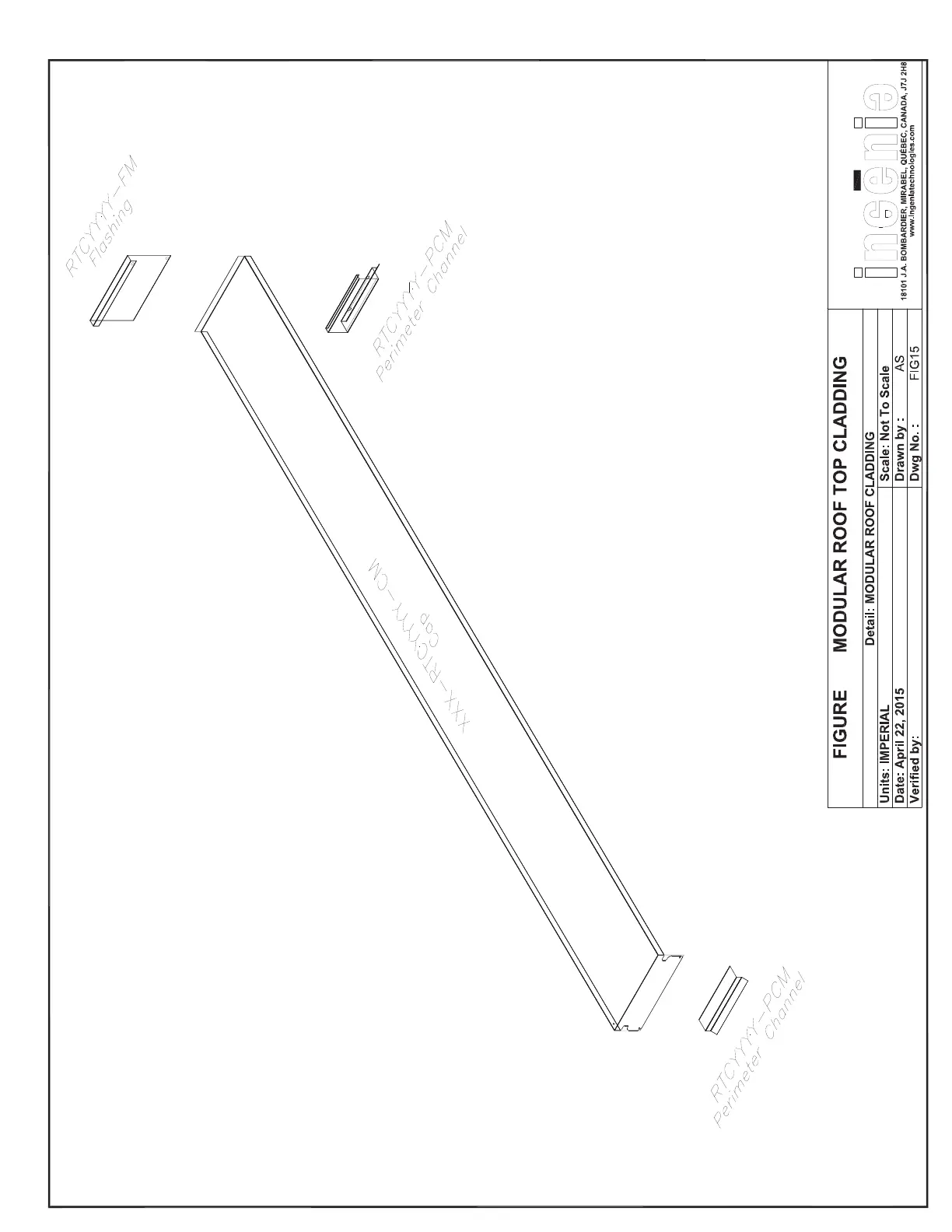

STEP 1: Install the side PCM over modular seam (bolt them

to top of roof panel with the gutter lip overhanging the roof)

STEP 2: Install the seam CAP (panel). Match the holes on the

long side and bolt to attach.

STEP 3: Install and bolt side Flashing on high side of slope.

Hardware: Use 1/4-20 VIS FTSQ 1/4"-20 X 5/8 SST for bolts.

REFER TO ASSEMBLY DRAWINGS

FOR SPECIFICS TO THE PROJECT.
