8.4 Door Hinge Adjustment
The door can be adjusted by loosening the three bolts found on the door hinges and simply
shifting the door to the desired position. Shims can be used to hold the door in its final posi
tion until all the bolts are secured.

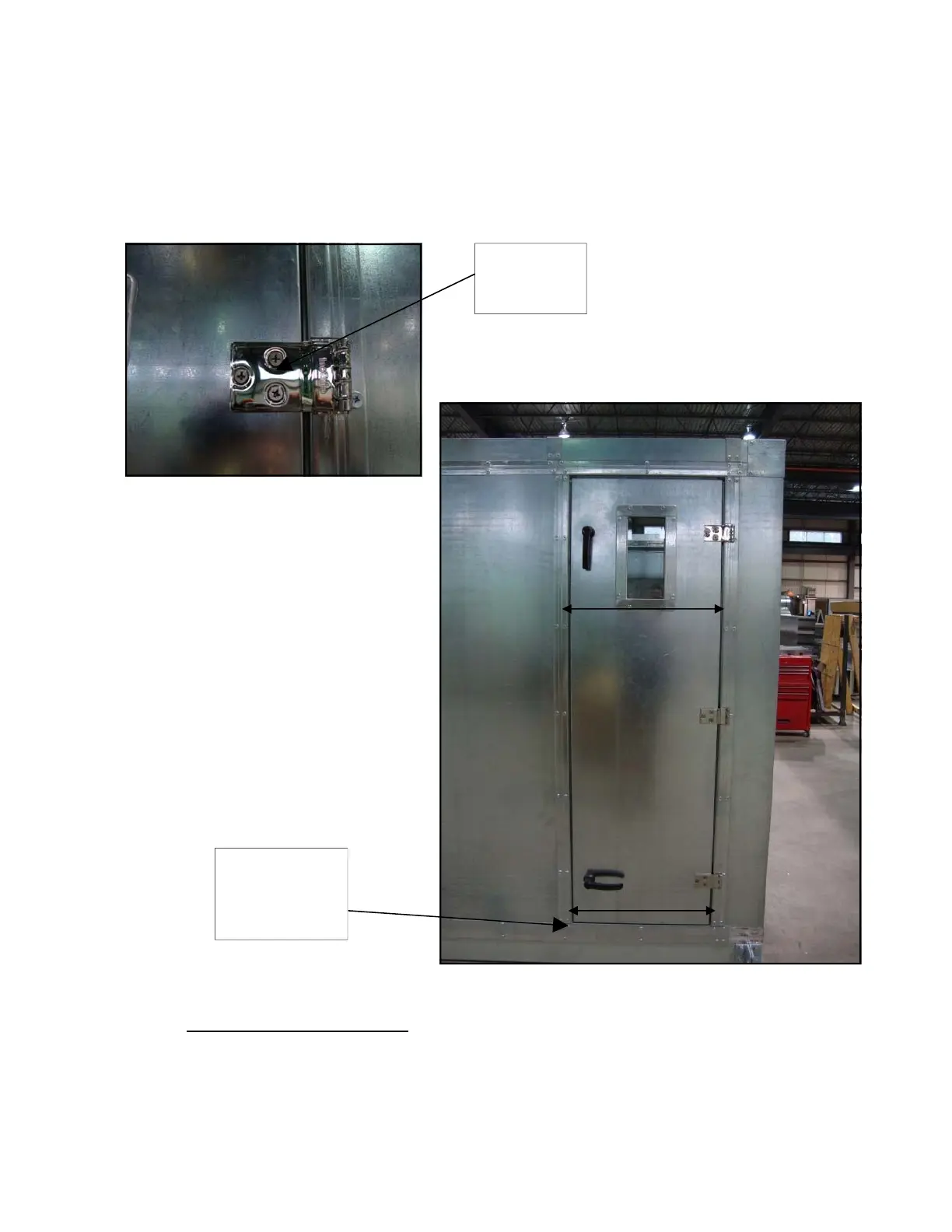

Door Hinge
Door Adjustment
ACCESS DOOR WINDOWS
Access door windows (Viewport) are safe for viewing UV-C germicidal lamps at 254nm
wavelength. UV Transmittance report is readily available upon request.
Loosen three
bolts to adjust
door
Shims can be
used to hold door
until bolts have
been secured
Movement for
door adjustment
Movement for
door adjustment
