7.0 Hardware and Tools needed for Installation

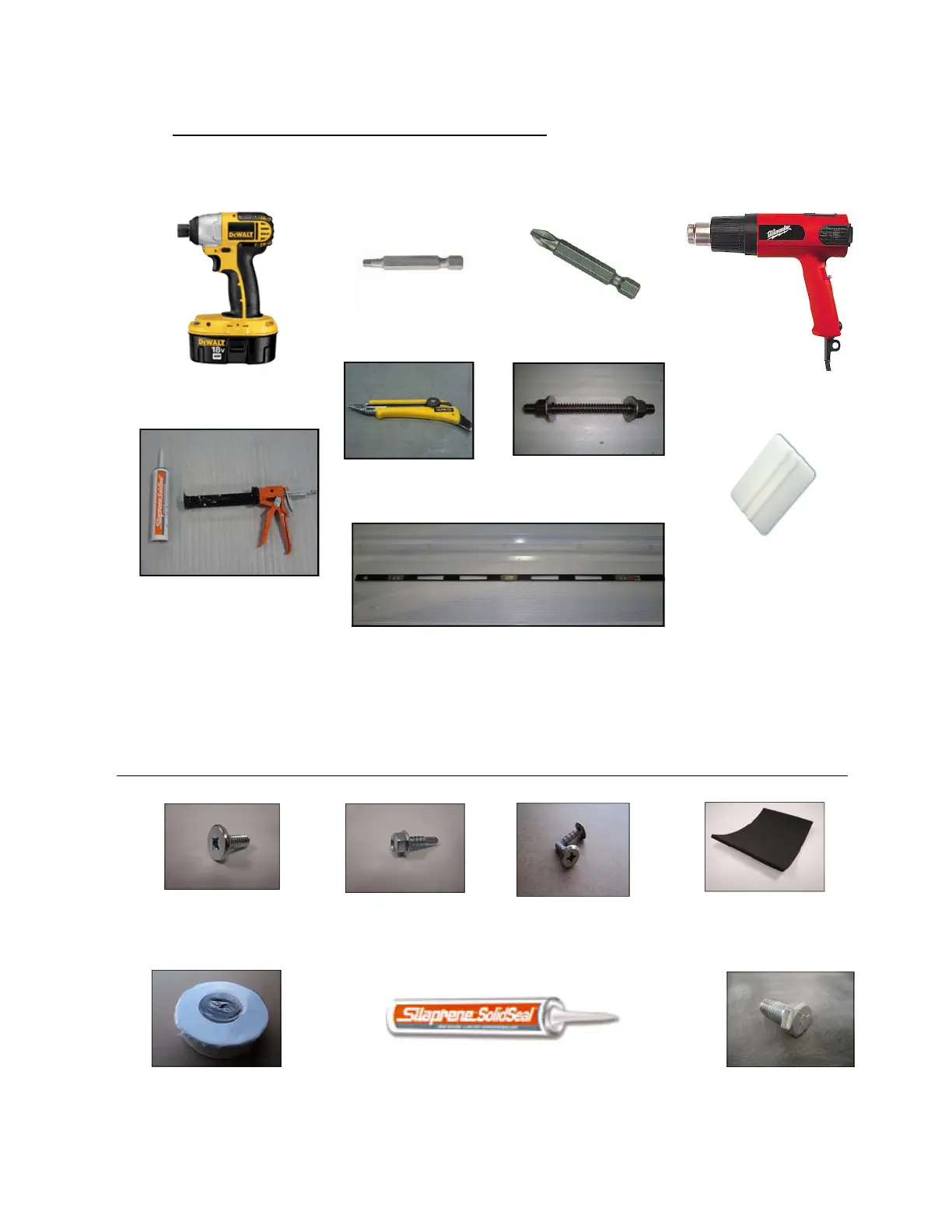

The following tools are needed to provide a proper installation of a modular outdoor Ingenia
unit. These tools are not supplied by Ingenia.
Set of wrenches (3/4”, 15/16”) and Basic Sheet Metal Tools (including Drift pins)
Come Along , Straps (short and long) and Jacks
Threaded Rods with Nuts and Washers
The following hardware will be supplied by Ingenia for the installation of a modular outdoor unit.
VIS FTSQ 1/4”-20X5/8
(Zinc Bolt or Stainless steel)
VIS AP HH 12-3/4”
(Self Drilling Zinc or
Stainless steel screws)
BOUL 1/2-13X1 1/2”
GASK 20100MAA
(3”x5”x1/8” FOAM GASKET)
MEMB TPO 2265 2
2” MEMBRANE
SCEL SOLIDSEAL
(Silaprene Caulking)
VIS SS H-L 1/4 x 3/4
Floor screws HI LO
Coarse Threads
Philips #3
Robertson #3
Squeegee
Impact drill
Heat gun
Level
Caulking gun
(silaprene will be pro-
vided by Ingenia)
Knife
1/2” threaded rod
(approx 12” long)
