8.7 Monorail Operation
Whilst hosting a motor using a monorail, it is important to maintain a 10deg or less angle
from the lifting point of the motor to the monorail or trolley (if provided depending on the
project). In order to prevent injuries and /or damages to components adjacent to the lifting
area, an angle below 10deg is necessary to avoid any swinging of the motor.

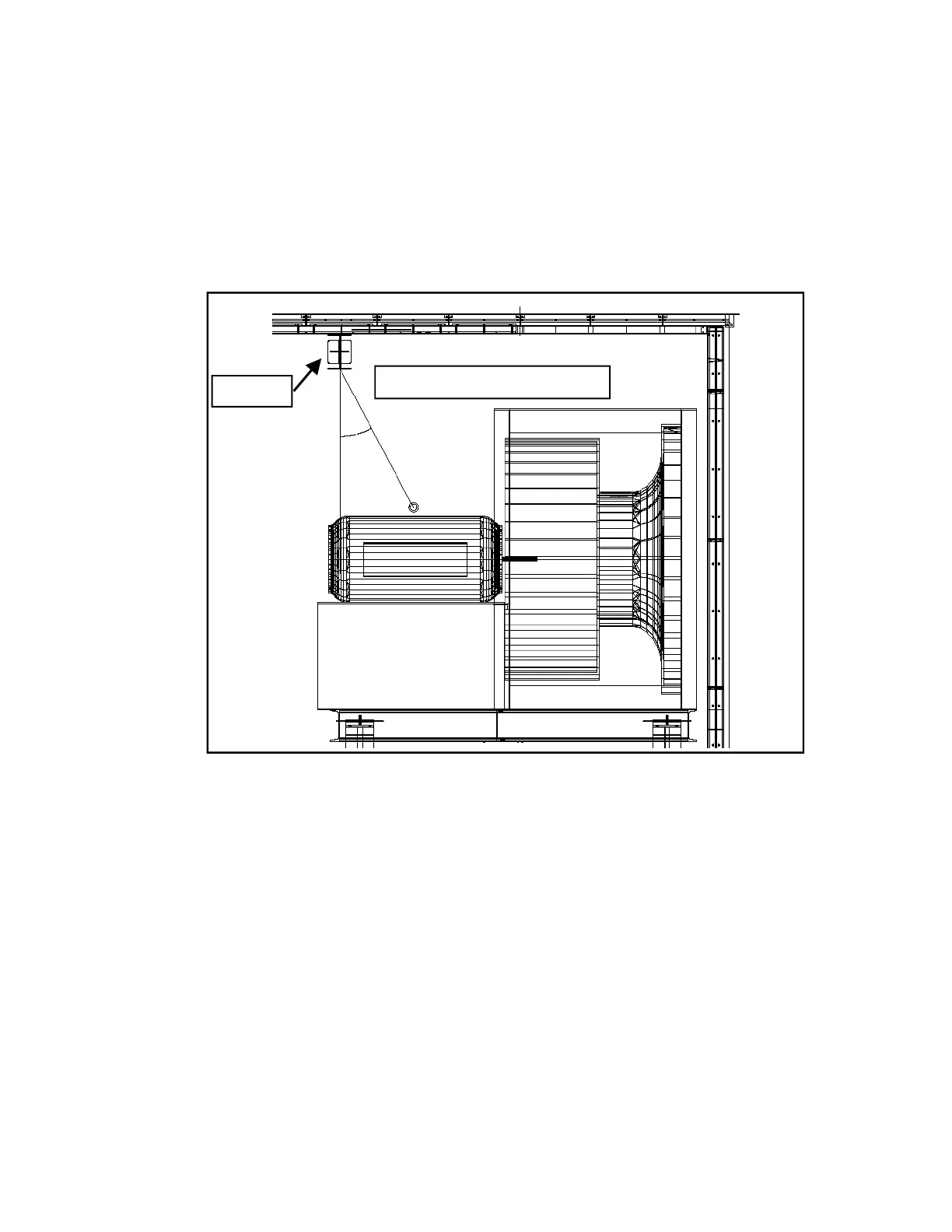

Fig. Angle Motor Hoisting from Monorail
If the initial lift angle is more than 10 deg, the motor will have to be moved closer to the
monorail before being lifted.
Angle to be less than 10 deg
Monorail
