8.5 Filter Clips

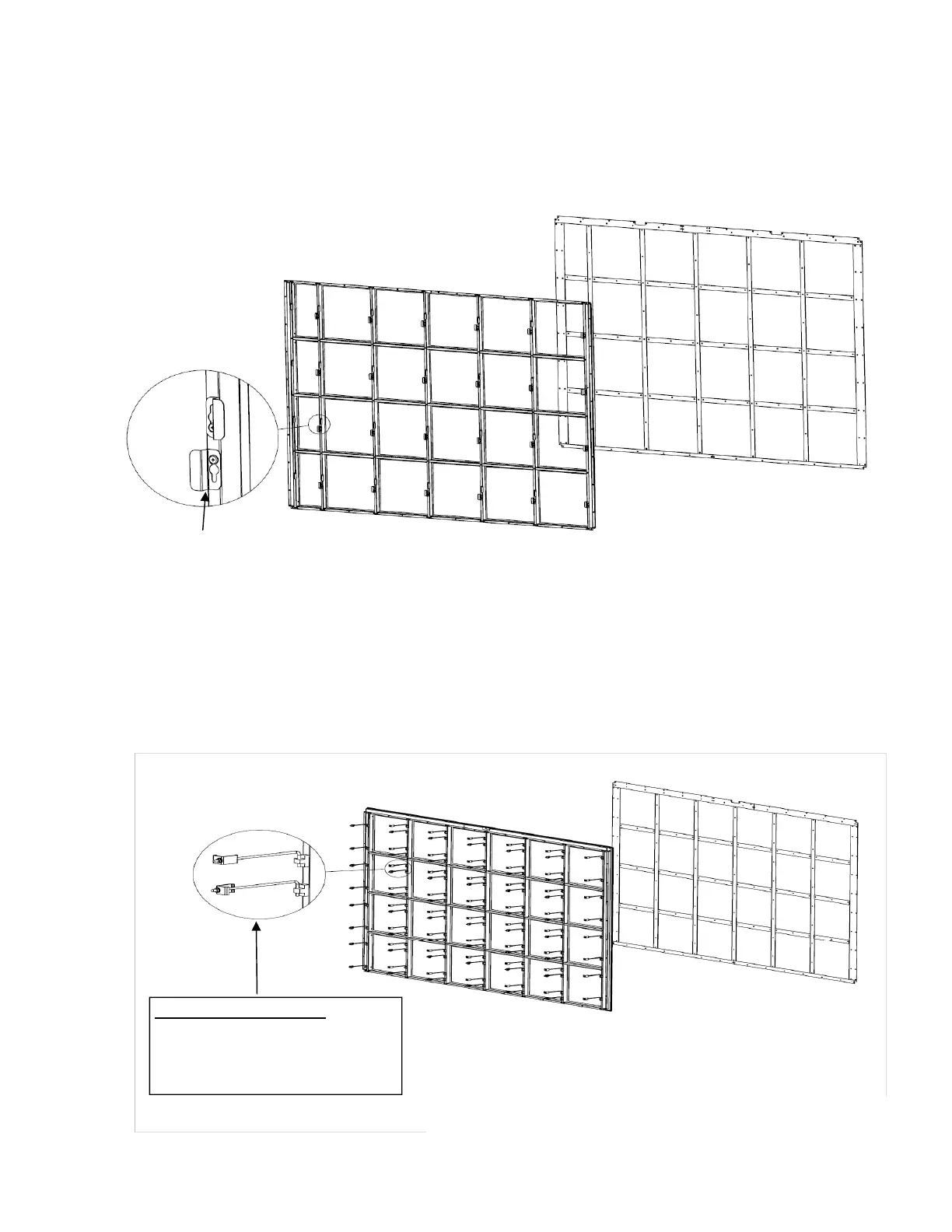

The filter clips used for holding 2”, 4” and cartridge filters vary depending on the arrange
ment of the filters. Below is an illustration of the clips and how they are installed.
Depending on the filters used, the clips can be turned to hold the filters in place. The clips
can be easily fastened to the filter rack using the VIS FTSQ 1/4-20 x 5/8 screws
. The clips
are slotted for easy removal.
HEPA Filter Clips (Swing Bolts)
HEPA filter have swing bolts as filter brackets and can have up to 4 per filter. The fastening
is done by tightening the bolt on the holding bracket and thus applying proper pressure on
the filter to, in turn, make good seal with the filter frame. Proper tightening is required.
Filter Bracket
HEPA FILTER BRACKETS
Use the provide filter brackets referred
to as swing bolts. There are four (4)
filter swing bolts per filter.
