INGENIA CAH - Page 20

B = 1 1/2 P + 2 (INCHES)
PLENUM PRESSURE
(NEGATIVE)
A = 1/2 P + 2 (INCHES)
UNIT DRAIN CONNECTION
NEGATIVE PLENUM PRESSURE
PLENUM PRESSURE
(POSITIVE)
C = P + 2 (INCHES)
UNIT DRAIN CONNECTION
POSITIVE PLENUM PRESSURE
SLOP TO DRAIN
1/8" PER FOOT MINIMUM
FROM COIL DRAIN
RECOMMENDED USE OF
TEES AND PLUGS
HAND-TIGHT PLUG
HAND-TIGHT PLUG (VENT OR PRIMING FUNNEL MAY BE REQUIIRED)

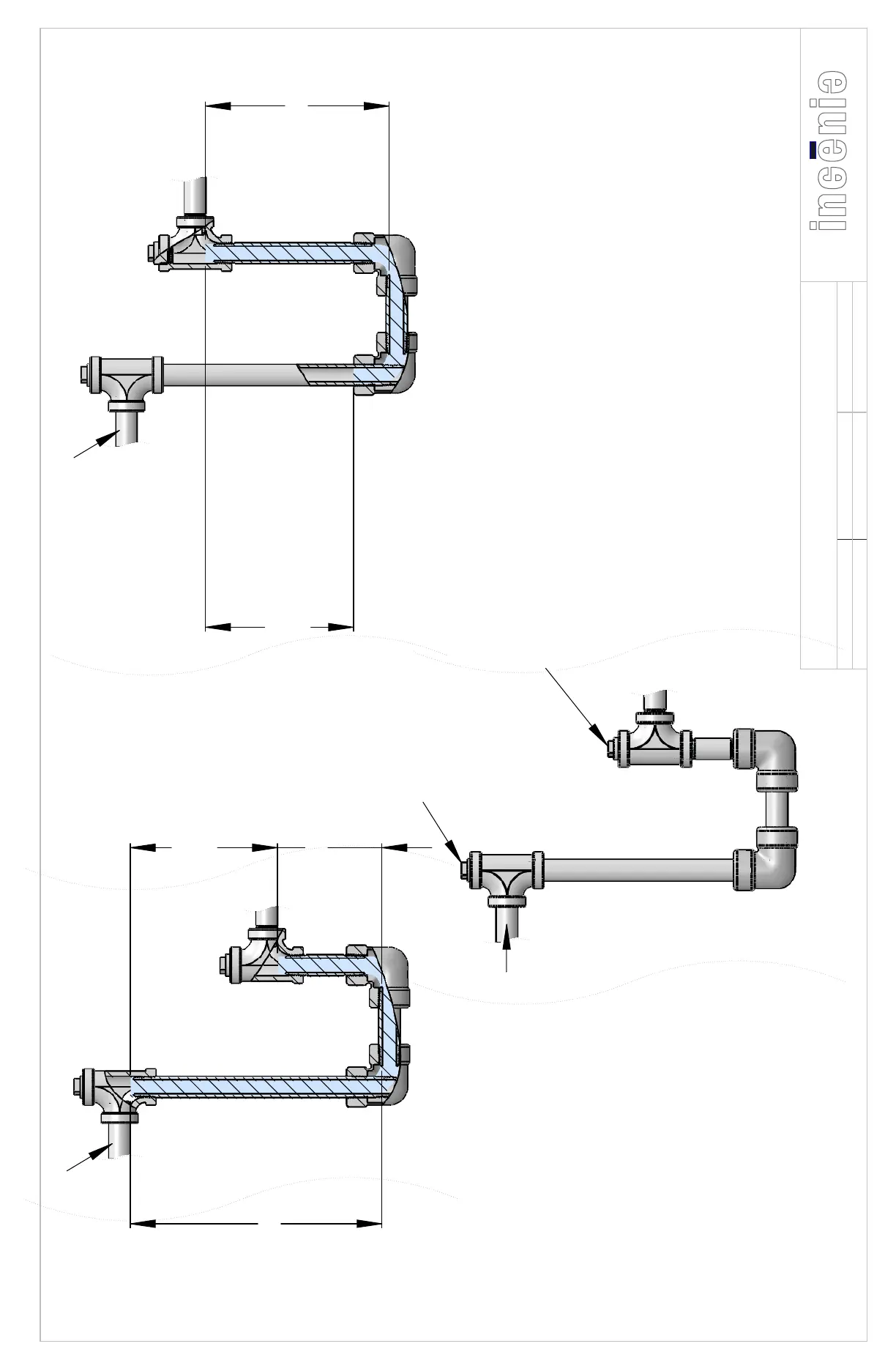

FIGURE B: INDIVIDUAL P-TRAP DESIGN
INDIVIDUAL P-TRAP DESIGN
Detail :
Drawn by : Verified by :
1 of 1
Sheet :
www.ingeniatechnologies.com
Date : 8/9/2016
18101 J.A. BOMBARDIER, MIRABEL, QUÉBEC, CANADA, J7J 2H8
W.N
1
Drawing No :
A.S
