Ingersoll-Rand P425AWIR User Manual

Machine Systems Operating & Maintenance Manual
22442594 115

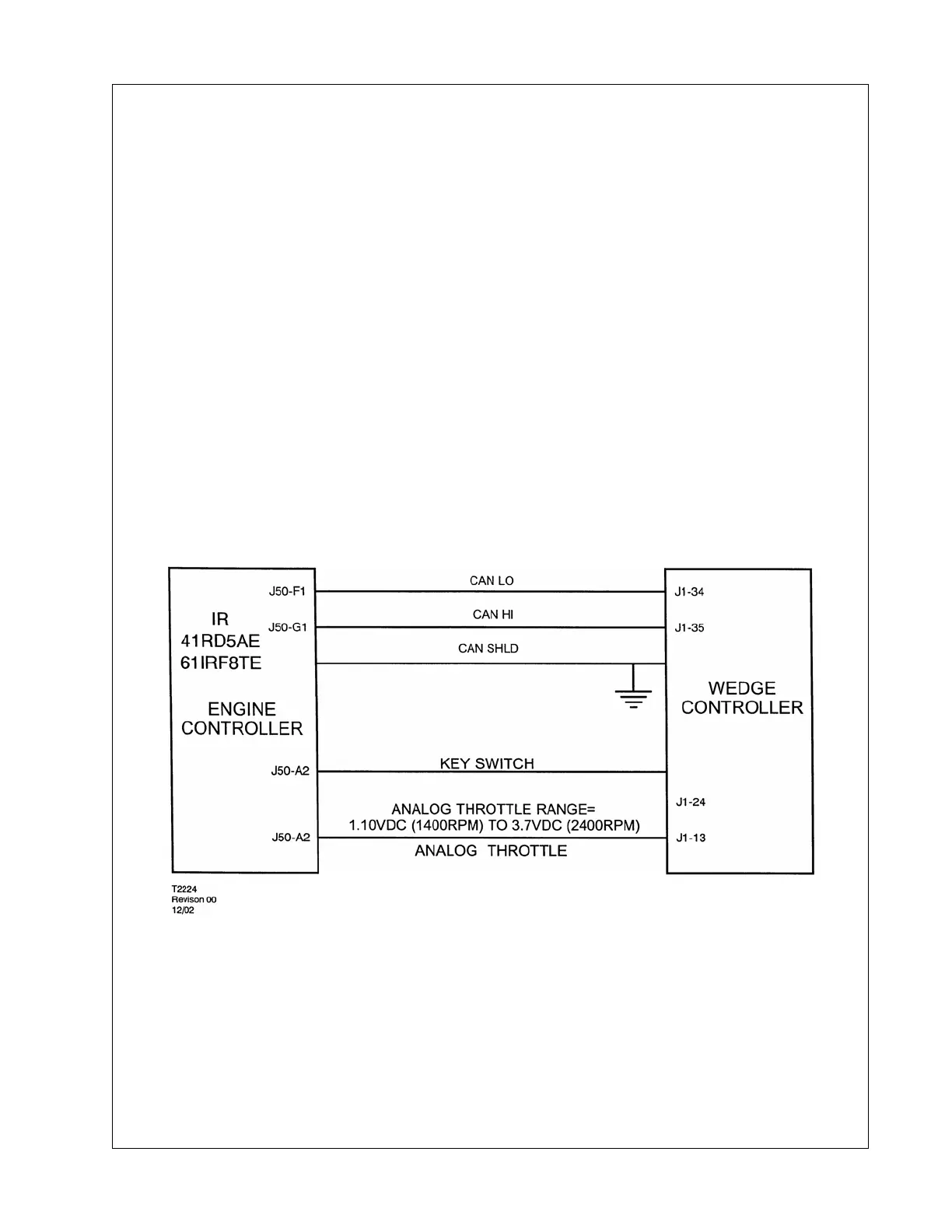

Wedge to Engine Interface - IR Engine
P54 Fuel temp SM Starter motor
P55 Manifold air temp SW1 Spare
P56 Oil pressure SW2 Display scroll
POUT1 Engine key switch SW3 Low fuel shutdown
POUT2 Solenoid, start/run SW4 Switch, service air
POUT3 Comp fault lamp SW5 Air filter rest (option)
POUT4 Engine fault lamp SW6 Spare
POUT5 Start relay SW7 Spare
POUT6 Spare SW8 Switch, start
POUT7 Hour meter TE Transducer exitation
POUT8 Spare WCON Wedge controller
