Operating & Maintenance Manual Operating Instructions
54 22442594

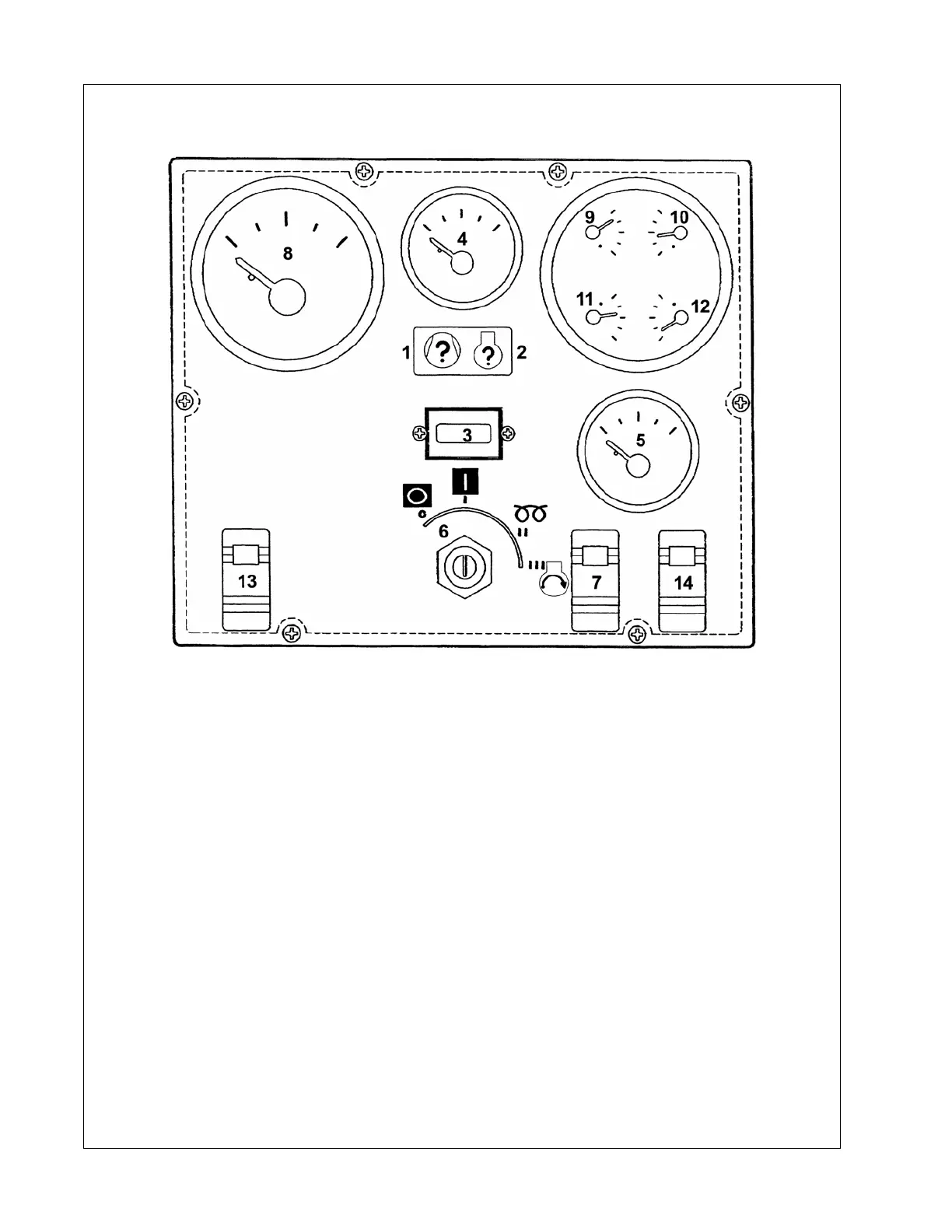

Control Panel
Diagnostic / Auto Shutdown (Standard)
1. Compressor Fault - Needs attention. See Wedge diagnostic panel for more
detail.
2. Engine Fault - Needs attention. See Wedge diagnostic panel for more detail.
3. Hourmeter - Records running time for maintenance.
4. Compressor Discharge Pressure Gauge - Indicates pressure in receiver
tank, psi (kPa).
5. Fuel Level Gauge - Indicates amount of fuel in tank.
Controls (Standard)
6. Power Switch - Flip "ON" to activate systems prior to starting. Flip "OFF" to
stop engine.
7. Service Air Switch - After warm-up, PUSH. Provides full air pressure at the
service outlet.
