14
11. ATTACHMENT DRIVE REVERSE OVERRIDE
SWITCH
Your tractor is equipped with a safety device that
shuts off clutch operated attachments, such as
the mower and snowblower, when the tractor is
driven in reverse.
TO OVERIDE THIS DEVICE: Turn the key to the
left “ON” position.
TO ACTIVATE THIS DEVICE: Turn the key to
the right “OFF” position.
12. DUAL RANGE TRANSAXLE
TO SELECT LOW RANGE: Put travel control
lever in the “NEUTRAL” position.
Stop tractor.
Push range shift lever down and to the left.
Release lever up into “LOW RANGE” notch.
TO SELECT NEUTRAL: Put travel control lever in
“NEUTRAL” POSITION.
Stop tractor.
Push range shift lever down and move lever to
align with the “NEUTRAL” notch and release.
TO SELECT HIGH RANGE: Put travel control
lever in the “NEUTRAL” position.
Stop tractor.
Push range shift lever down and to the right.
Release lever up into the “HIGH RANGE”
notch.

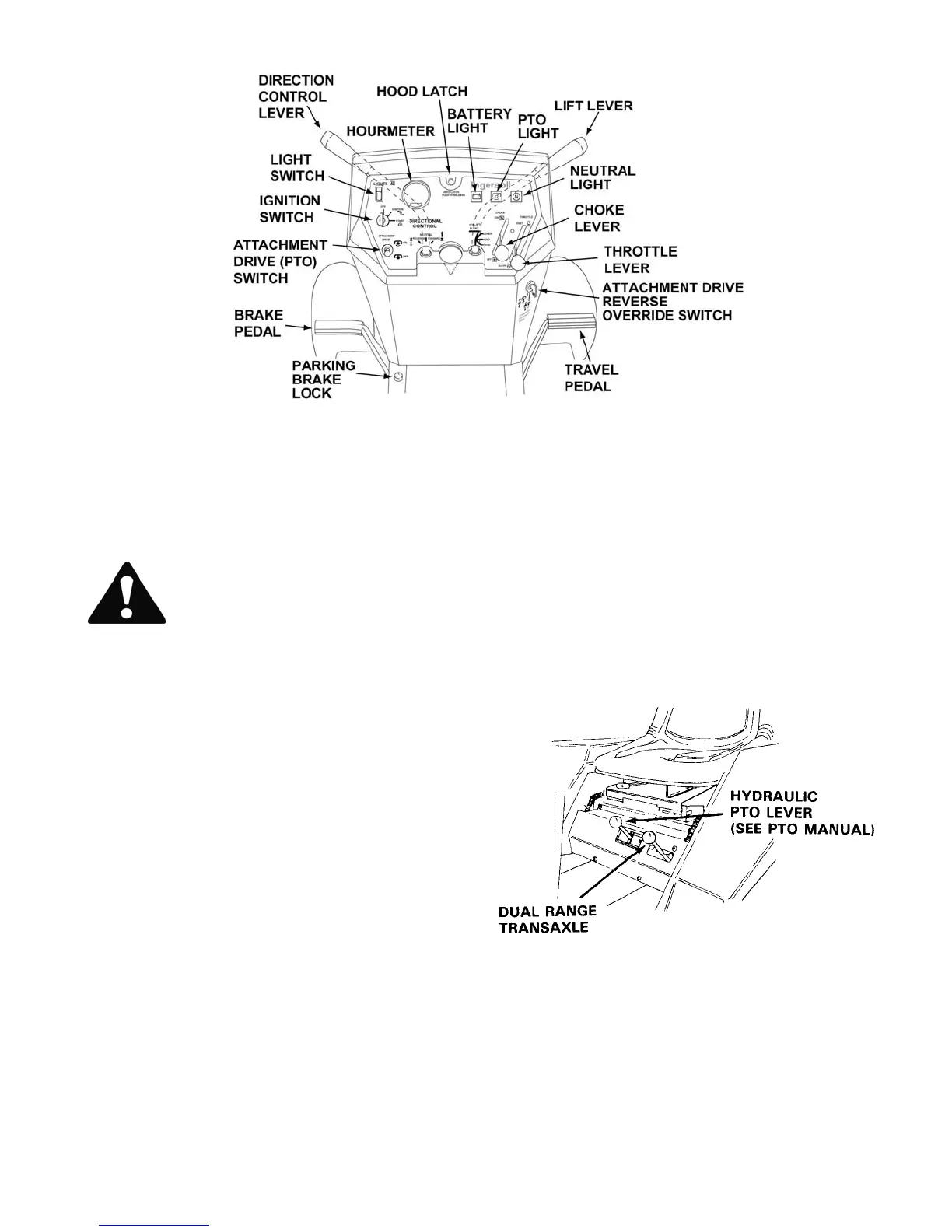

FIGURE 6
FIGURE 5
CAUTION: Do not drive in reverse
unless completely necessary while
your attachment is operating.
