OPERATING PROCEDURE (Operating the Tractor)
Operate the tractor for the first time on a flat area
clear of obstructions and persons. Learn the
operating characteristics of your tractor before trying
the first job.
1. Select the correct gear range for the job.
2. “LOW” range is for all working operations and
hillside use. Always use “LOW” range on hillsides
or inclines.
3. “HIGH” range is for transport only, “HIGH” range
must not be used for hillside operation.
4. If the range shift does not move easily, rotate the
gears.
To rotate the gears:
a. Move the (travel) direction control lever a small
amount into the “FORWARD” position. Press
the foot travel pedal slightly (4200 series).
b. Return the travel control lever to the
“NEUTRAL” position.
IMPORTANT: Completely stop the tractor motion
before changing the range. The
range shift lever must be completely
seated in the “LOW” or “HIGH” range
notch. Gear damage can occur if the
lever is not in the correct position.
5. Push the throttle lever forward until you get the
needed engine speed.
Decrease engine speed during operation for
maximum fuel efficiency. Do not cause engine
lugging. Lugging will cause more than normal heat
and damage to the engine.
6. TO USE FORWARD TRAVEL:
a. Depress the (travel) direction control lever
slightly and move it from the “NEUTRAL”
position toward the “FORWARD” position. Press
the foot travel pedal down for desired speed
(4200 series).
b. When you reach the correct speed, release the
travel lever (4000 series).
c. Release the foot travel pedal to stop (4200
series). Return the travel control lever to the
“NEUTRAL” position to stop (4000 series).
d. Actuate the brake pedal if the tractor does not
stop.
7. TO USE REVERSE TRAVEL:
a. Depress the (travel) direction control lever
slightly and move it from the “NEUTRAL”
position toward the “REVERSE” position. Press
the foot travel pedal for desired speed (4200
series). Do not travel at full speed in reverse.
b. Release the travel foot pedal to stop (4200
series). Return the travel control lever to the
“NEUTRAL” position to stop (4000 series).
c. Actuate the brake pedal if the tractor does not
stop.
Always be careful and look behind when you drive
in reverse.
Do not travel in reverse down a hill or ramp. Use
reverse travel to move up a hill or ramp. Always
use forward travel when you come down a hill or
ramp.
CAUTION: Use care when pulling
loads or using heavy equipment.
a. Use only approved drawbar hitch
points.
b. Limit loads to those you can safely
control.
c. Do not turn sharply. Use care
when backing.
d. Use counterweights or wheel
weights when suggested in the
owner’s manual.
CAUTION: Do not stop or start
suddenly when going uphill or
downhill. Mow down the face of
steep slopes; never across or up the
face. (This ANSI rule modified)

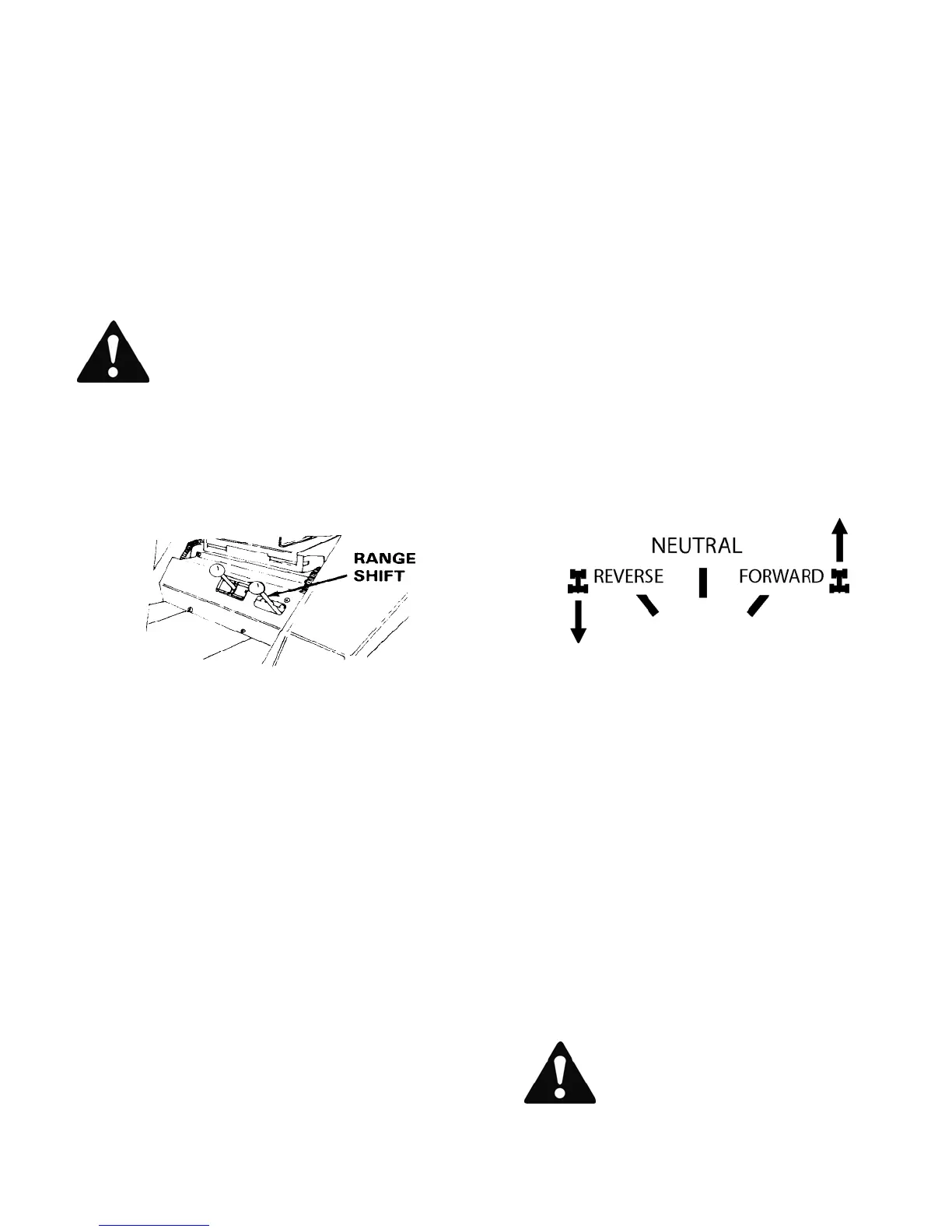

FIGURE 10
