35
CHASSIS LUBRICATION
Apply grease after every 25 HOURS of operation
to the:
a. front wheel spindles
NOTE: Lift front of tractor to permit grease to
flow from top and bottom of spindle.
b. front wheel bearings
NOTE: Remove dust caps from front wheel
hubs before greasing front wheel bearings. The
trapped air behind the dust caps can prevent the
full lubrication of the bearings.
c. axle pivot pin
d. steering gear - apply a small amount of grease
to the gear teeth
e. lift shaft
Use number 1 multi-purpose grease (Lithium
Base) for all lubrication fittings. Use as many
strokes as required, until you see grease pushing
out of assembly.
Always wipe dirt from fitting before applying the
grease gun.

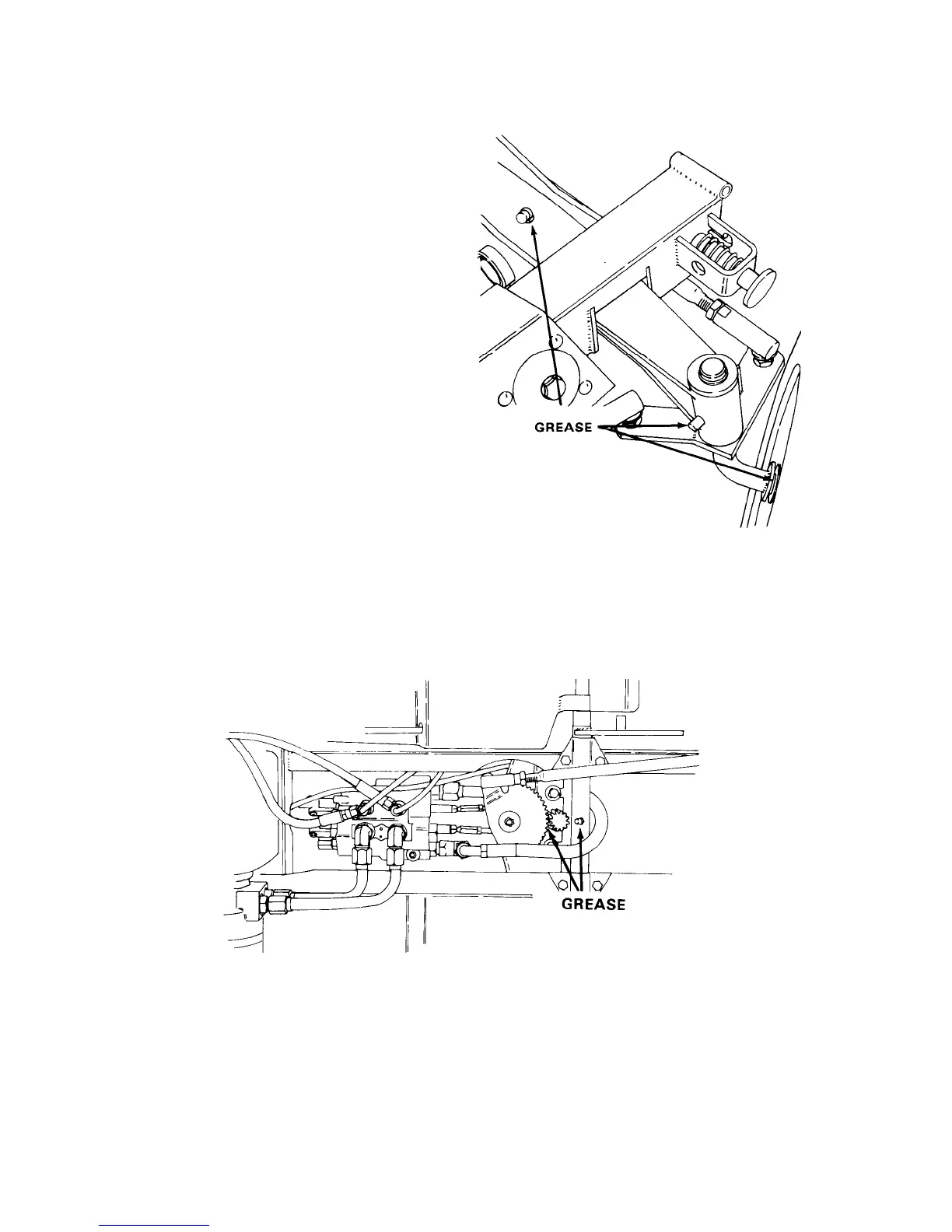

FIGURE 28
Front Wheel Spindle Bearings and Axle Pivot Pin
FIGURE 29 Steering Gear and Lift Shaft
