INIM Electronics Nexus - Technical Description; Package Contents; Specifications; Component Identification

Nexus
6 Technical description
IN THE PACKAGE The communicator package includes:
• Nexus board, in plastic enclosure
• remote antenna (except for Nexus/3GP)
• batteries (only for Nexus/3GP)
• manual (this document)
3Technical description
Model Nexus Nexus/G Nexus/3GU Nexus/3GP
Voltage
from 9 to 16V
Current draw
during standby
90mA 70mA
maximum 900mA 600mA
Antenna
remote GSM with 3m of cable and
magnetic base
remote GSM-UMTS
cable 2m, SMA-Male
connector (50Ohm
impedance) and
magnetic base
dipole GSM-UMTS,
SMA-Male connector
(impedance 50Ohm),
inserted
Batteries
type
//
2 x AA, alkaline
estimated life 2 years
Environmental
operating con-
ditions
temperature
from -10 to +40°C
relative humid-
ity
75% without condensation
Environmental class II
Dimensions of enclosure
(W x H x D)
107 x 59 x 21mm 108 x 64 x 24mm 196 x 111 x 28mm
Weight including enclosure 60g 77g
250g
(batteries included)

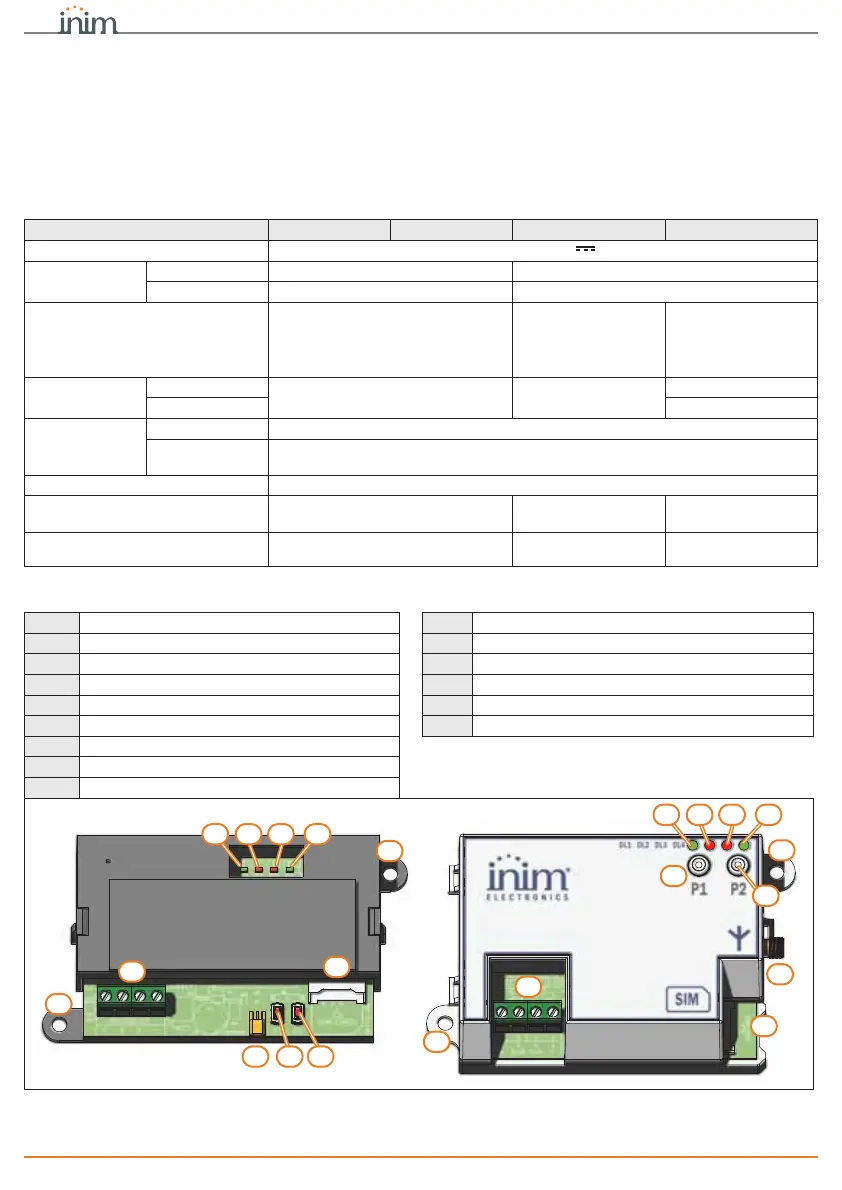

A Terminal board J Antenna
B Antenna connector K Mounting screw hole
C P1 button L Cable entry
D P2 button M Hole for ant-dislodgement device
E SIM card housing (non included) N Hook with screw for lid closure
F LED DL1 - Communication (green) O Batteries
G LED DL2 Emergency (red)
H LED DL3 - Fault (red)
I LED DL4 - Connection (green)
A
E
K
K
F HG I
B C D
A
E
K
K
F HG I
C
D
B
