6.1 Mounting the SmartLine/8Z expansion board (accessory item)
The SmartLine/8Z zone expansion board can be used with the SmartLine020-4 and SmartLine036-4
models. The SmartLine020-4 control panel can manage 2 SmartLine/8Z boards (8 zones each board)
bringing the total number of zones to 20, while the SmartLine036-4 control panel can manage up to 36
SmartLine/8Z boards, bringing the total number of zones to 36.
The zone expansion board also provides a 1A supervised output, the operating principles of which can be
defined during the system configuration phase.
The extinguishant module is packed in a separate cardboard box. Together with the extinguishant module
(IN020), you will find a plastic bag containing:
• Pin header for the extinguishant module to SmartLine motherboard connection
•Mounting plate
•Screws
• EOL resistors and diodes

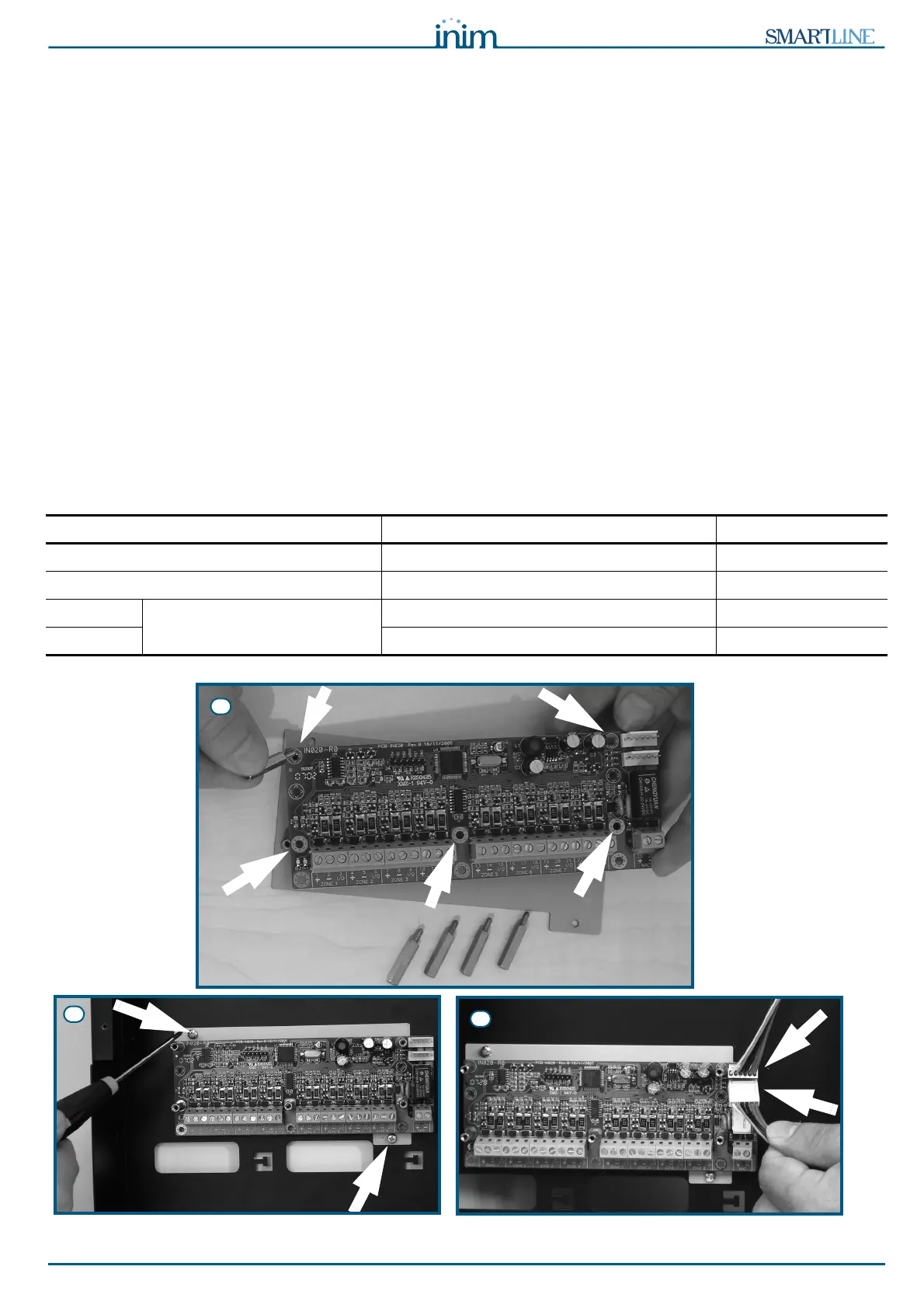

Figure 11 - Mounting the expansion board - 1
nr. SmartLine/8Z board Connections Zones
1 to SmartLine motherboard 5 - 12
2 to SmartLine/8Z board n.1 13 - 20
3
for SmartLine036-4 only
to SmartLine/8Z board n.2 21 - 28
4 to SmartLine/8Z board n.3 29 - 36
