1.2 External View
Promi SD™
Dimensions: 60 x 26 x 16 (mm)

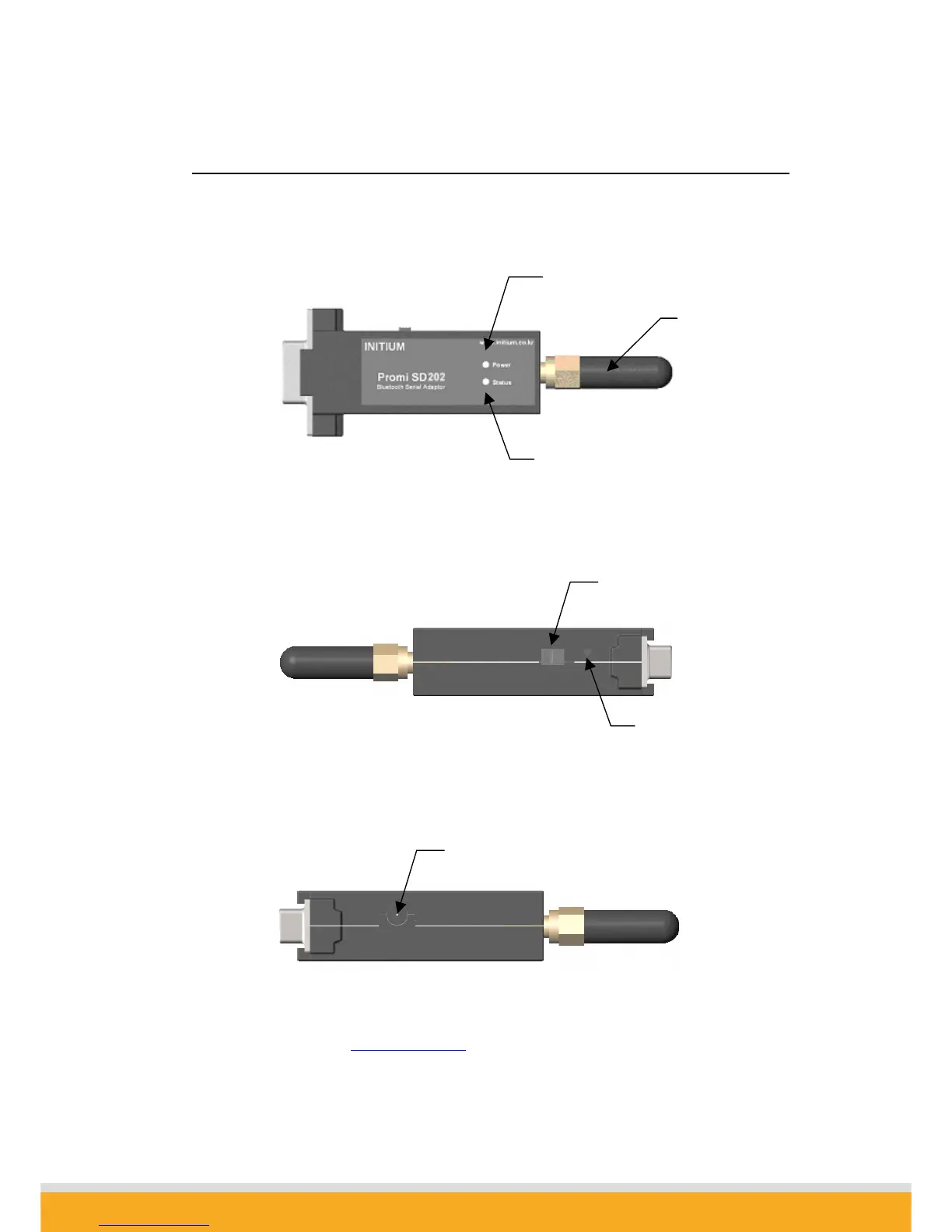

Figure 1.2.1 Promi SD
TM
top view
Figure 1.2.2 Promi SD
TM
right side view
Figure 1.2.3 Promi SD
TM
left side view
Please refer to the 1.5 Power Supply
section for Promi SD™ power options
STATUS LED
STUB ANTENNA
P/N: PSD00-00040
POWER LED
ON/OFF SWITCH
HARD RESET SWITCH
DC Connector
