Section 4: Device Description

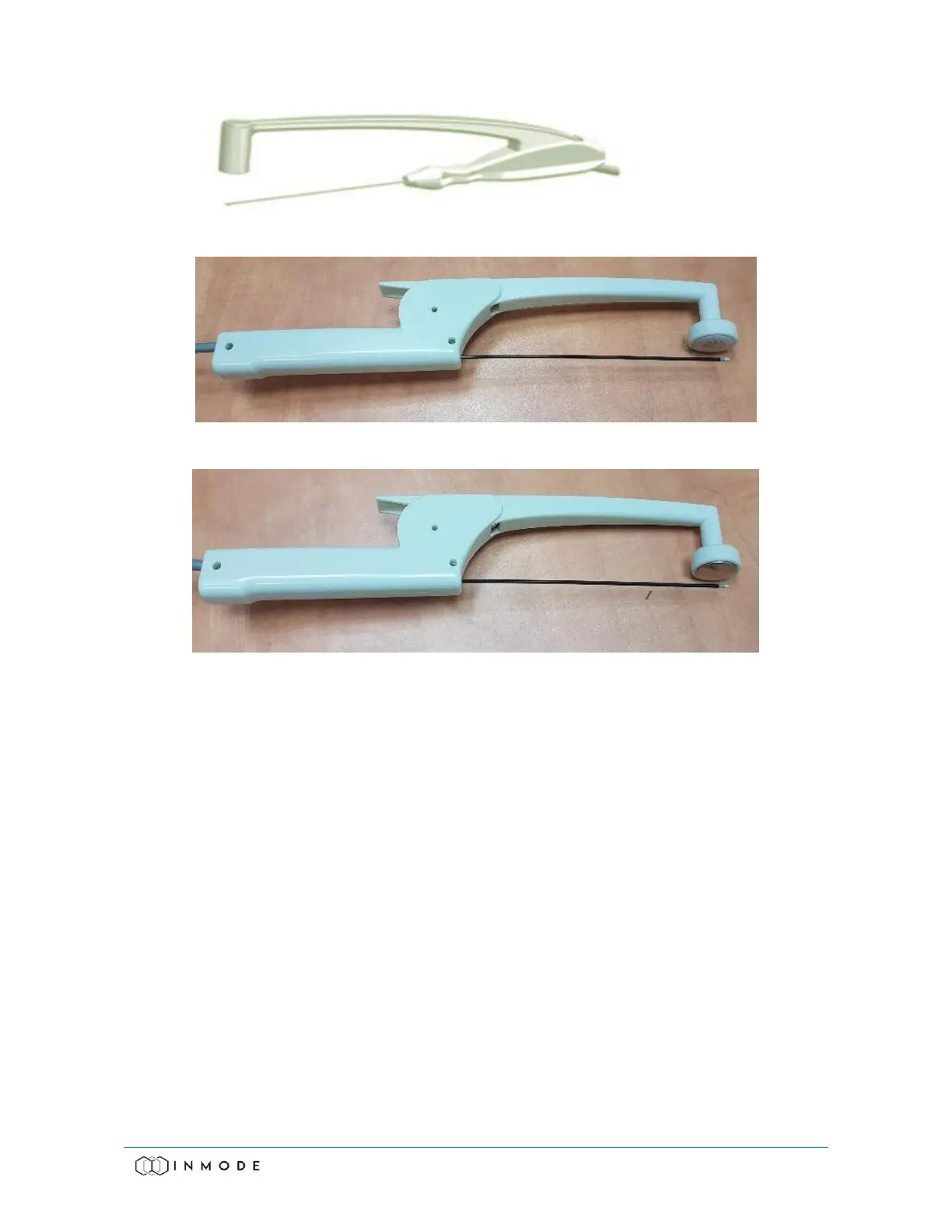

Figure 4-5: Handpiece HP101306A
Figure 4-6: Handpiece HP172206A
Figure 4-7: Handpiece HP172246A
▪ The Handpiece active internal electrode is an insulated metal
tube with conductive area at the distal part, but not at the tip.
For added safety, at the end of the electrode there is an
isolated blunt plastic tip which is not conductive.
▪ The internal electrode has an embedded temperature sensor
to monitor the tissue temperature.
▪ The handpiece has a large area return electrode with
embedded temperature sensor to monitor the skin
temperature.
▪ Has a length of 250cm (100”).
▪ It is connected to the front control panel of the system.
