CLS FUSION Montage- und Betriebsanleitung
CLS FUSION Mounting and Operating Instructions
13
5.3. CLS FUSION - 12 Ah / 24 Ah
Nominal voltage: 230V AC +/-10%
Max. Input voltage: 2.2A
Mains Fuse: 5AT, IR=1500A
Output voltage: 24V DC +/-20%
Amb. temp. range: -5°C until +25°C
Final circuit: 4 (max.8)
Max. load: 3A per nal circuit
Final circuit fuses: 5AT, IR=1500A
Protection class: I
Protection catergory: IP20
Max. cross section for:
Mains: 4
LSA: 4
Final circuits: 2.5
Voltfree signalling contacts: 1.5
12Ah Device 24 Ah Device
Weight: approx.17kg approx.25kg
Dimensions H x W x D(mm): 510x280x146 615x280x146
Cabinet options:
Fire protection cabinet BRS40: 1198 x 648 x 449
Sheet steel wall cabinet IP20: 800 x 400 x 210
Sheet steel wall cabinet IP54: 800 x 400 x 210
12Ah Device 24 Ah Device
Battery: 24V/12Ah 24V/24 Ah
Battery fuse: 30A, IR=1000A
Converter fuse: 30A, IR=1000A
Battery power:
12Ah Device 24 Ah Device
1h 7.4A 7.0A
2h 3.9A 7.0A
3h 2.8A 5.9A
8h 1.2A 2.6A
Battery power without aging reserve.

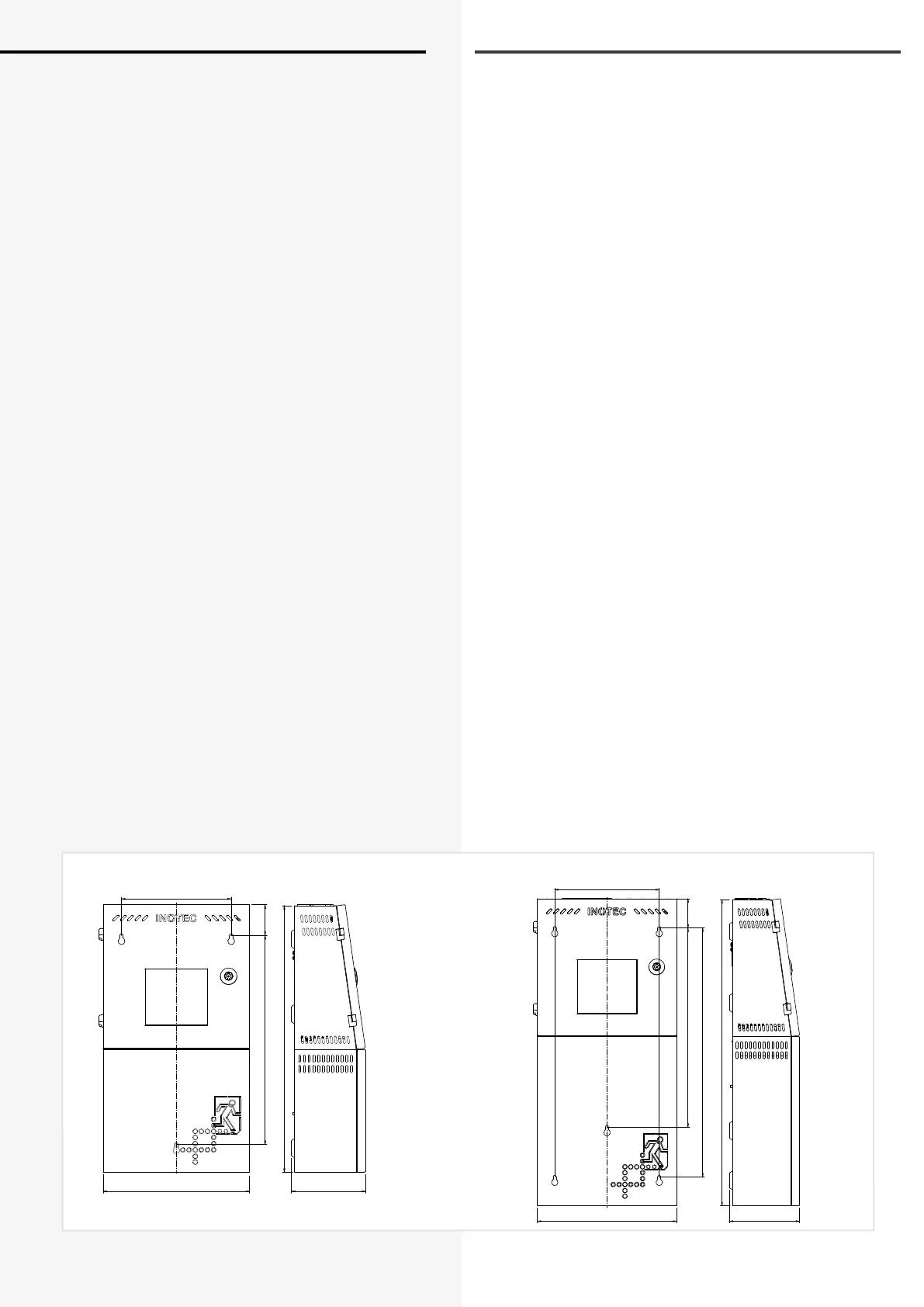

Dimensioned drawing:
5.3. CLS FUSION - 12 Ah / 24 Ah
Anschlussspannung: 230V AC +/-10%
max. Eingangsstrom: 2,2A
Netzsicherung: 5AT, AV=1500A
Ausgangsspannung: 24V DC +/-20%
Zul. Umgebungstemperatur: -5°C bis +25°C
Endstromkreise: 4 (max.8)
Max. Belastung : 3A je Stromkreis
Endstromkreissicherung: 5AT, AV=1500A
Schutzklasse: I
Schutzart: IP20
max. Anschlussquerschnitt (mm²) für:
Netzzuleitung: 4
Lichtschalterabgänge: 4
Endstromkreise: 2,5
Meldekontakte: 1,5
12Ah Anlage 24 Ah Anlage
Gewicht: ca.17kg ca.25kg
Abmessung H x B x T (mm): 510x280x146 615x280x146
Schrankvariante:
Brandschutzschrank BRS40:
1198 x 648 x 449
Stahlblechwandschrank IP20: 800 x 400 x 210
Stahlblechwandschrank IP54: 800 x 400 x 210
12Ah Anlage 24 Ah Anlage
Batterie: 24V/12Ah 24V/24 Ah
Batteriesicherung: 30A, AV=1000A
Wandlersicherung: 30A, AV=1000A
Entnahmeströme für eine
Nennbetriebsdauer von:
12Ah Anlage 24 Ah Anlage
1h 7,4A 7,0A
2h 3,9A 7,0A
3h 2,8A 5,9A
8h 1,2A 2,6A
bei den Entnahmeströmen ist eine Alterungsreserve zu
berücksichtigen.
Maßbild:
280 146
615
60400
500
210
280 146
510
210
60400
12 Ah 24 Ah
