CLS FUSION Montage- und Betriebsanleitung
CLS FUSION Mounting and Operating Instructions
15
5.5. CLS FUSION - Power - 24 / 48 Ah
Nominal voltage: 230V AC +/-10%
Max. Input voltage: 3.5A
Mains Fuse: 5AT, IR=1500A
Output voltage: 24V DC +/-20%
Amb. temp. range: -5°C until +25°C
Noise level 48Ah Power: 18dB
Final circuit: 4 (max.8)
Max. load: 3A per nal circuit
Final circuit fuses: 5AT, IR=1500A
Protection class: I
Protection catergory: IP20
Max. cross section for:
Mains: 4
LSA: 4
Final circuits: 2.5
Voltfree signalling contacts: 1.5
24 Ah Power 48 Ah Power
Weight: approx.39kg approx.54kg
Cabinet options:
Fire protection cabinet BRS40: 1198 x 648 x 449
Sheet steel wall cabinet IP20: 800 x 400 x 210
Sheet steel wall cabinet IP54: 800 x 400 x 210
24 Ah Power 48 Ah Power
Battery: 24V/24 Ah 24V/48 Ah
Battery fuse: 30A, IR=1000A
Converter fuse: 30A, IR=1000A
Battery power:
24 Ah Power 48 Ah Power
1h 15.5A 13.4A
2h 8.7A 13.4A
3h 6.1A 12.5A
8h 2.8A 5.9A
Battery power without aging reserve.

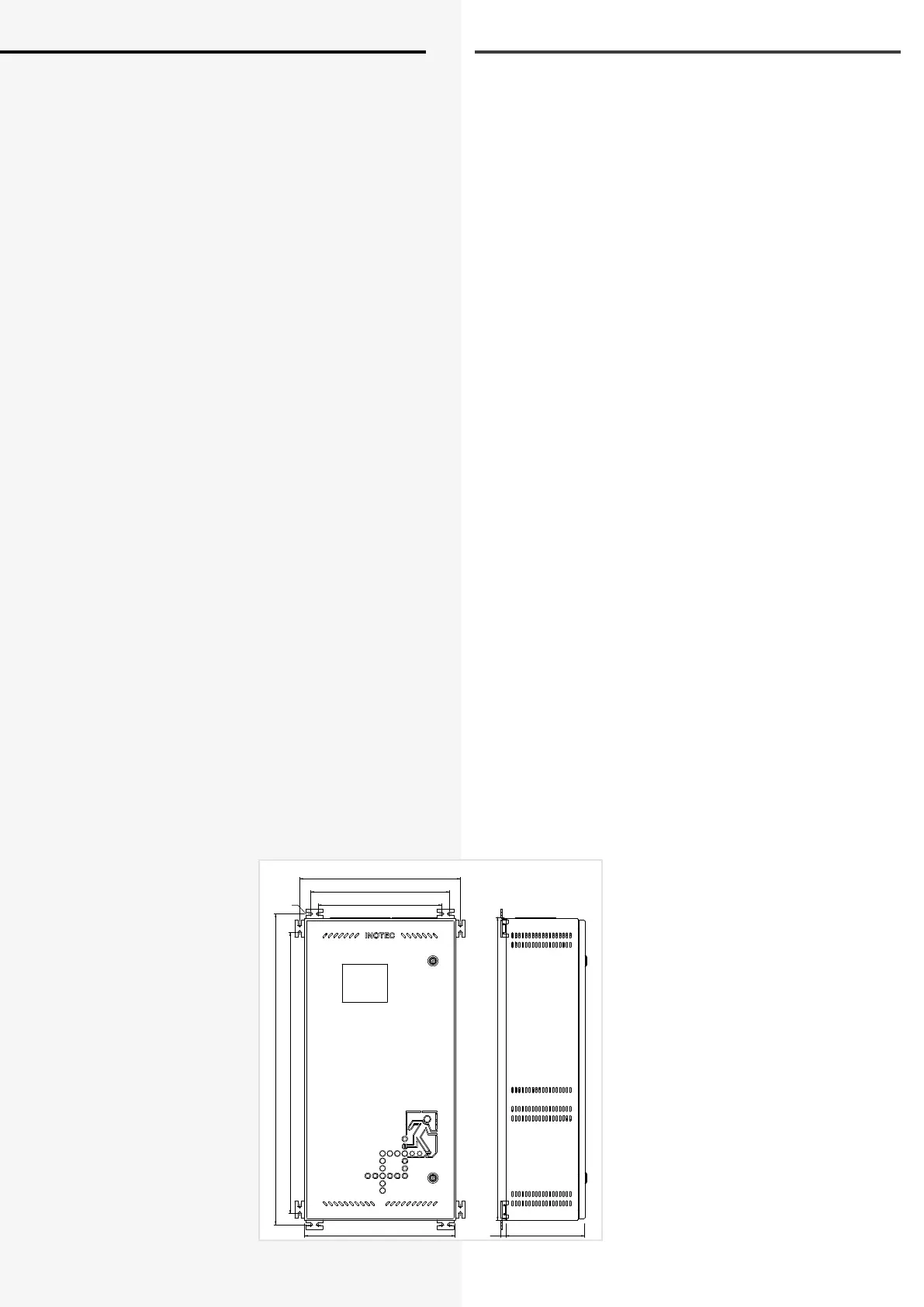

Dimensioned drawing:
5.5. FUSION - Power - 24 / 48 Ah
Anschlussspannung: 230V AC +/-10%
max. Eingangsstrom: 3,5A
Netzsicherung: 5AT, AV=1500A
Ausgangsspannung: 24V DC +/-20%
Zul. Umgebungstemperatur: -5°C bis +25°C
Geräuschpegel 48Ah Power: 18dB
Endstromkreise: 4 (max.8)
Max. Belastung : 3A je Stromkreis
Endstromkreissicherung: 5AT, AV=1500A
Schutzklasse: I
Schutzart: IP20
max. Anschlussquerschnitt (mm²) für:
Netzzuleitung: 4
Lichtschalterabgänge: 4
Endstromkreise: 2,5
Meldekontakte: 1,5
24 Ah Power 48 Ah Power
Gewicht: ca.39kg ca.54kg
Schrankvariante:
Brandschutzschrank BRS40: 1198 x 648 x 449
Stahlblechwandschrank IP20: 800 x 400 x 210
Stahlblechwandschrank IP54: 800 x 400 x 210
24 Ah Power 48 Ah Power
Batterie: 24V/24 Ah 24V/48 Ah
Batteriesicherung: 30A, AV=1000A
Wandlersicherung: 30A, AV=1000A
Entnahmeströme für eine
Nennbetriebsdauer von:
24 Ah Power 48 Ah Power
1h 15,5A 13,4A
2h 8,7A 13,4A
3h 6,1A 12,5A
8h 2,8A 5,9A
bei den Entnahmeströmen ist eine Alterungsreserve zu
berücksichtigen
Maßbild:
330
370
430
ø8,5
400 21012
800
750
830
