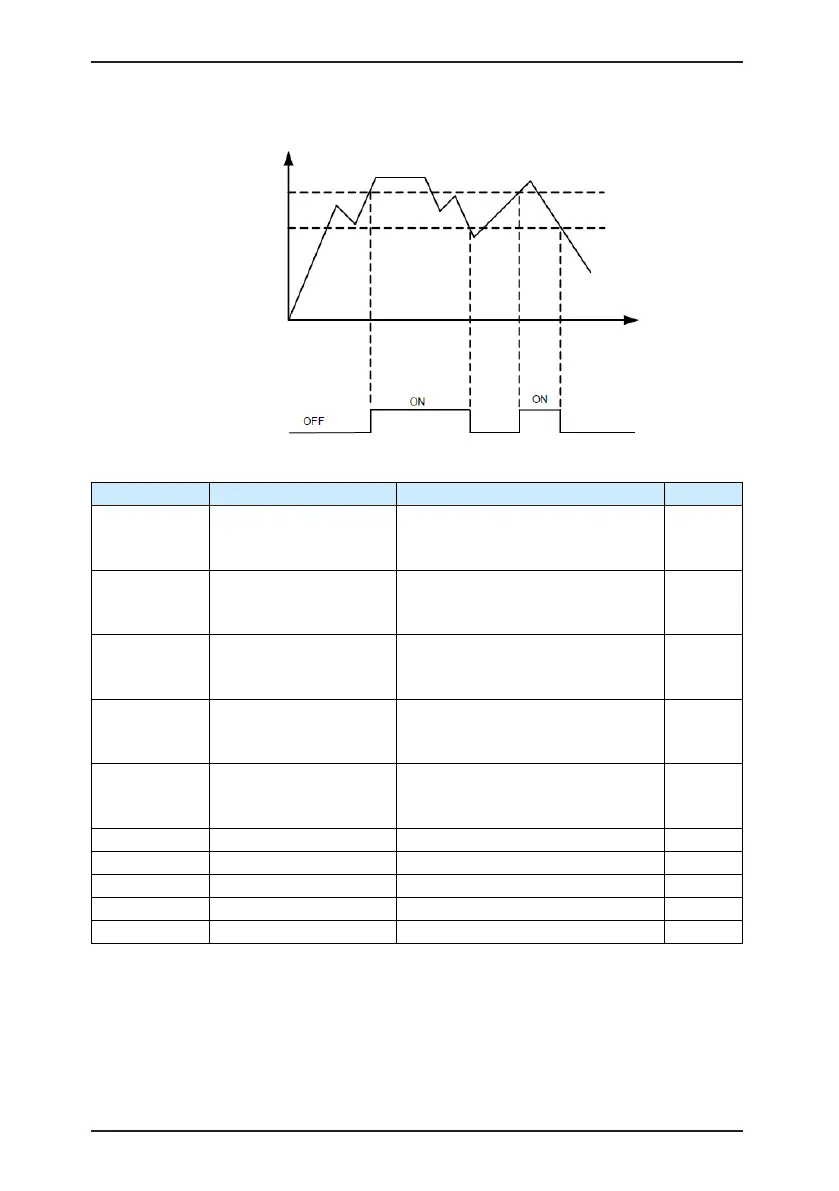

Figure 6-33 Relationship of AI input voltage and corresponding DI status
Time
7 VDC
3 VDC
AI input
voltage
AI terminal state
Function Code Parameter Name Setting Range Default
A1-11 VDO1 function selection
0: Short with physical DIx internally
1–40: Refer to function selection of
physical DO in group F5.
0
A1-12 VDO2 function selection
0: Short with physical DIx internally
1–40: Refer to function selection of
physical DO in group F5.
0
A1-13 VDO3 function selection
0: Short with physical Dix internally
1–40: Refer to function selection of
physical DO in group F5.
0
A1-14 VDO4 function selection
0: Short with physical Dix internally
1–40: Refer to function selection of
physical DO in group F5.
0
A1-15 VDO5 function selection
0: Short with physical Dix internally
1–40: Refer to function selection of
physical DO in group F5.
0
A1-16 VDO1 output delay 0.0–3600.0s 0.0s
A1-17 VDO2 output delay 0.0–3600.0s 0.0s
A1-18 VDO3 output delay 0.0–3600.0s 0.0s
A1-19 VDO4 output delay 0.0–3600.0s 0.0s
A1-20 VDO5 output delay 0.0–3600.0s 0.0s
