8.3 Recommended Cable Diameter and Installation Dimensions of Power
Terminals
• The recommended data and models are for reference only. The cable diameter you select
cannot be larger than the size in the following gures.
• The prerequisite of cable selection is as follows: Under ambient temperature of 40°C in steady
state, for the recommended diameters of the insulation copper conductor or cable, see section
12.4 of the IEC 60204-1-2005

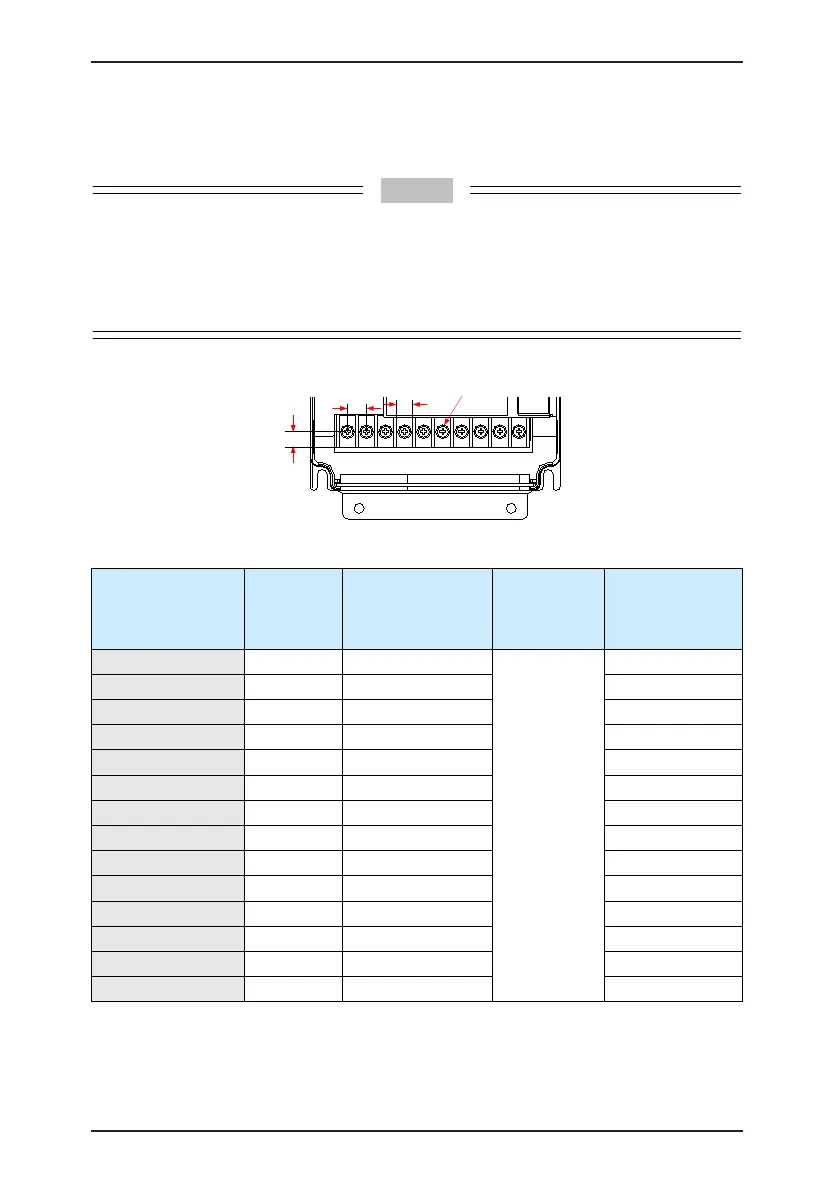

Figure 8-3 Dimensions of power terminals of the MD380 (size B)
8
9.5
8
M3.5 combination screw
Table 8-3 Recommended cable diameter and cable lug model (size B)
AC Drive Model
Rated Input
Current
(A)
Recommended
Output Power
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380S0.4GB 5.40 0.75
0.87
TNR0.75-4
MD380S0.7GB 8.20 0.75 TNR0.75-4
MD380S1.5GB 14.00 1.5 TNR1.5-4
MD380S2.2GB 23.00 2.5 GTNR2.5-4
MD380-2T0.4GB 3.40 0.75 TNR0.75-4
MD380-2T0.75GB 5.00 0.75 TNR0.75-4
MD380-2T1.1GB 5.80 0.75 TNR0.75-4
MD380-2T2.2GB 10.50 1.5 TNR1.5-4
MD380T0.7GB 3.40 0.75 TNR0.75-4
MD380T1.5GB 5.00 0.75 TNR0.75-4
MD380T2.2GB 5.80 0.75 TNR0.75-4
MD380-5T0.7GB 3.40 0.75 TNR0.75-4
MD380-5T1.5GB 5.00 0.75 TNR0.75-4
MD380-5T2.2GB 5.80 0.75 TNR0.75-4
