Selection and Dimensions MD380 User Manual
- 268 -

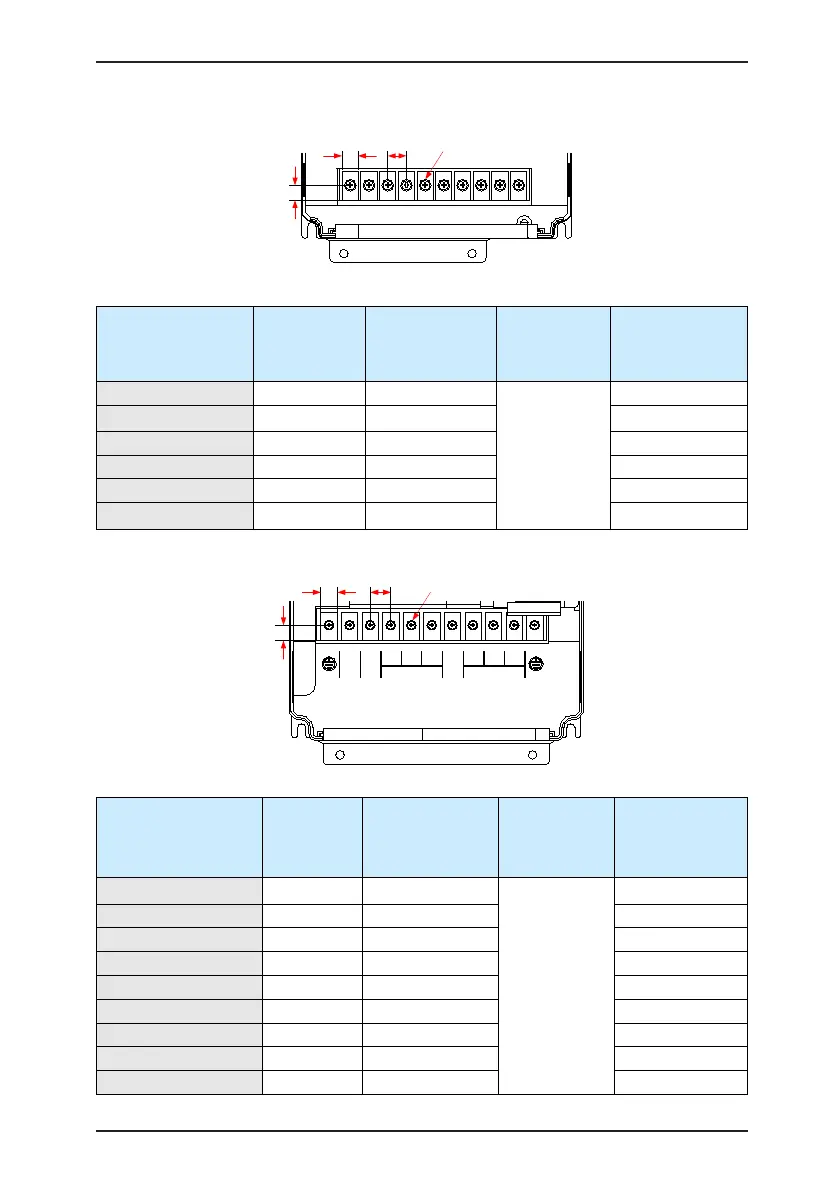

Figure 8-4 Dimensions of power terminals of the MD380 (size C)
11.1
9.6
8.9
M4 combination screw
Table 8-4 Recommended cable diameter and cable lug model (size C)
AC Drive Model
Rated Input
Current
(A)
Recommended
Output Power
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380-2T3.7GB 14.60 2.5
1.2
GTNR2.5-4
MD380-2T5.5GB 26.00 4 TNR4-5
MD380T3.7GB 10.50 1.5 TNR1.5-4
MD380T5.5GB 14.60 2.5 GTNR2.5-4
MD380-5T3.7GB 10.50 1.5 TNR1.5-4
MD380-5T5.5GB 14.60 2.5 GTNR2.5-4
Figure 8-5 Dimensions of power terminals of the MD380 (size D)
14.5
M5 combination screw
11.5
10.9
R S
T
POWER
U V
W
MOTOR
(-)(+)
PB
Table 8-5 Recommended cable diameter and cable lug model (size D)
AC Drive Model
Rated Input
Current
(A)
Recommended
Output Power
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380-2T7.5GB 35.00 6
2.5
GTNR4-5
MD380-2T11G 46.50 10 GTNR10-6
MD380-2T15G 62.00 16 GTNR16-6
MD380T7.5GB 20.50 4 GTNR4-5
MD380T11GB 26.00 4 GTNR6-5
MD380T15GB 35.00 6 GTNR6-5
MD380-5T7.5GB 20.50 4 GTNR4-5
MD380-5T11GB 26.00 4 GTNR6-5
MD380-5T15GB 35.00 6 GTNR6-5
