MD380 User Manual Selection and Dimensions
- 269 -

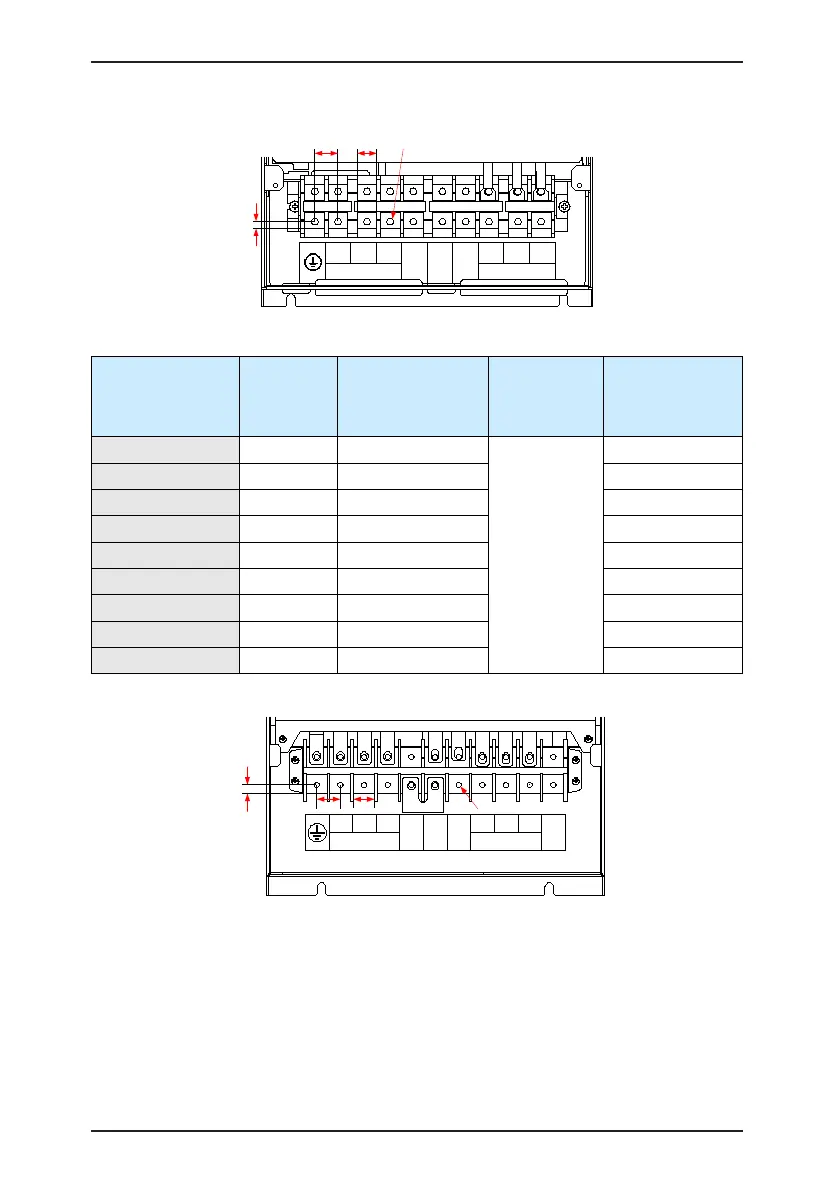

Figure 8-6 Dimensions of power terminals of the MD380 (size E)
R S T
POWER
U V W
MOTOR
(-)
(+)
PB
20
M6 combination screw
17
6
Table 8-6 Recommended cable diameter and cable lug model (size E)
AC Drive Model
Rated Input
Current
(A)
Recommended
Output Power
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380-2T18.5G 76.00 25
4
GTNR25-6
MD380-2T22G 92.00 35 GTNR35-6
MD380-2T30G 113.00 50 GTNR50-8
MD380T18.5G 38.50 10 GTNR10-6
MD380T22G 46.50 10 GTNR10-6
MD380T30G 62.00 16 GTNR16-6
MD380-5T18.5G 38.50 10 GTNR10-6
MD380-5T22G 46.50 10 GTNR10-6
MD380-5T30G 62.00 16 GTNR16-6
Figure 8-7 Dimensions of power terminals of the MD380 (size F)
R S T
POWER
U V W
MOTOR
(-)
(+)
P
10
27 M8 combination screw24
