MD380 User Manual Selection and Dimensions
- 263 -

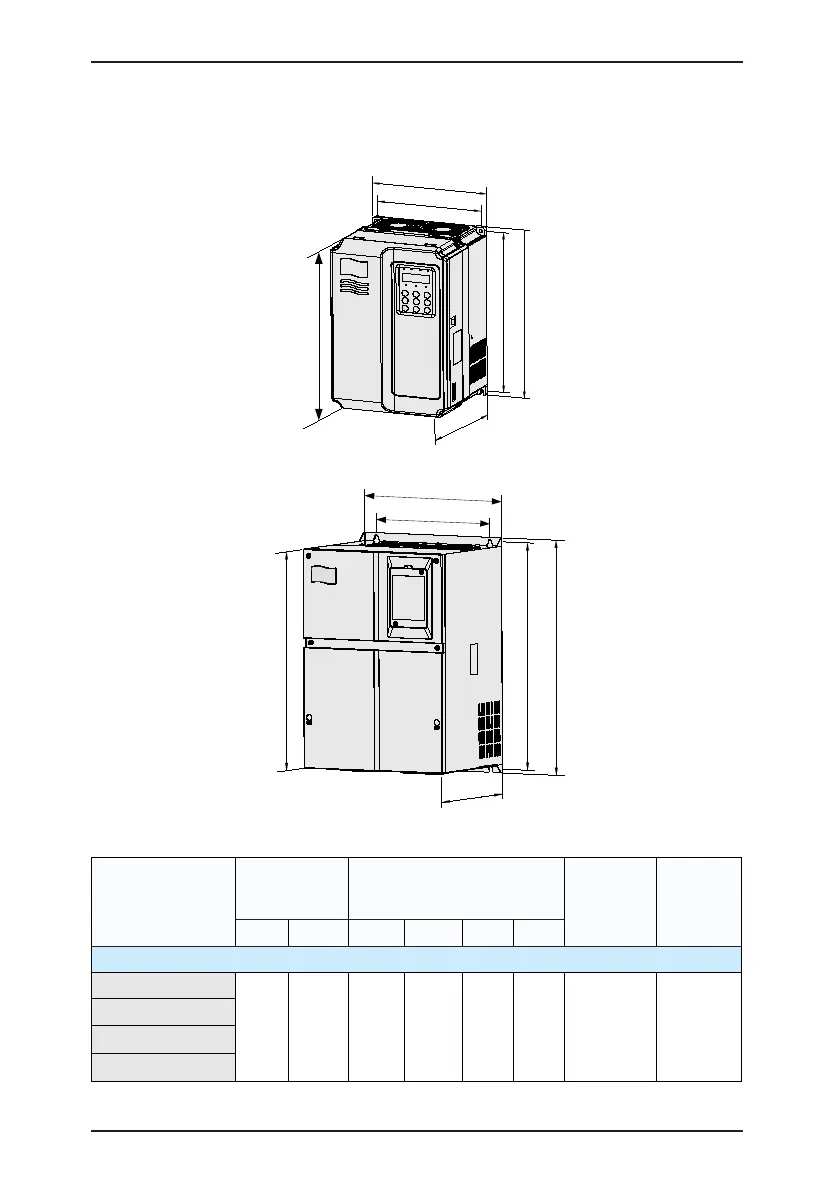

8.2 Physical Appearance and Overall Dimensions of the MD380
Figure 8-1 Physical appearance and overall dimensions of the MD380 (plastic housing)
W
A
B H1
D
H
Figure 8-2 Physical appearance and overall dimensions of the MD380 (sheet metal housing)
W
A
H
B H1
D
Table 8-2 Overall dimensions and mounting hole dimensions of the MD380
Model
Mounting
Hole
(mm)
Overall Dimensions
(mm)
Mounting
Hole
Diameter
(mm)
Weight
(kg)
A B H H1 W D
Single-phase 220 V
MD380S0.4GB
113 172 186 / 125 164 ø5.0 1.1
MD380S0.7GB
MD380S1.5GB
MD380S2.2GB
