Chapter 4 Operation, Display and Application Examples
4.1 Operation Panel
You can modify the parameters, monitor the working status and start or stop the MD380 by
operating the operation panel, as shown in the following gure.

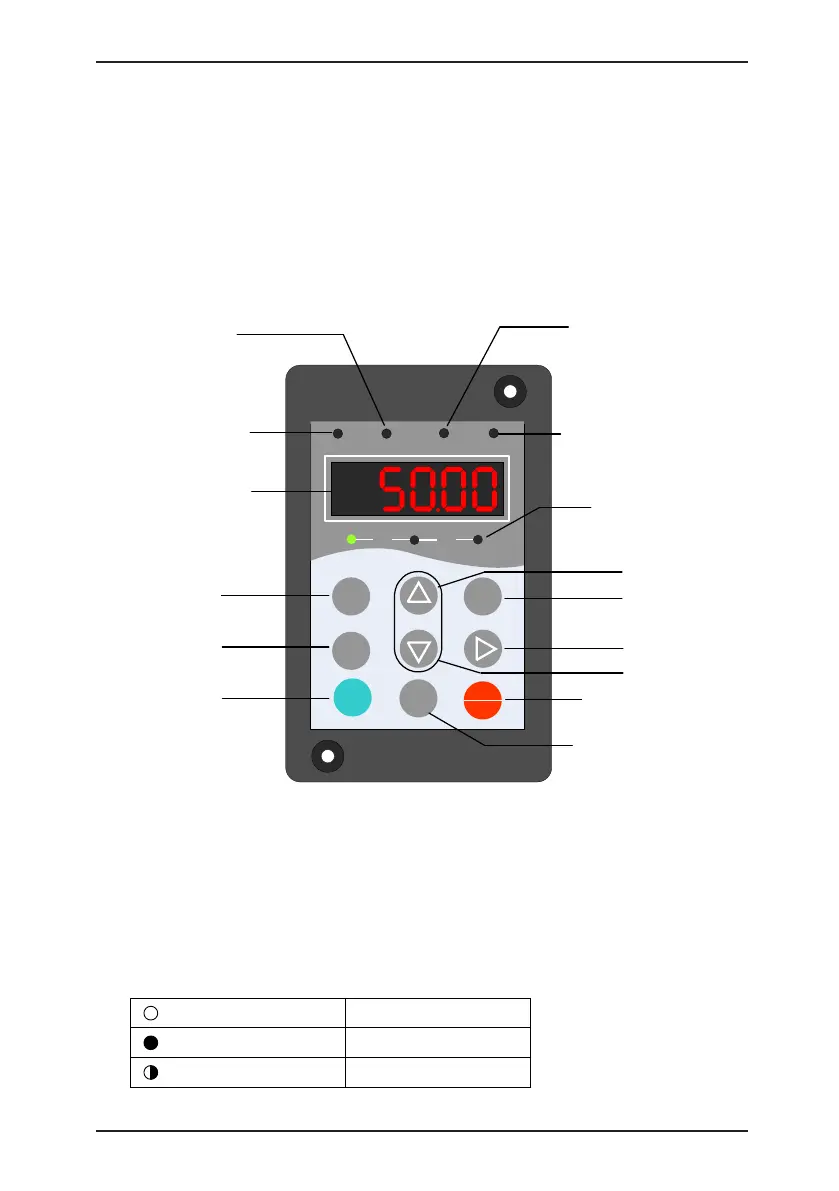

Figure 4-1 Diagram of the operation panel
MF.K
RUN
STOP
RES
QUICK
PRG ENTER
RUN
LOCAL/REMOT FED/REV TUNE/TC
RPM
%
A VHz
Command
source indicator
ON: local control (Local)
OFF: Operation panel control
Forward/Reverse
rotation indicator
ON: reverse rotation
OFF: forward rotation
RUN indicator
Data display
Programming
key
Menu key
RUN key
Multi-function key
Stop/Reset key
Shift key
Increment key
Decrement key
Confirm key
Unit indicator
Tuning/Torque
control/Fault indicator
Blinking: Remote control (Remot)
4.1.1 Description of Indicators
• RUN
ON indicates that the AC drive is in the running state, and OFF indicates that the AC
drive is in the stop state.
• LOCAL/REMOT
It indicates whether the AC drive is operated by means of operation panel, terminals or
communication.
LOCAL/REMOT: OFF Operation panel control
LOCAL/REMOT: ON Terminal control
LOCAL/REMOT: blinking Communication control
