8.5.2 Physical Dimensions of External DC Reactor

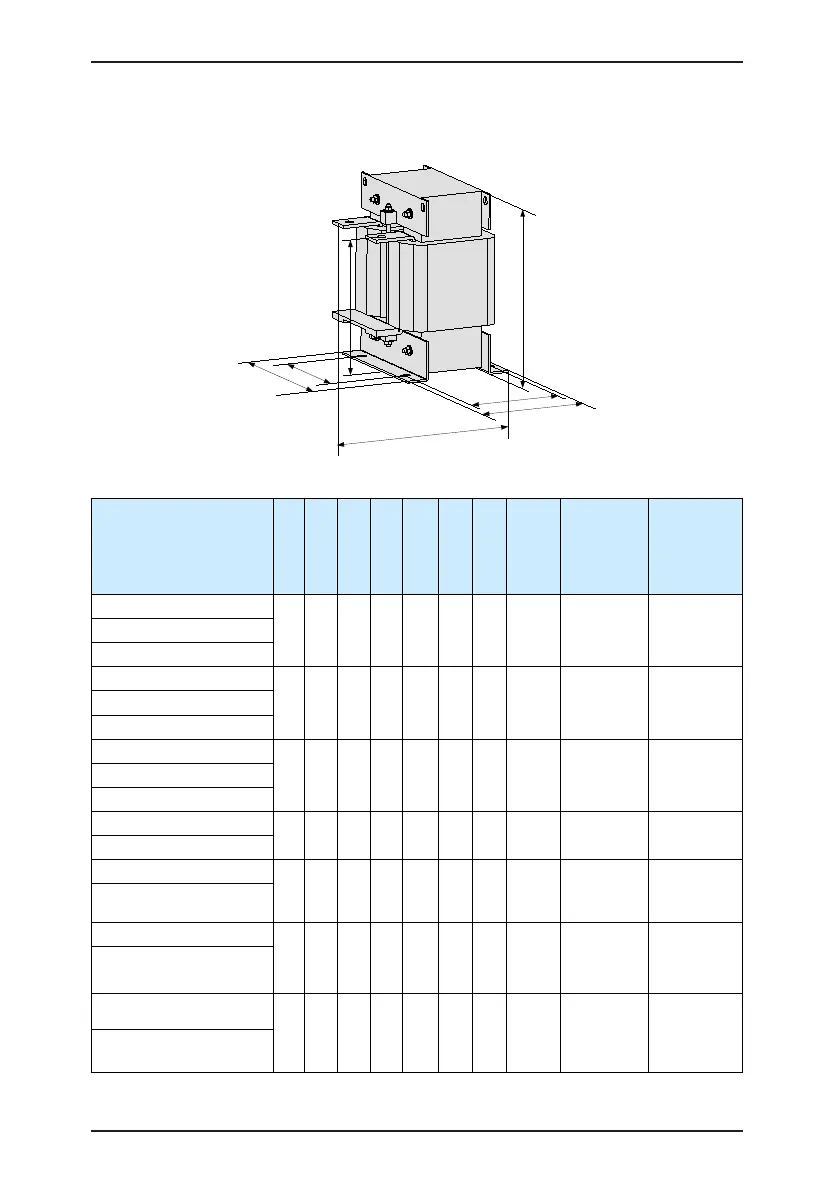

Figure 8-15 Physical dimensions of external DC reactor
C
D
A
B
E
G
F
Table 8-15 Adaptable AC drive models
Adaptable AC Drive Model A B C D E F G
Fixed
Hole
Diameter of
the Hole for
Connecting
Copper
Busbar
Reactor
Model
MD380-2T37G/45G
160 190 125 161 192 255 195 10 x 15 ø12 DCL-0200MD380T75G/90G
MD380-5T75G/90G
MD380-2T55G
160 190 125 161 192 255 195 10 x 15 ø12 DCL-0250MD380T/110G/132P
MD380-5T/110G/132P
MD380-2T75G
160 190 125 161 192 255 195 10 x 15 ø12 DCL-0360MD380T132G/160G
MD380-5T132G/160G
MD380T200G/220G
190 230 93 128 250 325 200 13 x 18 ø15 DCL-0600
MD380-5T/200G/220G
MD380T250G/280G
190 230 93 128 250 325 200 13 x 18 ø15 DCL-0700
MD380-5T250G/280G
MD380T315G/355G/400G
224 250 135 165 260 330 235 12 x 20 ø14 DCL-1000
MD380-5T315G
/355G/400G
MD380-7T55G/75G/90G
160 190 125 161 192 255 195 10 x 15 ø12
Not
congured
with reactor
now
MD380-7T110G/132G
