Inovance MD380 Series

Description of Function Codes
MD380 User Manual
- 182 -
Function Code Parameter Name Setting Range Default
F6-08
Time proportion of S-curve
start segment
0.0% to (100.0% – F6-09) 30.0%
F6-09
Time proportion of S-curve
end segment
0.0% to (100.0% – F6-08) 30.0%
7KHVHWZRSDUDPHWHUVUHVSHFWLYHO\GH¿QHWKHWLPHSURSRUWLRQVRIWKHVWDUWVHJPHQWDQGWKH
end segment of S-curve acceleration/deceleration. They must satisfy the requirement: F6-08
)
,Q)LJXUHWLVWKHWLPHGH¿QHGLQ)ZLWKLQZKLFKWKHVORSHRIWKHRXWSXWIUHTXHQF\
FKDQJHLQFUHDVHVJUDGXDOO\WLVWKHWLPHGH¿QHGLQ)ZLWKLQZKLFKWKHVORSHRIWKH
RXWSXWIUHTXHQF\FKDQJHJUDGXDOO\GHFUHDVHVWR:LWKLQWKHWLPHEHWZHHQWDQGW
the slope of the output frequency change remains unchanged, that is, linear acceleration/
deceleration.

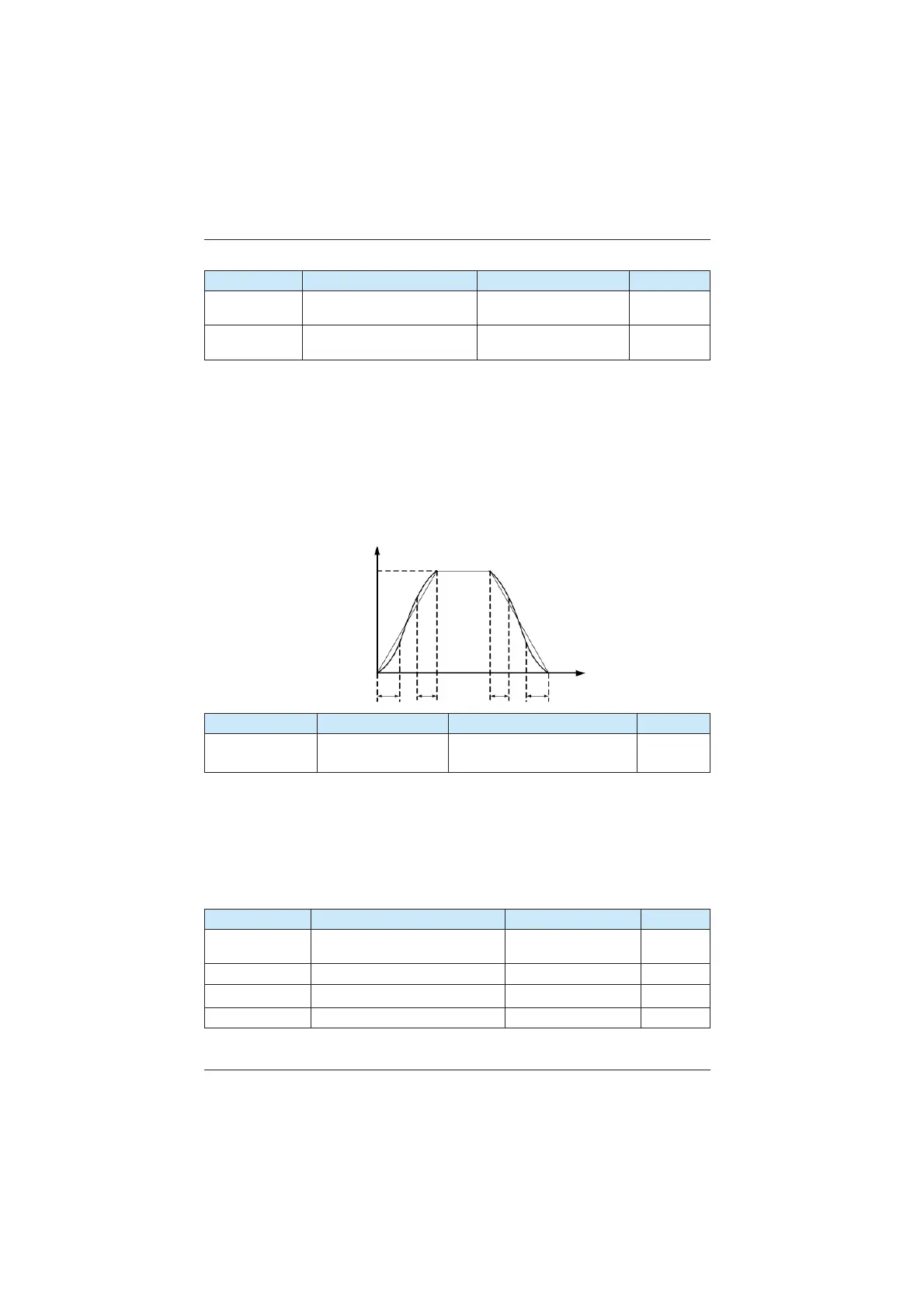

Figure 6-12 S-curve acceleration/deceleration A
2XWSXW
frequency (Hz)
Frequency
reference (f)
Time (t)
t1 t2 t2t1
Function Code Parameter Name Setting Range Default
F6-10 Stop mode
0: Decelerate to stop
1: Coast to stop
0
 0: Decelerate to stop
After the stop command is enabled, the AC drive decreases the output frequency
according to the deceleration time and stops when the frequency decreases to zero.
 1: Coast to stop
After the stop command is enabled, the AC drive immediately stops the output. The
motor will coast to stop based on the mechanical inertia.
Function Code Parameter Name Setting Range Default
F6-11
DC injection braking 2 frequency
threshold
0.00 Hz to maximum
frequency
0.00 Hz
F6-12 DC injection braking 2 delay time 0.0–36.0s 0.0s
F6-13 DC injection braking 2 level 0%–100% 0%
F6-14 DC injection braking 2 active time 0.0–36.0s 0.0s
