Inovance MD380 Series

MD380 User Manual Desc
ription of Function Codes
- 203 -

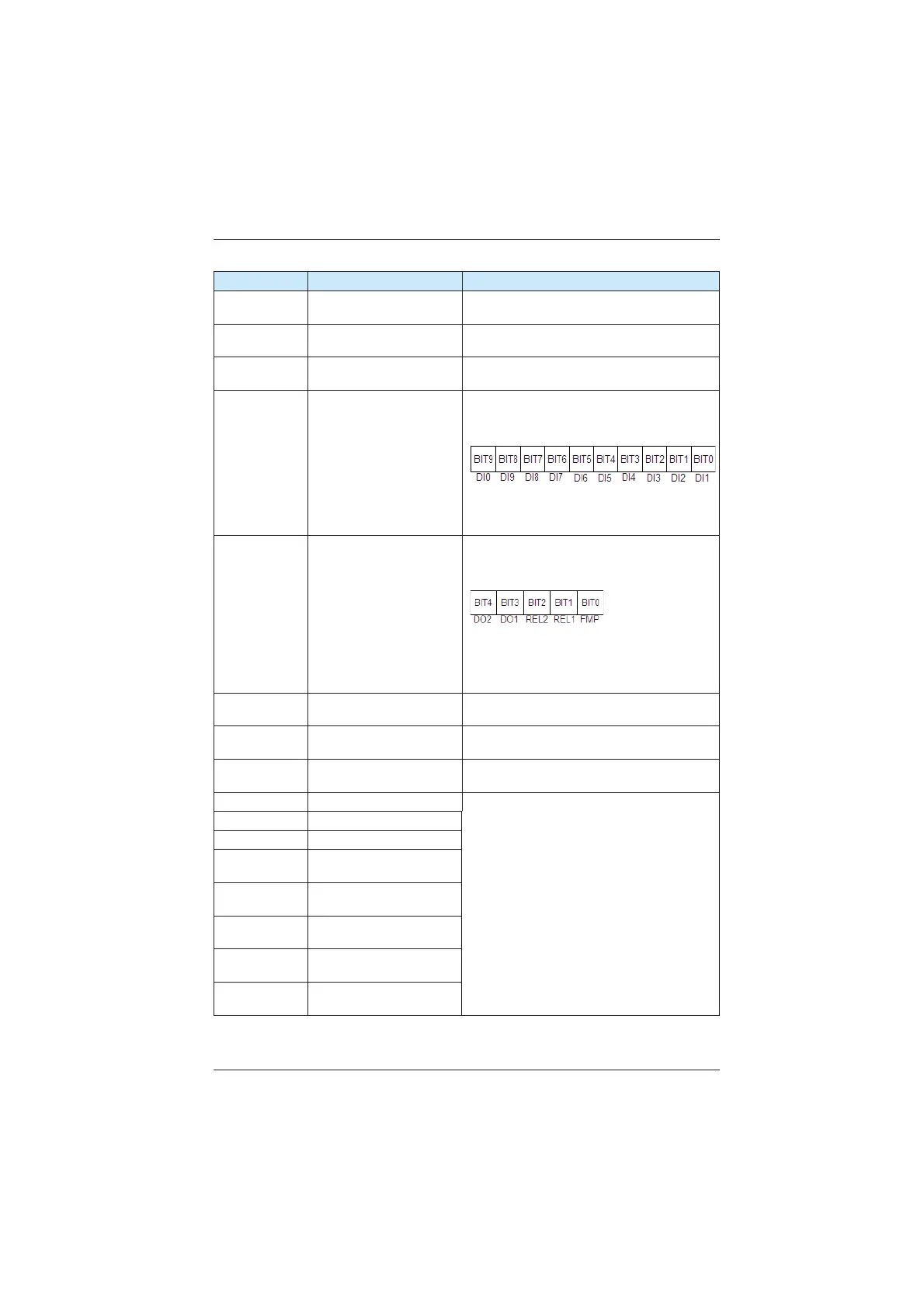

Function Code Parameter Name Description
F9-17 Frequency upon 3rd fault
It displays the frequency when the latest fault
occurs.
F9-18 Current upon 3rd fault
It displays the current when the latest fault
occurs.
F9-19 Bus voltage upon 3rd fault
It displays the bus voltage when the latest fault
occurs.
F9-20
Input terminal state upon
3rd fault
It displays the status of all DI terminals when
the latest fault occurs.
The sequence is as follows:
,ID',LV21WKHVHWWLQJLV,IWKH',LV2))
the setting is 0. The value is the equivalent
decimal number converted from the DI status..
F9-21
2XWSXWWHUPLQDOVWDWHXSRQ
3rd fault
It displays the status of all output terminals
when the latest fault occurs.
The sequence is as follows:
,IDQRXWSXWWHUPLQDOLV21WKHVHWWLQJLV
,IWKHRXWSXWWHUPLQDOLV2))WKHVHWWLQJLV
The value is the equivalent decimal number
converted from the DI statuses.
F9-22
AC drive state upon 3rd
fault
Reserved
F9-23
Power-on time upon 3rd
fault
It displays the present power-on time when the
latest fault occurs.
F9-24
Running time upon 3rd
fault
It displays the present running time when the
latest fault occurs.
F9-27 Frequency upon 2nd fault
Same as F9-17–F9-24.
F9-28 Current upon 2nd fault
F9-29 Bus voltage upon 2nd fault
F9-30
Input terminal state upon
2nd fault
F9-31
2XWSXWWHUPLQDOVWDWHXSRQ
2nd fault
F9-32
AC drive state upon 2nd
fault
F9-33
Power-on time upon 2nd
fault
F9-34
Running time upon 2nd
fault
