Inovance MD380 Series

MD380 User Manual Desc
ription of Function Codes
- 217 -
Function Code Parameter Name Setting Range Default
Fb-08 Set count value 1–65535 1000
Fb-09 Designated count value 1–65535 1000
The count value needs to be collected by DI terminal. Allocate the corresponding DI terminal
with function 25 (Counter input) in applications. If the pulse frequency is high, DI5 must be
used.
:KHQWKHFRXQWYDOXHUHDFKHVWKHVHWFRXQWYDOXH)EWKH'2WHUPLQDODOORFDWHGZLWK
IXQFWLRQ6HWFRXQWYDOXHUHDFKHGEHFRPHV217KHQWKHFRXQWHUVWRSVFRXQWLQJ
:KHQWKHFRXQWLQJYDOXHUHDFKHVWKHGHVLJQDWHGFRXQWLQJYDOXH)EWKH'2WHUPLQDO
DOORFDWHGZLWKIXQFWLRQ'HVLJQDWHGFRXQWYDOXHUHDFKHGEHFRPHV217KHQWKHFRXQWHU
continues to count until the set count value is reached.
Fb-09 should be equal to or smaller than Fb-08.

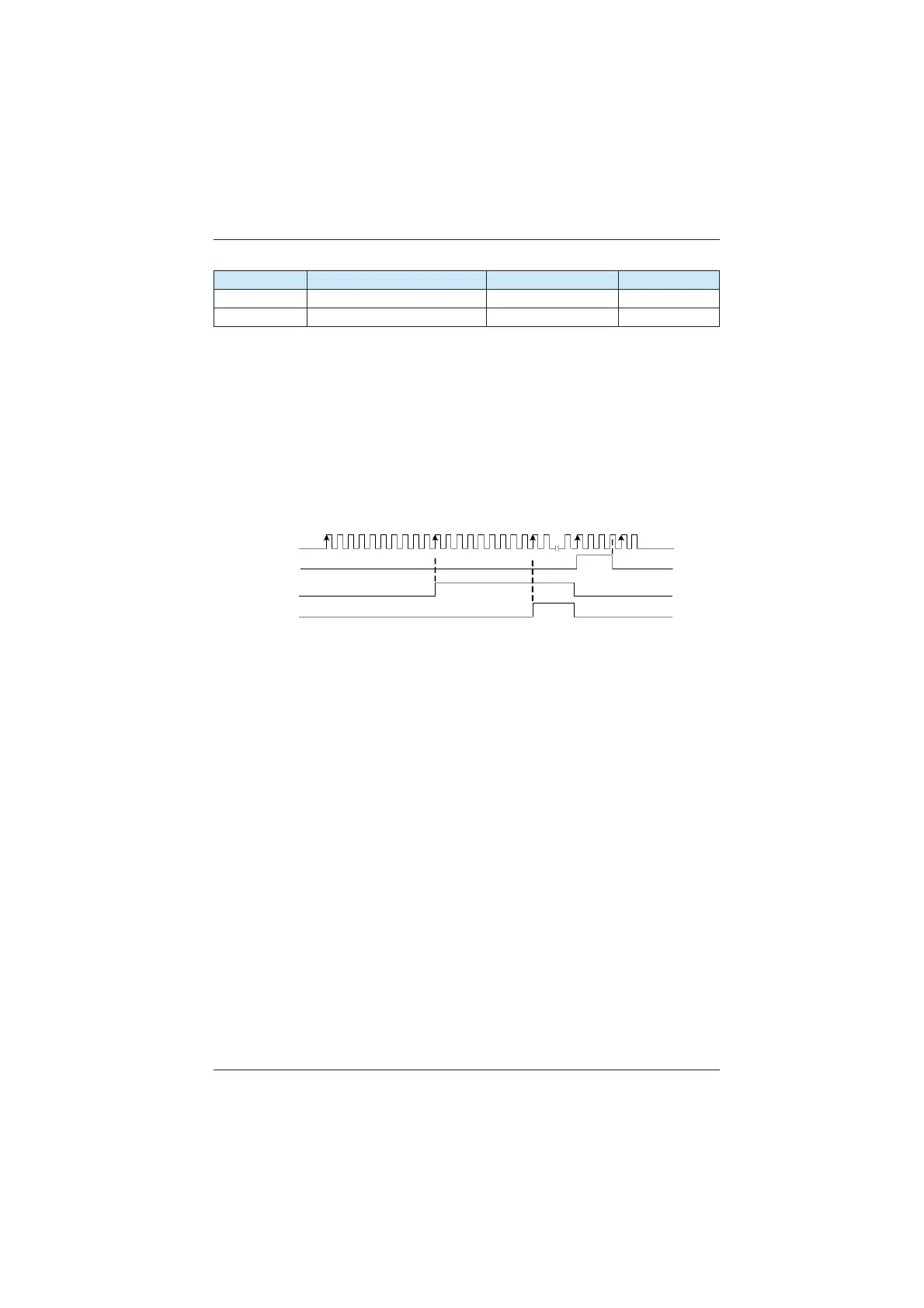

Figure 6-32 Reaching the set count value and designated count value
Count pulses input
Count pulses input
Designated count
value reached output
Set count value
reached output
123
1110 12 20 2119
12
Fb-09 11
80-12 11
Fb-08 20
80-12 20
80-12 0
80-12: Count value
