Inovance MD380 Series User Manual

MD380 User Manual Selection and Dimensions
- 273 -

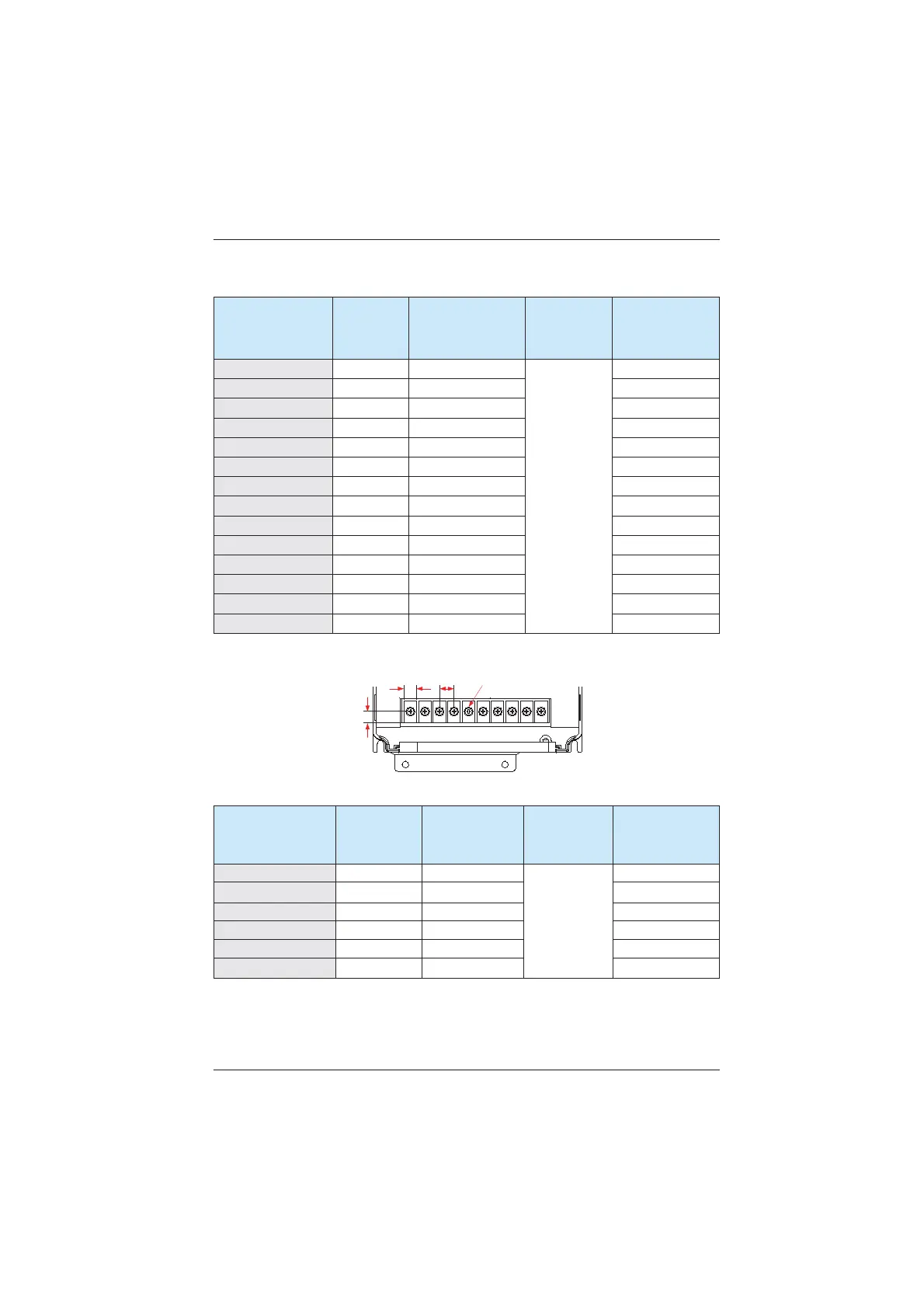

Table 8-3 Recommended cable diameter and cable lug model (size B)
AC Drive Model
Rated Input
Current
(A)
Recommended
2XWSXW3RZHU
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380S0.4GB 5.40 0.75
0.87
TNR0.75-4
MD380S0.7GB 8.20 0.75 TNR0.75-4
MD380S1.5GB 14.00 1.5 TNR1.25-4
MD380S2.2GB 23.00 2.5 GTNR2.5-4
MD380-2T0.4GB 3.40 0.75 TNR0.75-4
MD380-2T0.75GB 5.00 0.75 TNR0.75-4
MD380-2T1.1GB 5.80 0.75 TNR0.75-4
MD380-2T2.2GB 10.50 1.5 TNR1.25-4
MD380T0.7GB 3.40 0.75 TNR0.75-4
MD380T1.5GB 5.00 0.75 TNR0.75-4
MD380T2.2GB 5.80 0.75 TNR0.75-4
MD380-5T0.7GB 3.40 0.75 TNR0.75-4
MD380-5T1.5GB 5.00 0.75 TNR0.75-4
MD380-5T2.2GB 5.80 0.75 TNR0.75-4
Figure 8-4 Dimensions of power terminals of the MD380 (size C)
11.1
9.6
8.9
M4 combination screw
Table 8-4 Recommended cable diameter and cable lug model (size C)
AC Drive Model
Rated Input
Current
(A)
Recommended
2XWSXW3RZHU
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380-2T3.7GB 14.60 2.5
1.2
GTNR2.5-4
MD380-2T5.5GB 26.00 4 TNR4-5
MD380T3.7GB 10.50 1.5 TNR1.25-4
MD380T5.5 14.60 2.5 GTNR2.5-4
MD380-5T3.7GB 10.50 1.5 TNR1.5-4
MD380-5T5.5 14.60 2.5 GTNR2.5-4
