Selection and Dimensions
MD380 User Manual
- 274 -

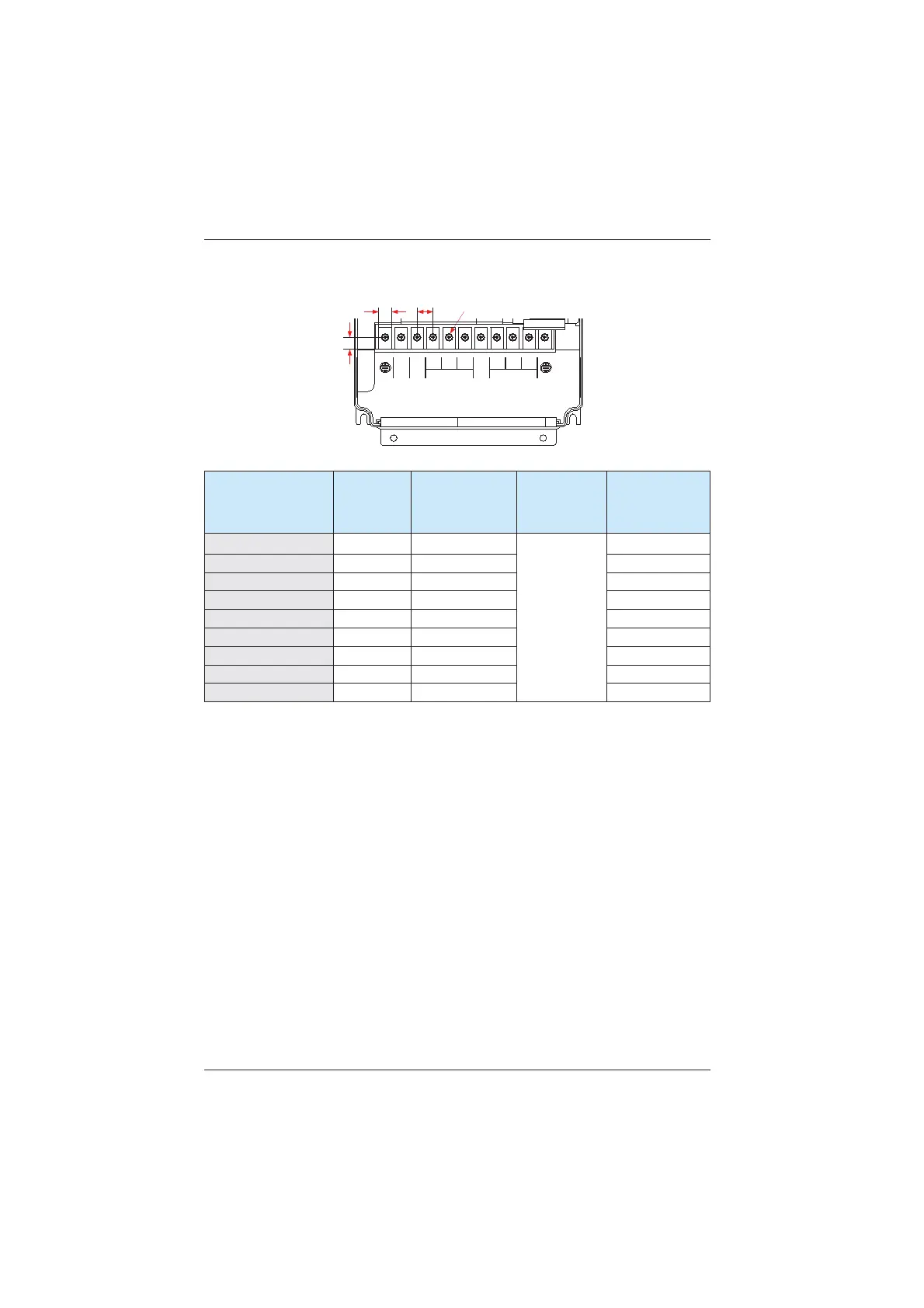

Figure 8-5 Dimensions of power terminals of the MD380 (size D)
14.5
M5 combination screw
11.5
10.9
RS
T
32:(5
8 V
:
02725
(-)(+)
PB
Table 8-5 Recommended cable diameter and cable lug model (size D)
AC Drive Model
Rated Input
Current
(A)
Recommended
2XWSXW3RZHU
Cable Diameter
(mm
2
)
Torque of
Torque Driver
(N.m)
Recommended
Cable Lug Model
MD380-2T7.5GB 35.00 6
2.5
GTNR4-5
MD380-2T11G 46.50 10 GTNR10-6
MD380-2T15G 62.00 16 GTNR16-6
MD380T7.5 20.50 4 GTNR4-5
MD380T11 26.00 4 GTNR6-5
MD380T15 35.00 6 GTNR6-5
MD380-5T7.5 20.50 4 GTNR4-5
MD380-5T11 26.00 4 GTNR6-5
MD380-5T15 35.00 6 GTNR6-5
