Typical Application
The module provides remote monitoring, commissioning, and serial port functions.
The basic data path is as follows: target device <–> module <–> server <–> user’s PC.
The following figure shows the typical application.

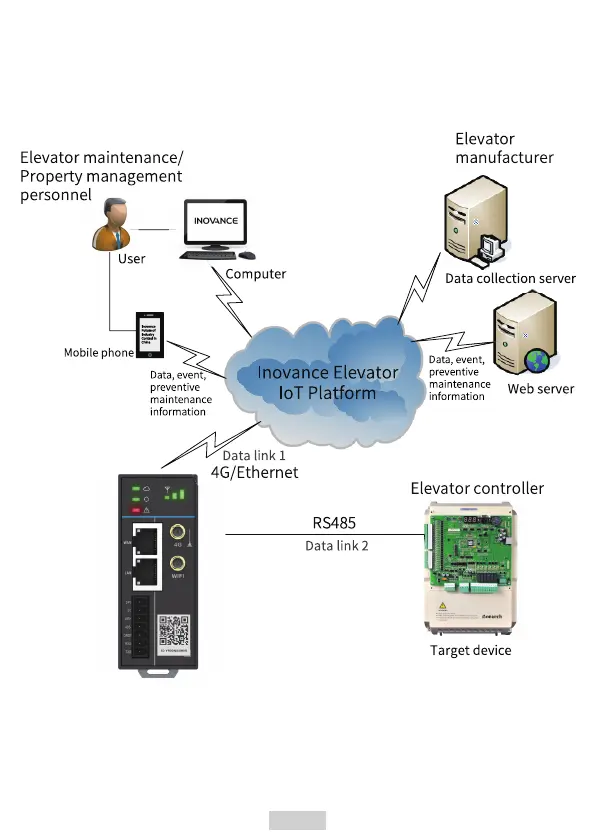

Figure ‑4 Typical application in the elevator industry
