Insignia IS-NXT10232 User Manual

7
IS-NXT10232 Designer shelf system
www.insignia-products.com

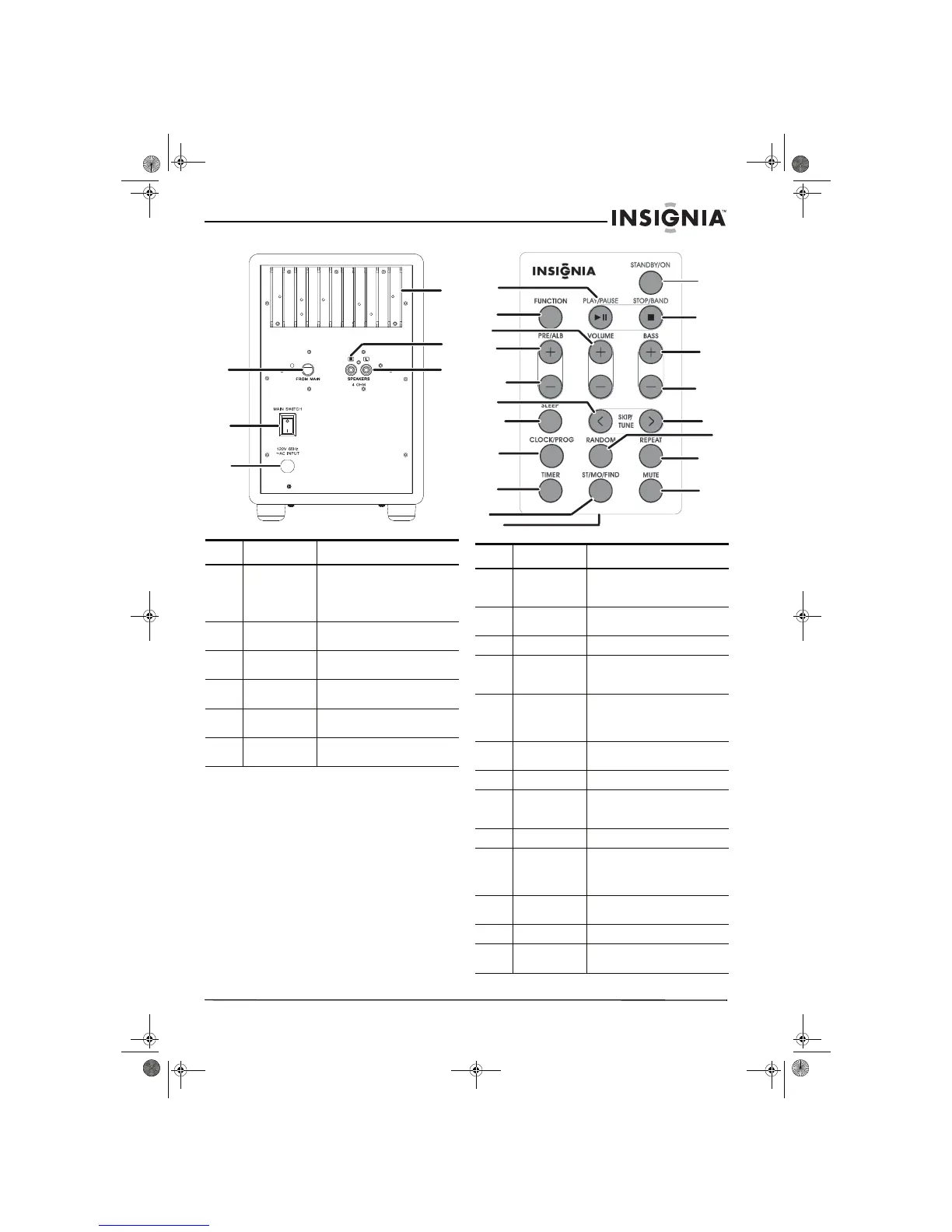

AMPLIFIER/SUBWOOFER - BACK PANEL REMOTE CONTROL
Item Connector Function
1FROM MAIN
jack
Attach one end of a 9-pin cable
to this connector and the other
end to the TO SUBWOOFER
connector on the Tuner/CD
player.
2MAIN
SWITCH
Turns system power on and off.
3AC POWER
input
AC power cord.
4 Metal heat sink Dissipates heat produced by
the amplifier.
5 Speaker (R)
jack
Connect the wire from the right
speaker to this connector.
6 Speaker (L)
jack
Connect the wire from the left
speaker to this connector.
1
2
3
4
5
6
Item Button Function
1 PLAY/PAUSE Begins playback, then toggles
between Play and Pause
modes.
2 FUNCTION Selects functions
(Tuner>CD>Aux)
3 VOLUME + Increases volume
4 PRE/ALB + In Tuner mode, selects the next
preset. Playing MP3 discs,
selects the next album.
5 PRE/ALB - In Tuner mode, selects the
previous preset. Playing MP3
discs, selects the previous
album.
6 SKIP/TUNE < Goes to the previous track or
lower tuner frequency.
7 SLEEP Sets the sleep timer.
8 CLOCK/PROG Sets the clock, programs
presets, and programmed
playback options.
9 TIMER Sets the turn-on timer.
10 ST/MO/FIND Toggles between Stereo and
Mono in Tuner mode. Toggles
ESP on and off. Finds/displays
MP3 tracks.
11 Battery
compartment
Place the remote control
battery in this compartment.
12 MUTE Toggles the sound off and on.
13 REPEAT Repeats selected tracks,
album, or all tracks.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
NXT Designer shelf system - combined.fm Page 7 Wednesday, July 6, 2005 9:04 AM
