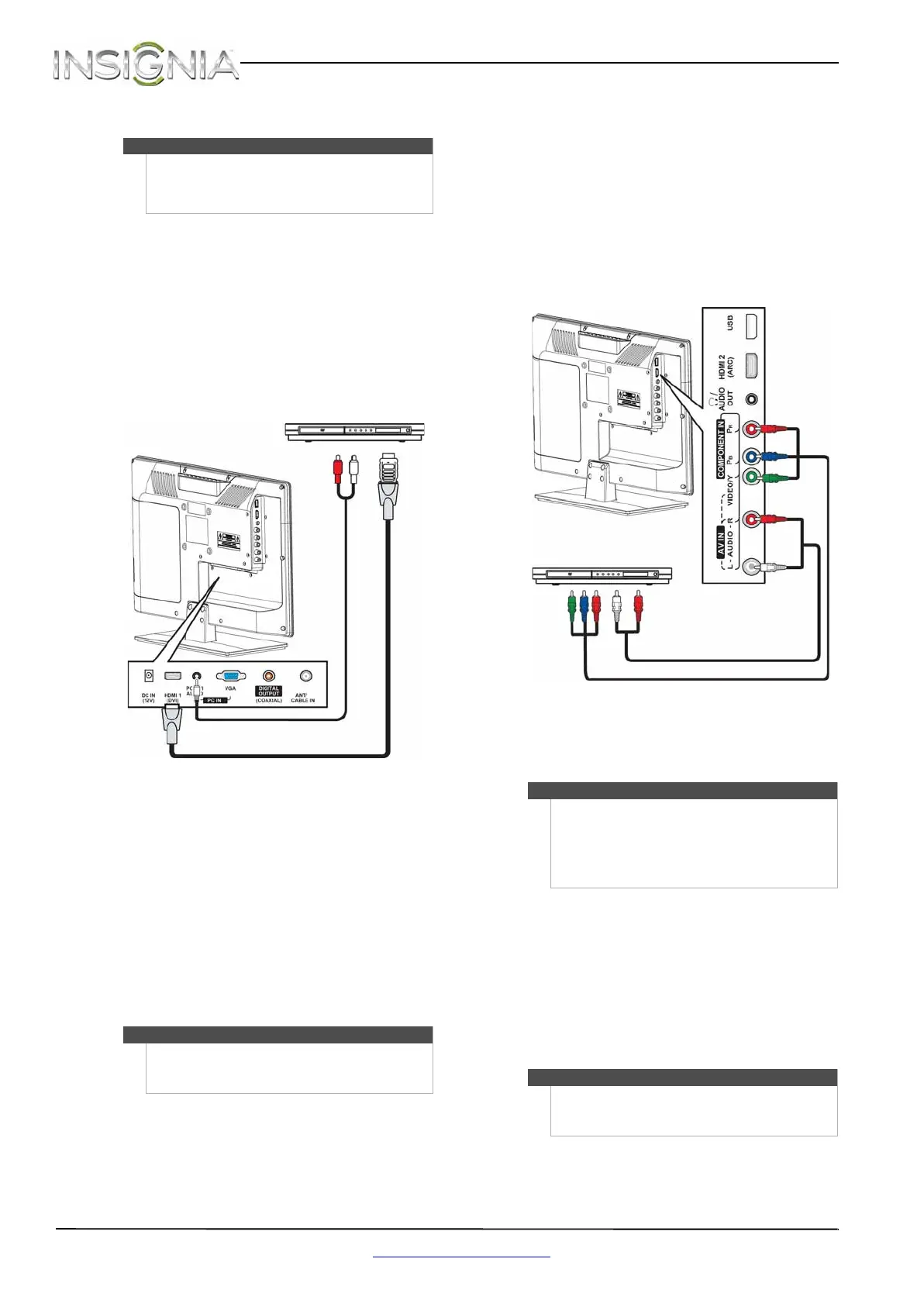

Using DVI (same as HDMI but requires an audio
connection)
To connect a DVD or Blu-ray player using DVI:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an HDMI-DVI adapter (not provided) to
one end of an HDMI cable (not provided), then
connect the adapter to the DVI OUT jack on the
DVD or Blu-ray player.
3 Connect the other end of the cable to the
HDMI1 (DVI) jack on the back of your TV.
4 Connect a 3.5mm audio cable (not provided) to
the PC/DVI AUDIO jack on the back of your TV
and to the AUDIO OUT jacks on the DVD or
Blu-ray player.
5 Plug your TV’s power cord into a power outlet,
then turn on your TV.
6 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
7 Press INPUT to open the Input Source list.
8 Press
S or T to select HDMI1, then press
ENTER.
Using component video (better)
To connect a DVD or Blu-ray player using
component video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect a component video cable (not
provided) to the VIDEO/Y, P
B, and PR jacks on
the side of your TV and to the COMPONENT
OUT jacks on the component video device.
3 Connect an audio cable (not provided) to the
AUDIO L/R jacks on the side of your TV and to
the L/R AUDIO OUT jacks on the DVD or Blu-ray
player.
4 Plug your TV’s power cord into a power outlet,
then turn on your TV.
5 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
6 Press INPUT to open the Input Source list.
7 Press
S or T to select COMP/AV, then press
ENTER.
Note
You must use the HDMI 1 (DVI) jack to connect a
DVD or Blu-ray player using DVI. If you use the
HDMI 2 (ARC) jack, you will not hear sound from the
TV speakers.
Note
Remote control model NS-RC03A-13:
You can also press HDMI one or more times to select
the DVD or Blu-ray player.
DVD or Blu-ray player
HDMI cable with HDMI-DVI adapter
3.5mm audio cable
Back of TV
Notes
•The VIDEO/Y, P B , and P R video jacks (used to
connect a component device) share the
AUDIO L/R jacks with the VIDEO/Y jack (used to
connect a composite device).
• When you connect the audio using the
AUDIO L/R jacks, the audio output is analog.
Note
Remote control model NS-RC03A-13:
You can also press VIDEO to select the DVD or Blu-ray
player.
Component video cable
Audio cable
Cables are often
color-coded to match
color-coded jacks.
DVD or Blu-ray player
Side of TV
