NS-19E310A13 Insignia 19" LED TV
www.insigniaproducts.com

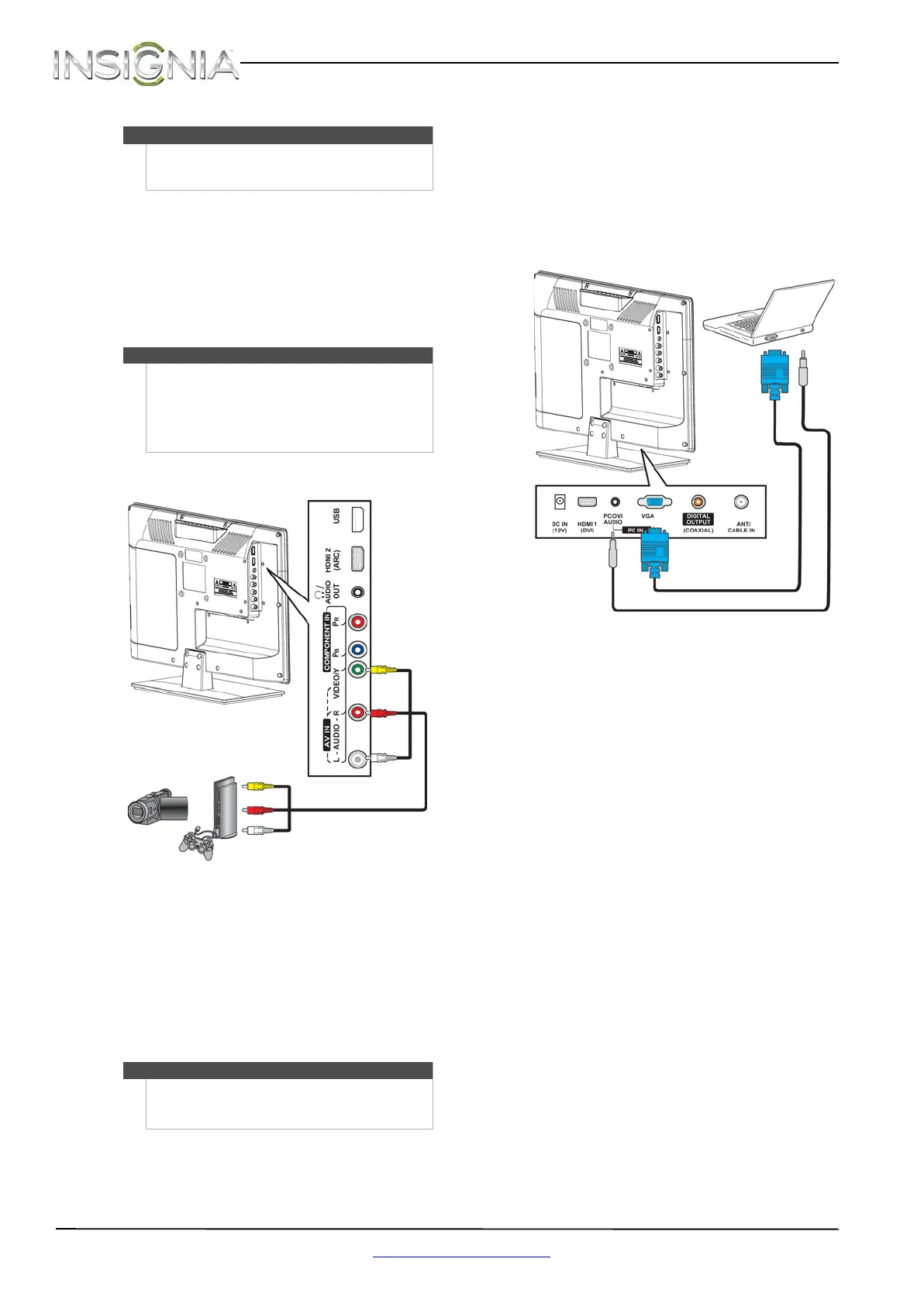

Connecting a camcorder or game console
To connect a camcorder or game console:
1 Make sure that your TV’s power cord is
unplugged and the camcorder or game console
is turned off.
2 Connect an AV cable (not provided) to the
VIDEO/Y jack and AUDIO L/R jacks on the side
of your TV and to the AV OUT jacks on the
camcorder or game console.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV.
4 Turn on the camcorder or game console, then
set it to the correct output mode. For more
information, see the documentation that came
with the camcorder or game console.
5 Press INPUT to open the Input Source list.
6 Press
S or T to select COMP/AV, then press
ENTER.
Connecting a computer
Using VGA
To connect a computer using VGA:
1 Make sure that your TV’s power cord is
unplugged and the computer is turned off.
2 Connect a VGA cable (not provided) to the VGA
jack on the back of your TV and to the VGA jack
on the computer.
3 Connect an audio cable with a stereo mini plug
(not provided) to the PC/DVI AUDIO jack on the
back of your TV and to the AUDIO OUT jack on
the computer.
4 Plug your TV’s power cord into a power outlet,
then turn on your TV and the computer.
5 Press INPUT to open the Input Source list.
6 Press
S or T to select VGA, then press ENTER.
7 Adjust the display properties on the computer,
if necessary.
Note
If your camcorder or game console has an HDMI
connection, we recommend that you use the HDMI
connection to get the best quality possible.
Note
•The VIDEO/Y, P B , and P R video jacks (used to
connect a component device) share the
AUDIO L/R jacks with the VIDEO/Y jack (used to
connect a composite device).
• When you connect the audio using the
AUDIO L/R jacks, the audio output is analog.
Notes
Remote control model NS-RC03A-13:
You can also press VIDEO to select the camcorder or
game console.
Cables are often color-coded to match color-coded jacks.
Note: The yellow video connector on the AV cable connects to
the green VIDEO/Y jack.
Camcorder or
game console
AV cable
Side of TV
Audio cable with stereo mini plug
VGA cable
Back of TV
