AV (composite video) (good)
1 Make sure that your TV’s AC power adapter is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the green VIDEO/Y jack and L and R AUDIO jacks on the back of your TV
and to the AV OUT jacks on the DVD or Blu-ray player.
3 Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the
documentation that came with the player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S
or
T
to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO/Y jack.
Notes
•The VIDEO/Y, P
B
, and P
R
video jacks (used to connect a component
device) share the L and R Audio jacks with the Y/VIDEO jack (used to
connect an AV (composite video) device).
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.

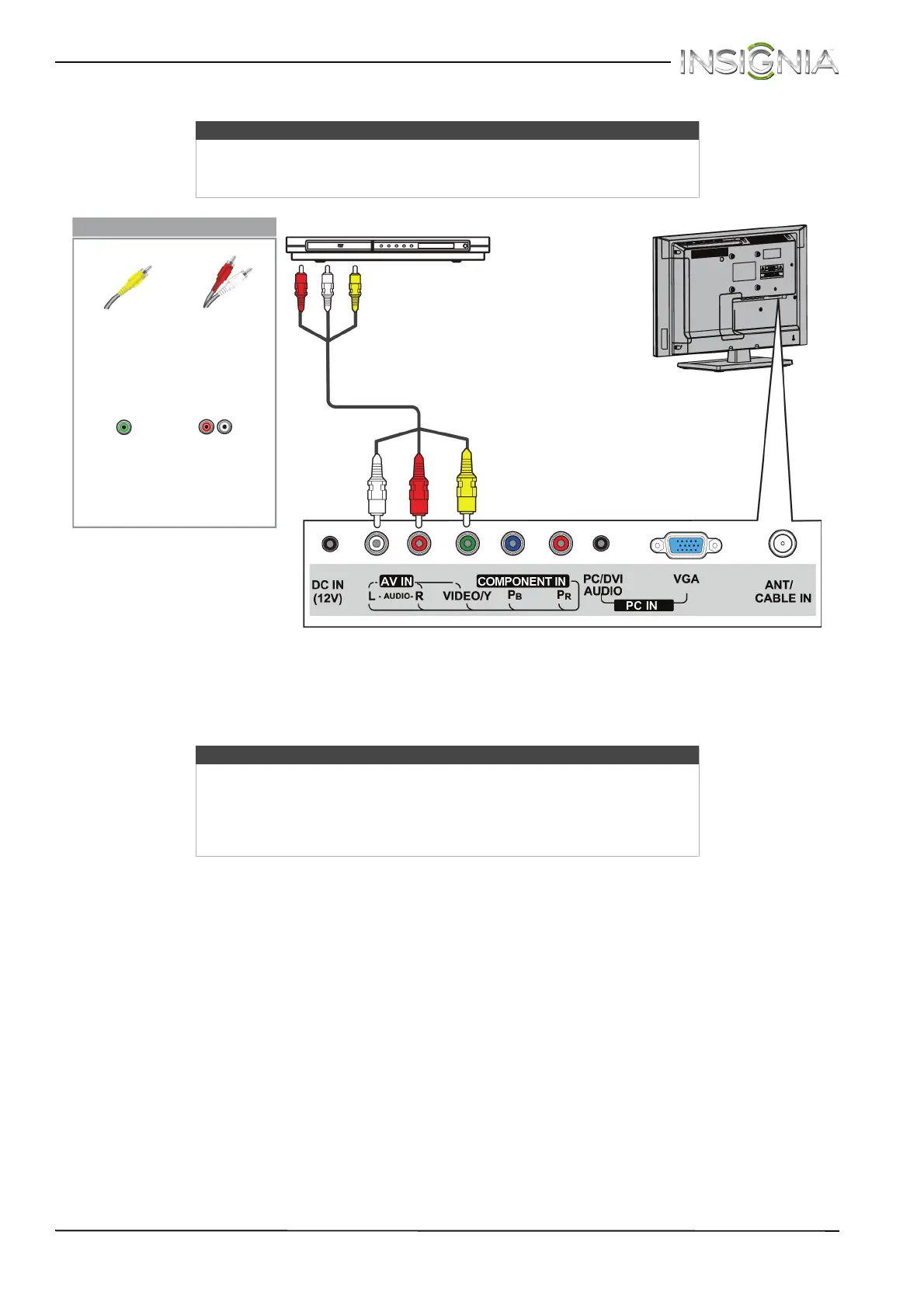

AV cable
(composite video cable)
Back of TV
AV
(composite
video) cable
connector
AV
(composite
video) jack
Audio cable
connectors
Analog
audio jacks
DVD or Blu-ray player
On your TV
