23
Insignia 19" LED TV
www.insigniaproducts.com

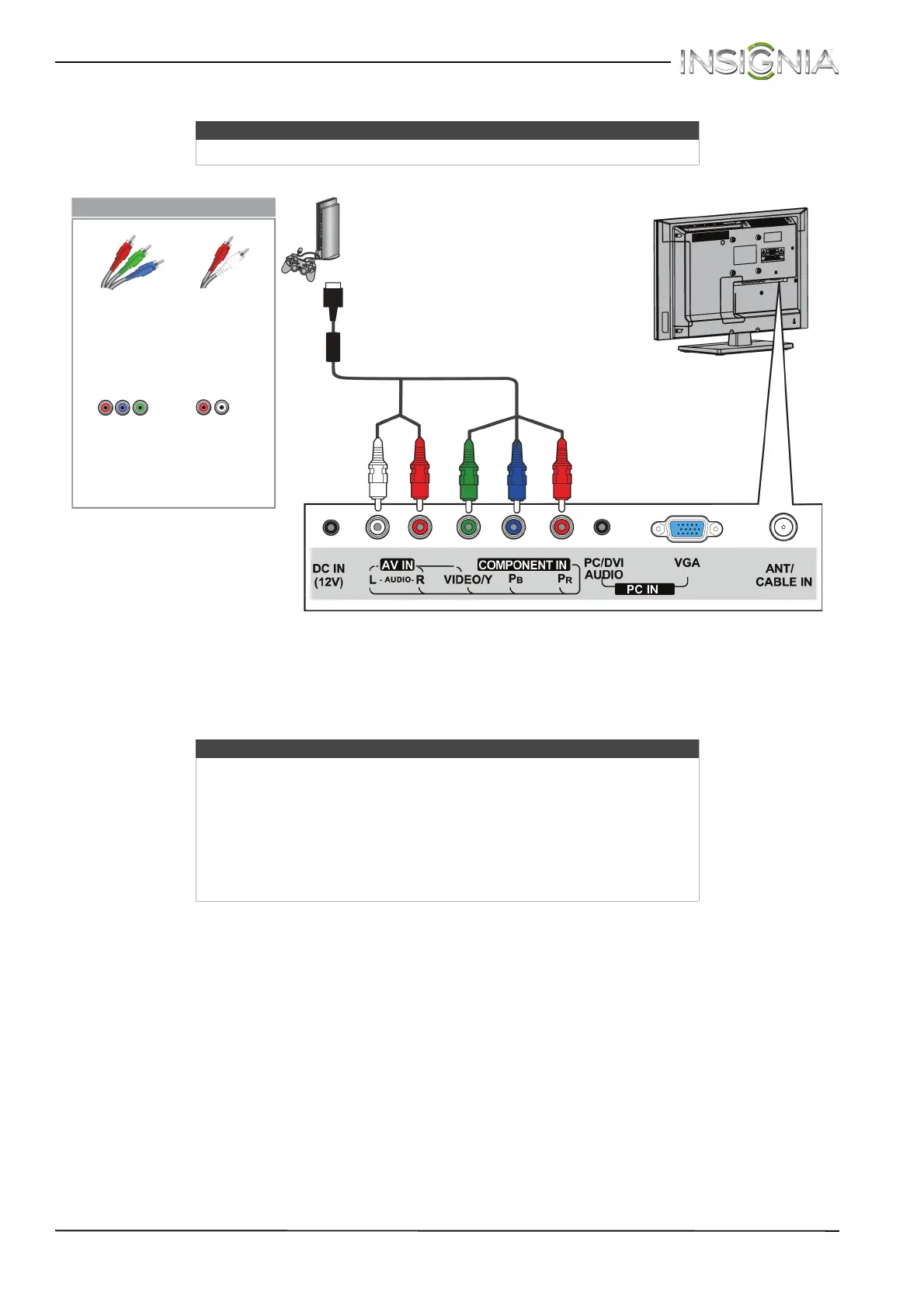

Component video (better)
1 Make sure that your TVs AC power adapter is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the component video cable (not provided) to the VIDEO/Y, P
B
, and
P
R
video jacks and L and RAUDIO jacks on the back of your TV and to the component jack(s) on the game
console.
3 Plug your TVs AC power adapter into a power outlet, then turn on your TV.
4 Turn on the game console, then set it to the correct output mode. For more information, see the documentation
that came with the console.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S
or
T
to highlight Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Note
Your game console may require a special component video cable. See
the documentation that came with your game console or check the
manufacturers website.
•The VIDEO/Y, P
B
, and P
R
video jacks (used to connect a component
device) share the L and R AUDIO jacks with the VIDEO/Y jack (used to
connect an AV (composite video) device).
When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
Game
console
Back of TV
Console-specific component
video and audio cable
On your TV
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
