Insignia 32" 720p 60Hz LED TV
www.insigniaproducts.com
AV (composite video) (good)
1 Make sure that your TV’s AC power adapter is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the green VIDEO / Y jack and L and R AUDIO IN jacks on the back of your TV
and to the AV OUT jacks on the DVD or Blu-ray player.
3 Plug your TV’s AC power adapter into a power outlet, then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the
documentation that came with the player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO / Y jack.
Notes
•The VIDEO / Y, PB, and PR video jacks (used to connect a component
device) share the L and R AUDIO IN jacks with the VIDEO / Y jack (used
to connect an AV (composite video) device).
• When you connect the audio using the L and R AUDIO IN jacks, the
audio output is analog.

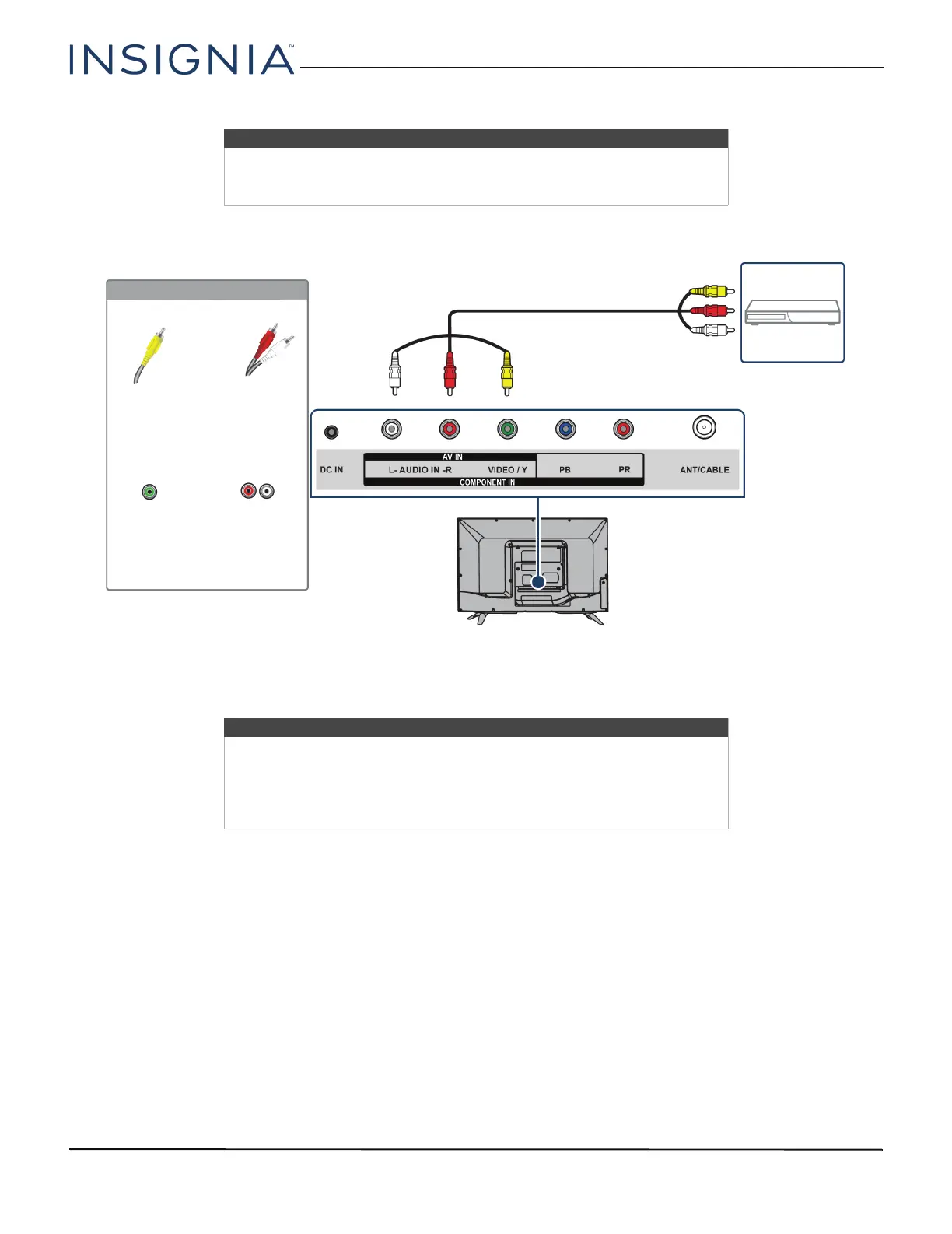

AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
DVD or Blu-ray
player
On your TV
