Insignia 39"/42"/46" 1080p LED TV
www.insigniaproducts.com
Using component video (better)
To connect a DVD or Blu-ray player using
component video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect a component video cable (not
provided) to the COMPONENT IN Y, P
B, and PR
jacks on the back of your TV and to the
COMPONENT OUT jacks on the component
video device.
3 Connect an audio cable (not provided) to the
COMPONENT IN L/R audio jacks on the back of
your TV and to the L/R AUDIO OUT jacks on the
DVD or Blu-ray player.
4 Plug your TV’s power cord into a power outlet,
then turn on your TV.
5 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
6 Press INPUT to open the Input source list.
7 Press
S or T to select Component, then press
ENTER.
Using composite video (good)
To connect a DVD or Blu-ray player using
composite video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an AV cable (not provided) to the
AV IN VIDEO jack and AV IN L/R audio jacks on
the side of your TV and to the AV OUT jacks on
the DVD or Blu-ray player.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
5 Press INPUT to open the Input source list.
6 Press
S or T to select AV, then press ENTER.
Note
The back of your TV may vary from the illustration
based on the model of your TV.
Notes
• When you connect the audio using the
COMPONENT IN L/R audio jacks, the audio
output is analog.
Note
You can also press VIDEO one or more times to select
the DVD or Blu-ray player.

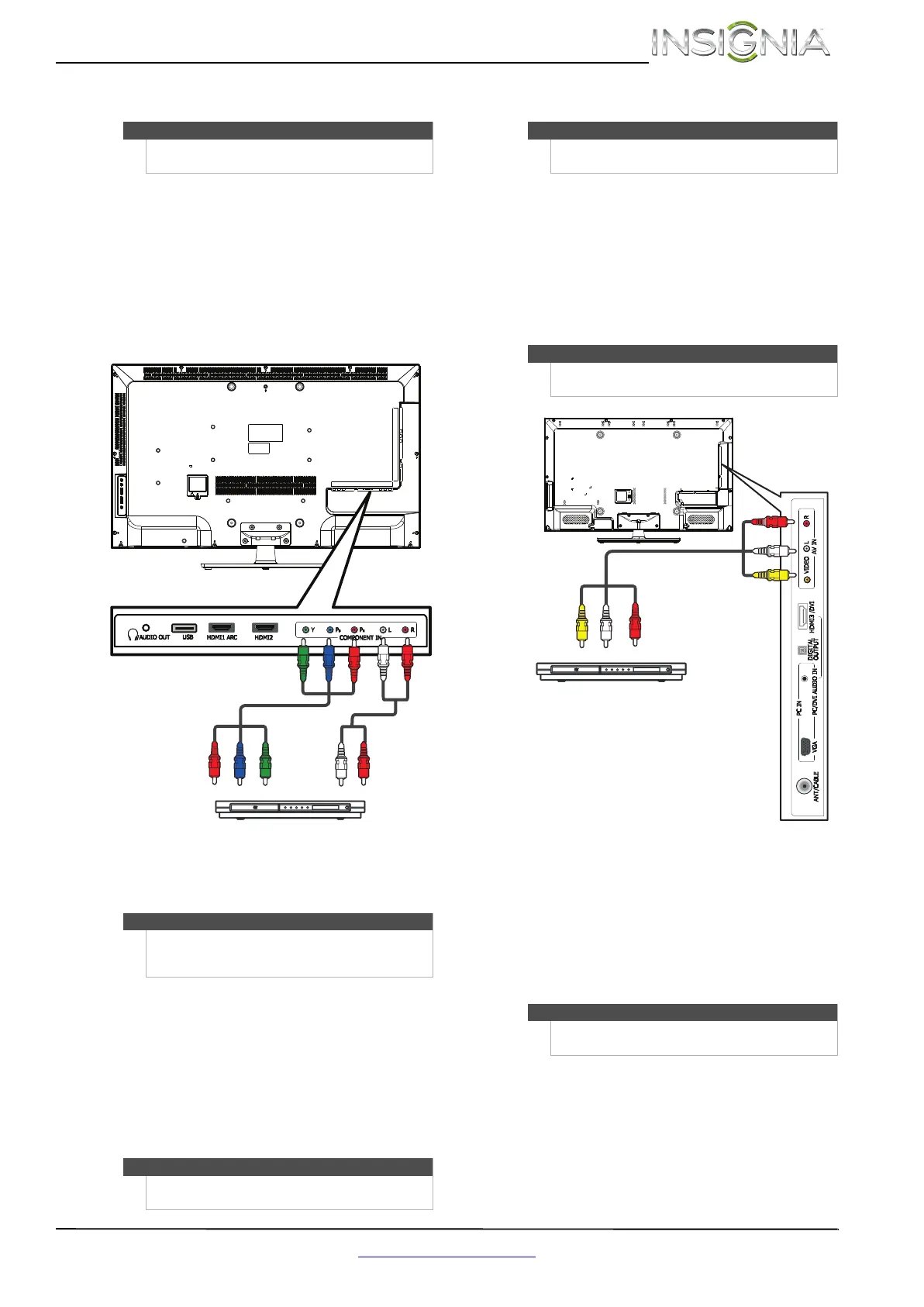

Component video cable
Audio cable
Cables are often
color-coded to match
color-coded jacks.
DVD or Blu-ray player
Back of TV
Note
The back of your TV may vary from the illustration
based on the model of your TV.
Note
When you connect the audio using the AV IN L /R
audio jacks, the audio output is analog.
Notes
You can also press VIDEO one or more times to select
the DVD or Blu-ray player.
DVD or Blu-ray player
Cables are often color-coded to
match color-coded jacks.
AV cable
Side of TV
To Next Page
