12
www.insigniaproducts.com
4 Install the lock nut on the strain relief from inside the junction box.
5 Insert the ends of the power cord’s electrical wires into the junction box through the strain relief.
6 Connect the incoming white (or ribbed) wire to the dishwasher’s white wire, the black (or smooth) wire to the
dishwasher’s black wire, and the ground wire to the dishwasher’s green wire. Use cUL/UL listed wire nuts of the
appropriate size.
7 After making all the connections, pull the power cord through the strain relief a bit (so that the cord isn't folding in
the junction box).
8 Tighten the strain relief screws and lock nut to stabilize the power cord’s electrical wires, then make sure that all of
the connections are secure.
9 Route the cord and place it in the brackets in the groove on the bottom of the washer.
10 Replace the junction box cover on the right front of the dishwasher. Be sure that the wires are not pinched under
the cover.

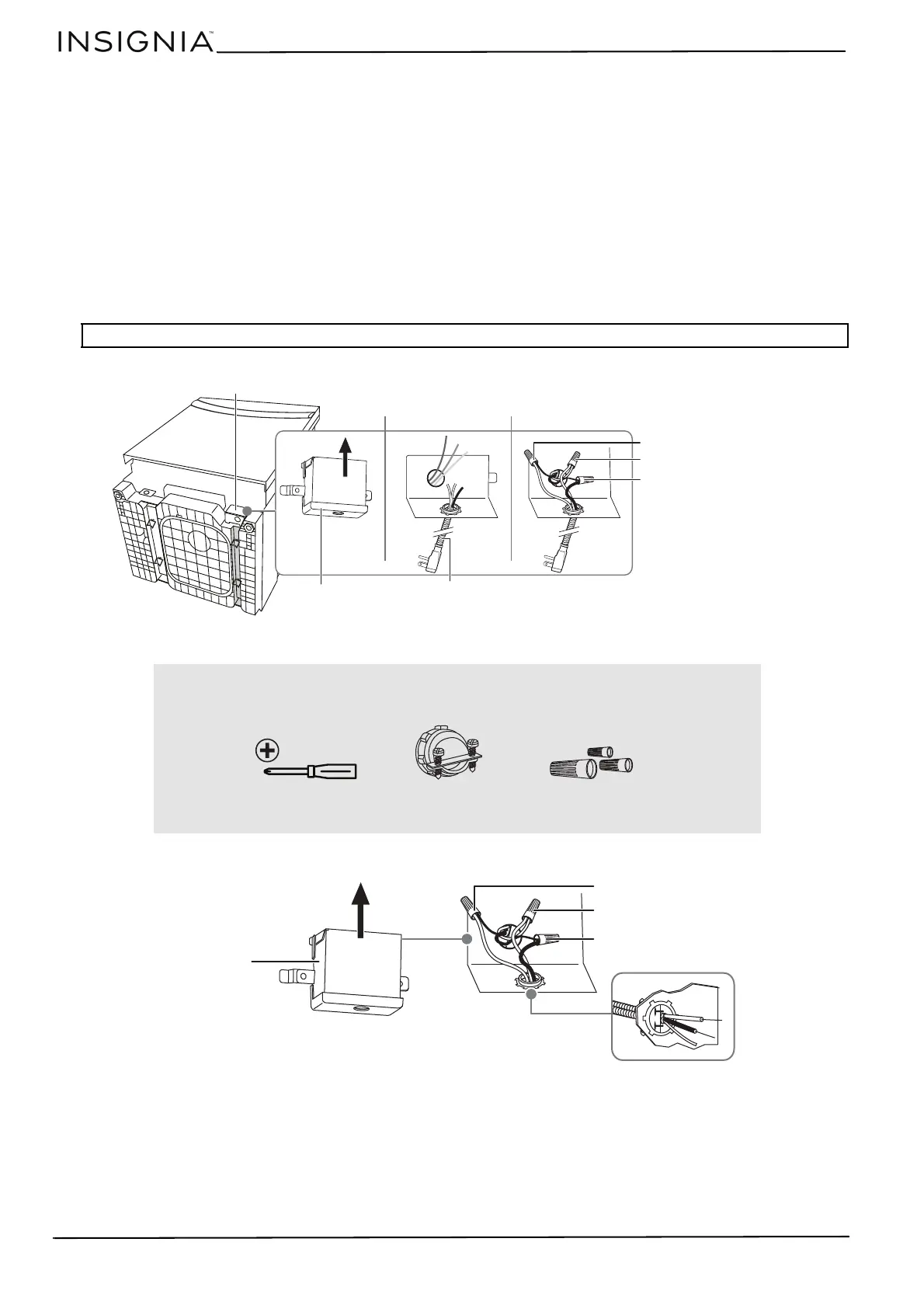

Direct wiring
1 Remove the junction box cover from the power supply junction box on the right front of the dishwasher.
2 Locate the three dishwasher wires, (white, black, and green) with stripped ends, then insert the dishwasher wires
through the small hole in the junction box.
3 Secure the house wiring to the bottom of the junction box with a strain relief fitting.
4 Use wire nuts to connect incoming ground to green, white to white, and black to black.
5 Replace the junction box cover. Make sure that no wires are pinched under the cover.
Note: If you have trouble replacing the junction box cover, loosen the screws on the strain relief.
You’ll need:
Junction box
Green wire to green (ground) wire
Black wire to black (hot) wire
White wire to white (neutral) wire
Power cord
Junction box
Phillips screwdriver
Wire nuts (UL listed)
Strain relief
Junction box
Green wire to green (ground) wire
Black wire to black (hot) wire
White wire to white (neutral) wire
Insert the wires through the strain relief fitting
and tighten (the strain relief needs to turn 90° if
the screw is too long for installation)
