Insignia NS-PDVD10 User Manual

17
Insignia NS-PDVD10 10.2" Personal DVD Player
www.insignia-products.com

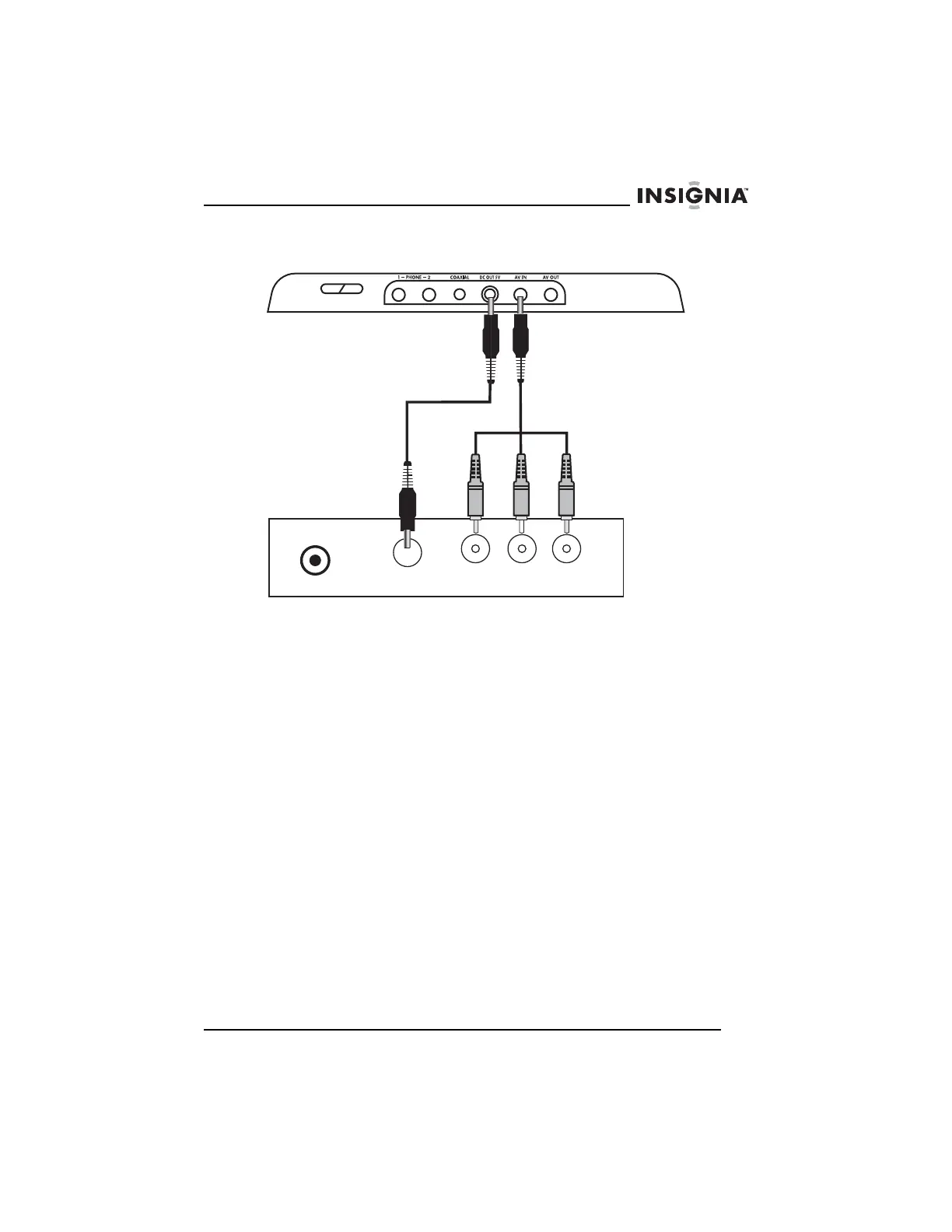

Connecting the optional TV tuner
To connect the optional TV tuner:
1 Connect a power connecting cable to the DC OUT jack on your
player and the DC IN jack on the TV tuner.
2 Plug the mini AV connector into the AV IN jack on the right side of
your player.
3 Plug the yellow connector into the VIDEO OUT jack on the TV
tuner.
4 Plug the red connector into the AUDIO OUT R jack on the TV
tuner.
5 Plug the white connector into the AUDIO OUT L jack on the TV
tuner.
6 Connect an antenna or cable or satellite receiver to the VHF/UHF
jack on the TV tuner.
DC IN
VHF/UHF
R - AUDIO - L
VIDEO

Insignia NS-PDVD10 Specifications

General

Brand	Insignia
Model	NS-PDVD10
Category	Portable DVD Player
Language	English
