14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

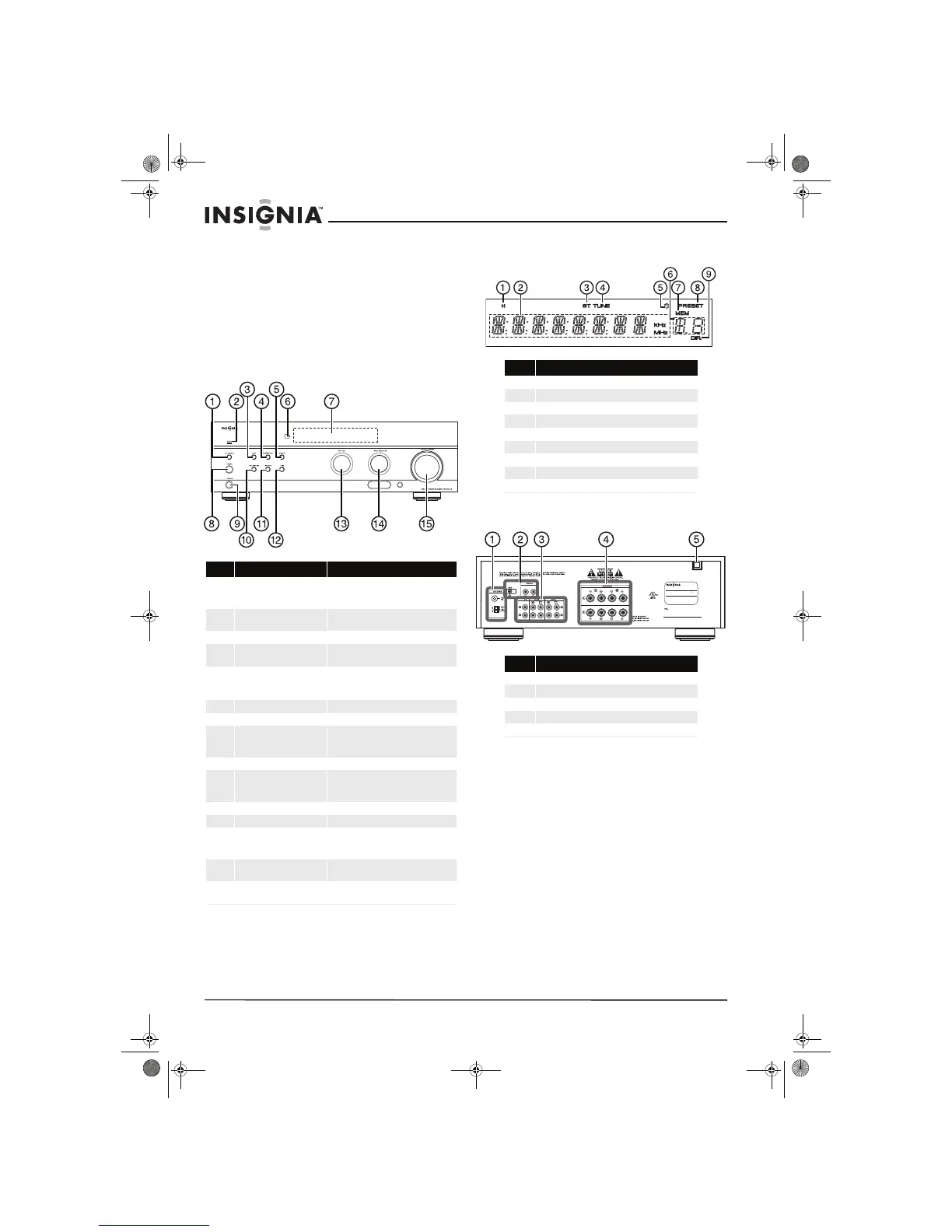

Features
Front controls
Florescent display
Back
Item Description Function
1 ON/STANDBY button Press to turn on your stereo receiver. Press
again to put your stereo receiver in standby
mode.
2 STANDBY indicator Lights blue when your stereo receiver is in
standby mode.
3 BAND button Press to toggle between AM and FM.
4 TUNING/PRESET button Press to toggle between tune and preset
mode.
5 MEMORY button Press to save a station preset.
Press and hold to automatically search for
FM stations and store them in memory.
6 Remote sensor Receives the signal from the remote control.
7 Display Provides information about the receiver.
8 POWER button Press to power on the stereo receiver putting
it into standby mode. Press again to power
down the stereo receiver
9 HEADPHONE jack Plug stereo headphones into this jack.
10 SPEAKER A/B button Press to cycle through the available speaker
options. Speakers off>Speaker A on
>Speaker B on >Speakers A and B on.
11 BALANCE button Press to turn the balance mode on .
12 TONE button Press to turn the tone mode on.
13 UP/DOWN knob Turn to tune the radio frequency up or down,
or to adjust tone, balance, and so on,
depending on the receiver mode.
14 INPUT SELECTOR knob Turn to cycle through the available receiver
inputs.
15 MASTER VOLUME control
knob
Turn to increase or decrease the volume.
Item Description
1 Headphone indicator
2 Input, frequency, volume level, operating information
3 STEREO indicator
4 TUNED indicator
5 SLEEP indicator
6 Preset number, sleep time display
7 MEMORY indicator
8 PRESET indicator
9 TONE DIRECT indicator
Item Description
1 AM and FM antenna jacks
2 PHONO jacks
3 Audio input jacks
4 Speaker terminals
5AC power cord
Manufactured for Insignia Products 7601
Penn Ave. S., Richeld, MN 55423-3645 USA
NS-R2001
POWER SOURCE
POWER CONSUMPTION
AM/FM STEREO RECEIVER
DESIGNED IN USA
MADE IN CHINA
120V 60Hz
2.5A
E308916 48W3
Audio/Video
Apparatus
