42

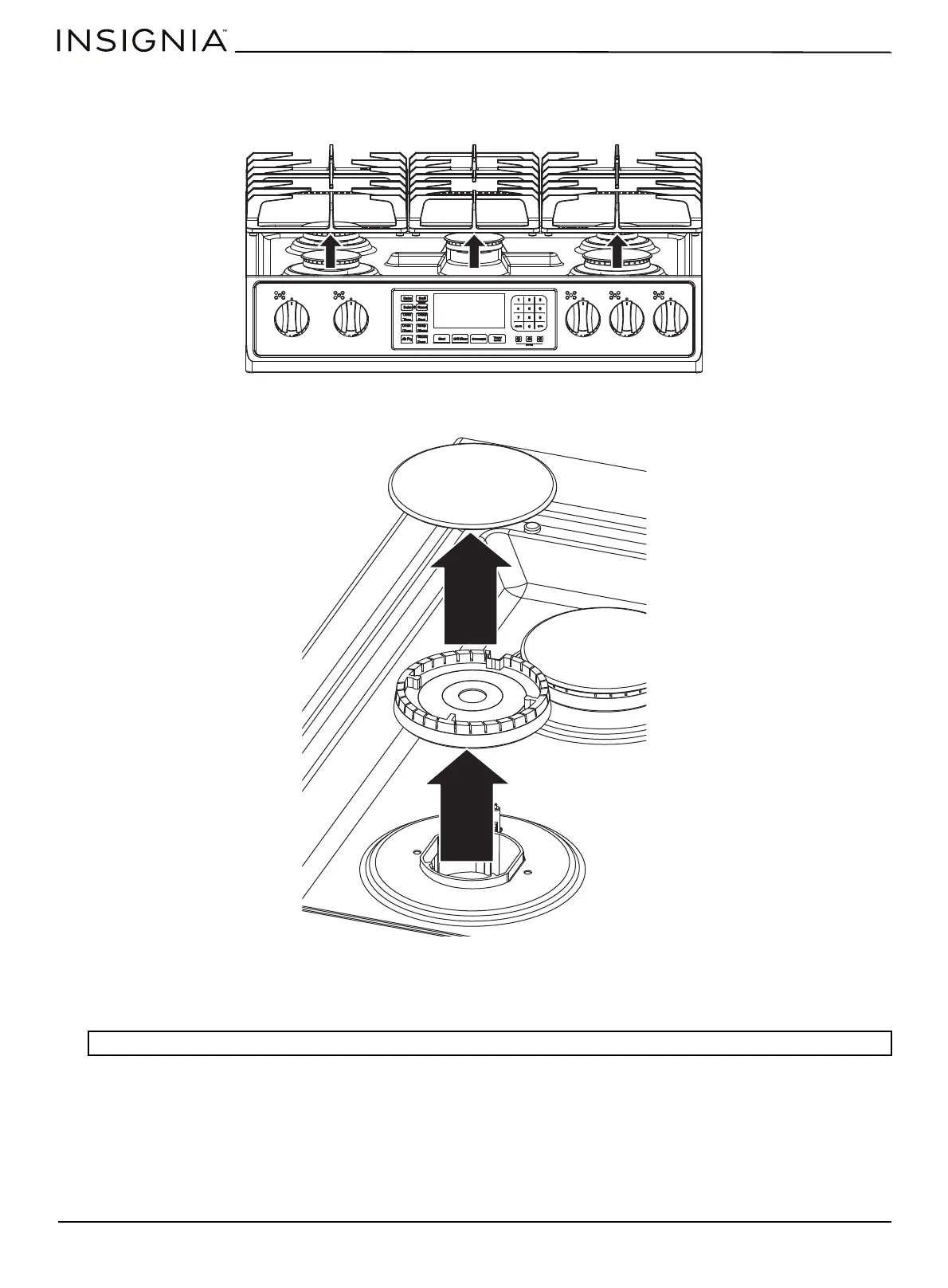

Cleaning surface burner grates and assemblies
1 Turn off all controls and make sure that all parts have cooled.
2 Lift up and remove the burner grates from the cooktop. Make note of the burner sizes and locations.
3 Lift up and remove the burner caps from the burner heads.
4 Lift up and remove the burner heads from the valve manifolds.
5 Clean all removable burner parts in warm, soapy water. Don’t use steel-wool pads or abrasive cleaners on any burner
part.
6 Rinse thoroughly, then completely dry all parts before you reassemble them.
Note: Starter electrodes aren’t removable and should only be wiped clean when the controls are in the OFF position.
