B. For power cord and 1 in. (2.5 cm) conduit installations only, remove the knockout ring located on the bracket directly
below the terminal block. To remove the knockout, use a pair of pliers to bend the knockout ring away from the bracket
and twist until the ring is removed.
C. For power cord installations only (see the next step if using conduit), assemble the strain relief in the hole. Insert the
power cord through the strain relief and tighten. Allow enough slack to easily attach the power cord terminals to the
terminal block. If tabs are present at the end of the winged strain relief, they can be removed for a better fit.
D. For 3/4 in. (1.9 cm) conduit installations only, purchase a squeeze connector matching the diameter of your conduit
and assemble it in the knockout hole. Insert the conduit through the squeeze connector and tighten. Allow enough
slack to easily attach the wires to the terminal block.
Note: Do not install the power cord without a strain relief. The strain relief bracket MUST be installed before
reinstalling the rear range wiring cover.
Note: Do not install the conduit without a squeeze connector. The squeeze connector MUST be installed before
reinstalling the rear terminal block.

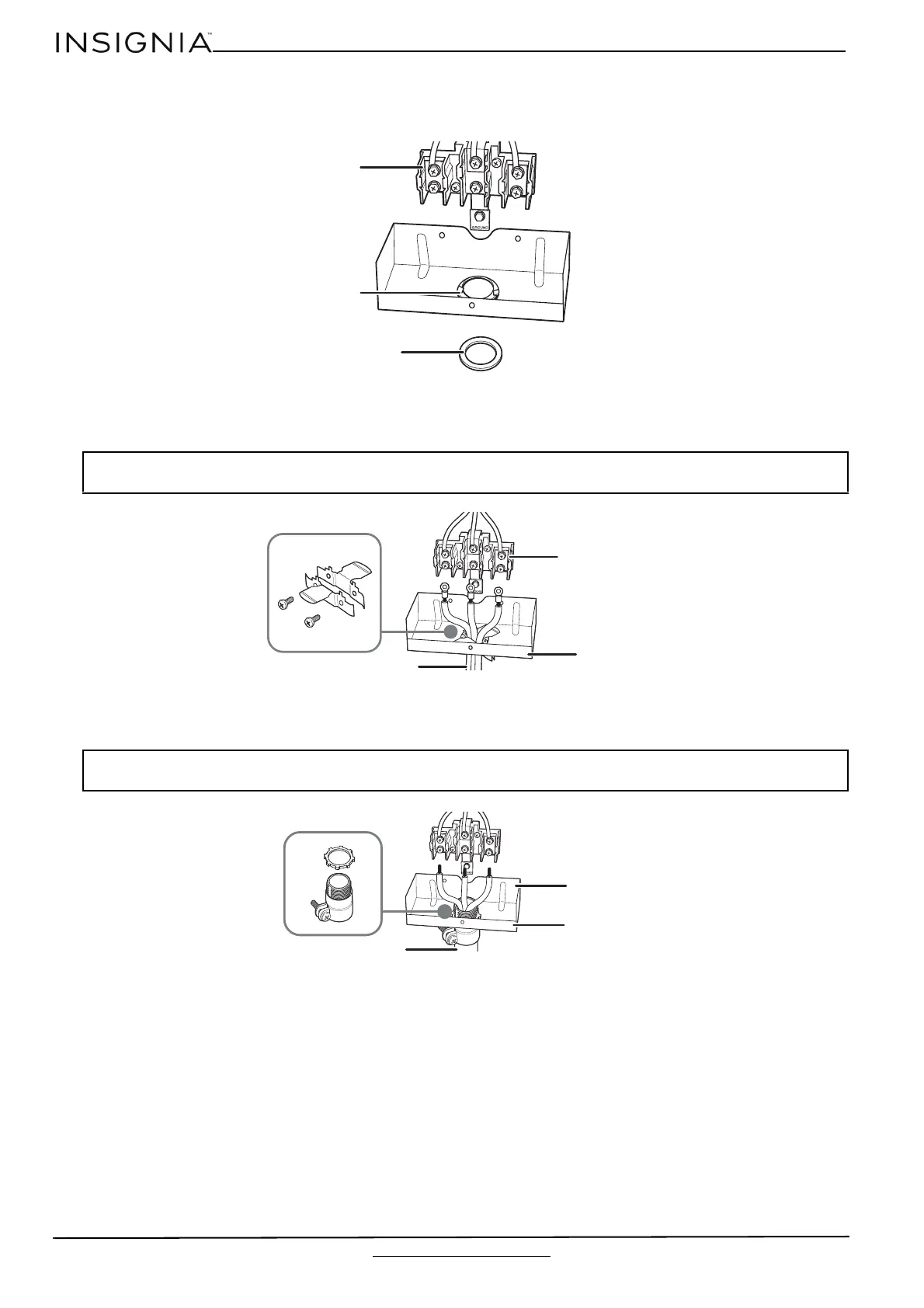

Terminal block
(appearance may vary)
Knockout ring (in
bracket)
Knockout ring
(removed)
Strain relief
Power cord
Bracket
Terminal block
Conduit
Squeeze connector
Terminal block
Bracket
