This appliance must be supplied with the proper electrical voltage and frequency, and connected to an individual,
properly grounded, 40 amp (minimum) branch circuit protected by a circuit breaker or time-delay fuse.
Use only a 3-conductor or a 4-conductor UL-listed range cord. These cords may be provided with ring terminals on wire
and a strain relief device.
A range cord rated at 40 amps with 125/250 minimum volt range is required. A 50 amp range cord is not recommended
but, if used, should be marked for use with nominal 13⁄8 in. (3.5 cm) diameter connection openings. Care should be
taken to center the cable and strain relief within the knockout hole to keep the edge from damaging the cable.
The rating plate is located on the oven frame or on the side of the drawer frame.
Step 4: Power Cord And Conduit Installations

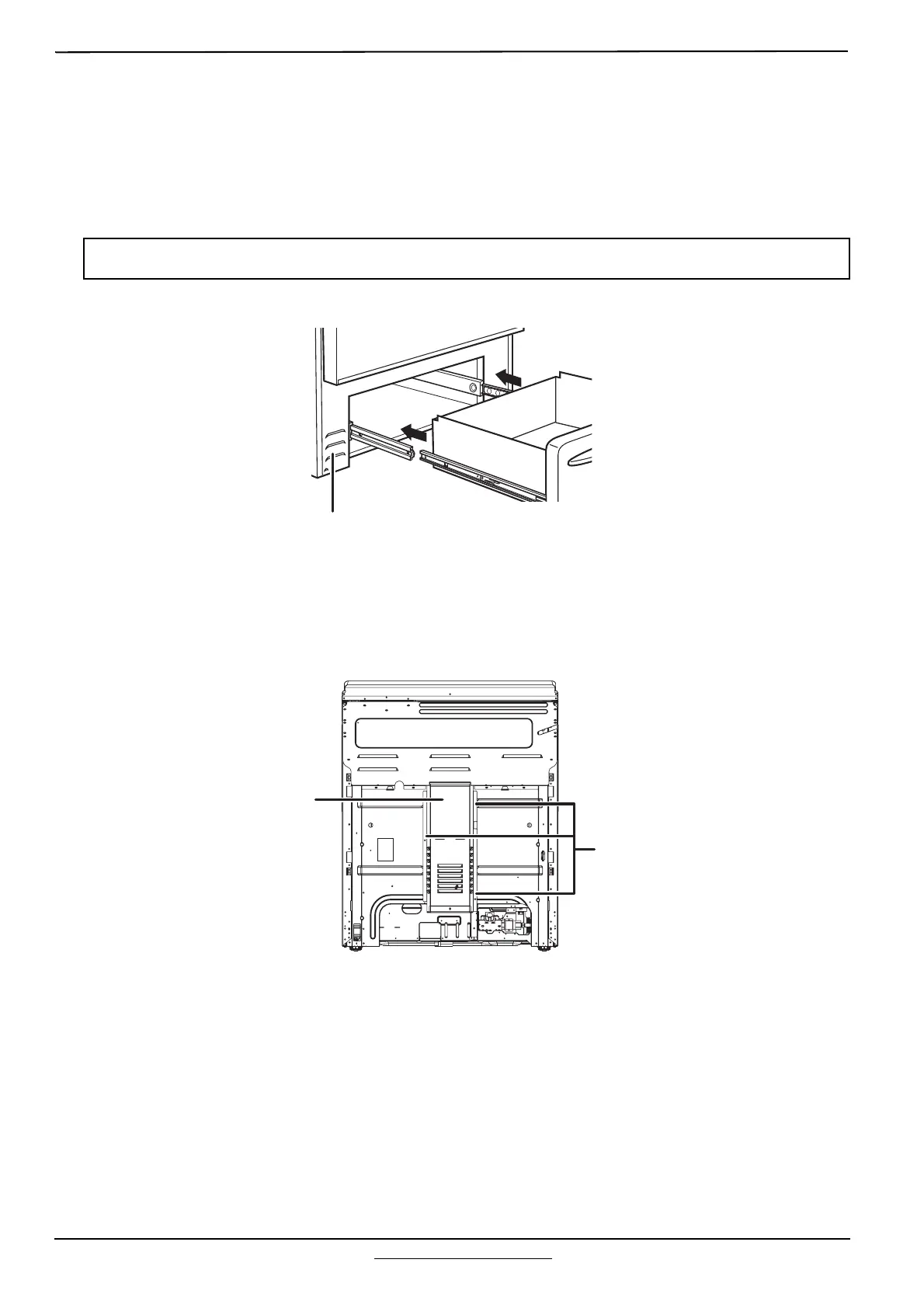

A. Access the terminal block by removing the terminal block cover (and attached wire cover) from the back of the range.
To remove the cover, remove the screws shown in the image below using a 1/4 in. (.64cm) nut driver. Do not discard
these screws.
Note: Use of automatic, wireless, or wired external switches that shut off power to the appliances are not
recommended for this product.
Terminal block cover
Back of range
Screws to remove
terminal block cover
