Insignia NS-RNE4BWH8-C Installation Guide

3
4-Burner Electric Range
www.insigniaproducts.com
•Pliers
•1/4” Nut Driver
•Level
1 – REMOVE PACKAGING MATERIALS
Failure to remove packaging materials could result in damage to the appliance. Remove all packing parts from
oven, racks, heating elements, and drawer. Also, remove protective film and labels on the outer door, cooktop,
and backguard.
2 – PREPARE THE OPENING (FOR INDOOR USE ONLY)

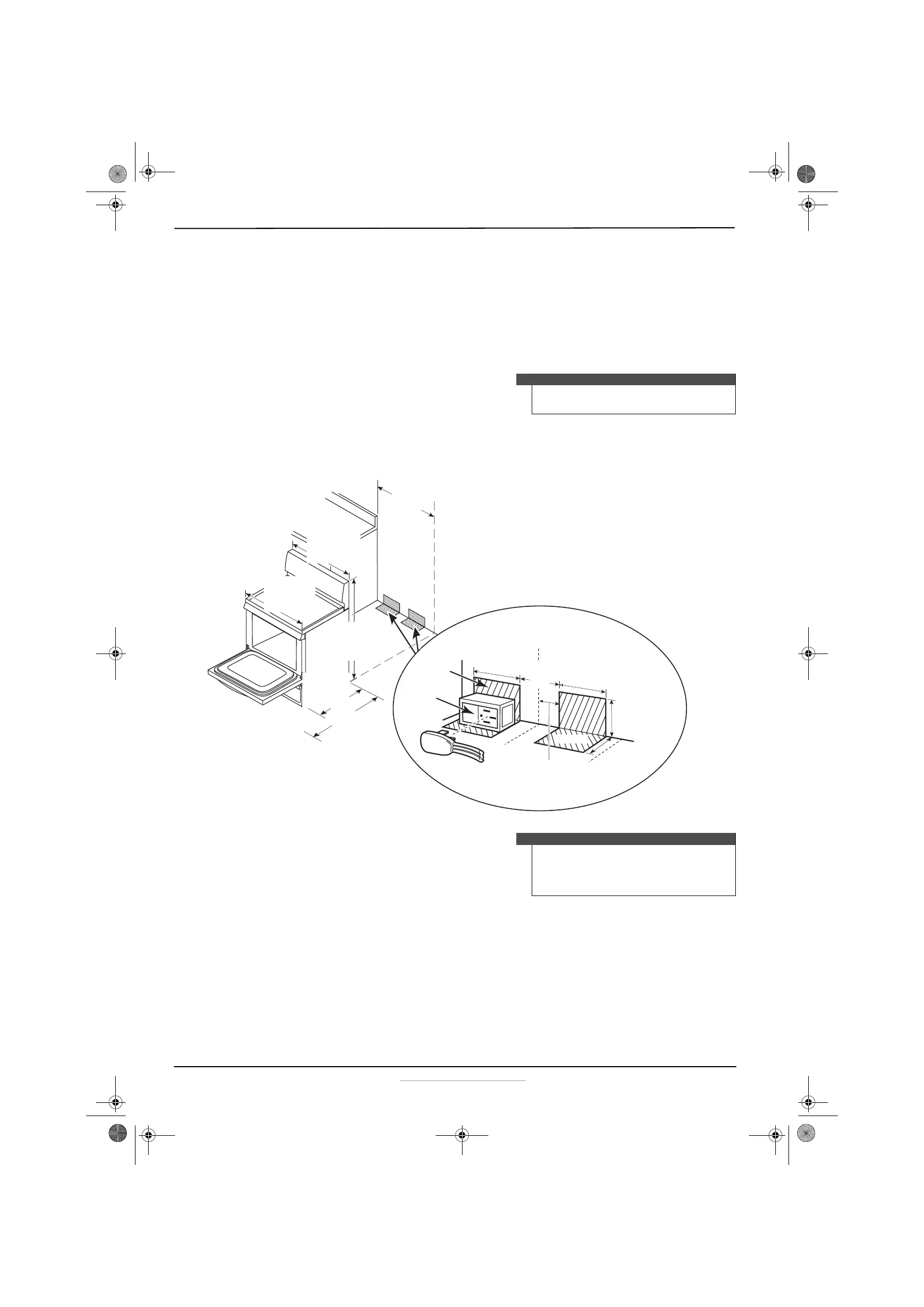

See illustrations for all rough-in and spacing dimensions.
Note
Cut the orange shipping ties from the power cord, being
careful not to damage the cord.
Note
Use a four foot (1.2 m) power cord to prevent interference
with the storage drawer. Power cords four to six feet (1.2
to 1.8 m) long may have to be dressed to allow for proper
drawer closing.
78.7 cm
(31”)
76.2 cm
(30”)
75.8 cm
(29-7/8”)
121.3 cm
(47-3/4”)
66 cm
(26”)
116.8 cm
(46”)
Install the outlet box on
either side of the centerline
Centerline of range
Wall
Outlet box
Cord
19 cm
(7-1/2”)
19 cm
(7-1/2”)
12.7 cm
(5”)
Floor
8.9 cm
(3-1/2”)
5.7 cm
(2-1/4”)
17.7cm
(7”)
