5
4-Burner Electric Range
www.insigniaproducts.com
3 – ANTI-TIP DEVICE INSTALLATION
To reduce the risk of tipping the
range, the range must be secured
by a properly installed anti-tip
bracket. See installation
instructions shipped with the
bracket for complete details before
attempting to install.
To check if the bracket is installed
and engaged properly, remove the
storage drawer or kick panel and
look underneath the range to see
that the leveling leg is engaged in
the bracket. On models without a
storage drawer or kick panel,
carefully tip the range forward. The
bracket should stop the range
within 4 inches (10 cm). If it does
not, the bracket must be
reinstalled. If the range is pulled
from the wall for any reason, always
repeat this procedure to verify the
range is properly secured by the
anti-tip bracket. Never completely
remove the leveling legs or the
range will not be secured to the
anti-tip device properly.

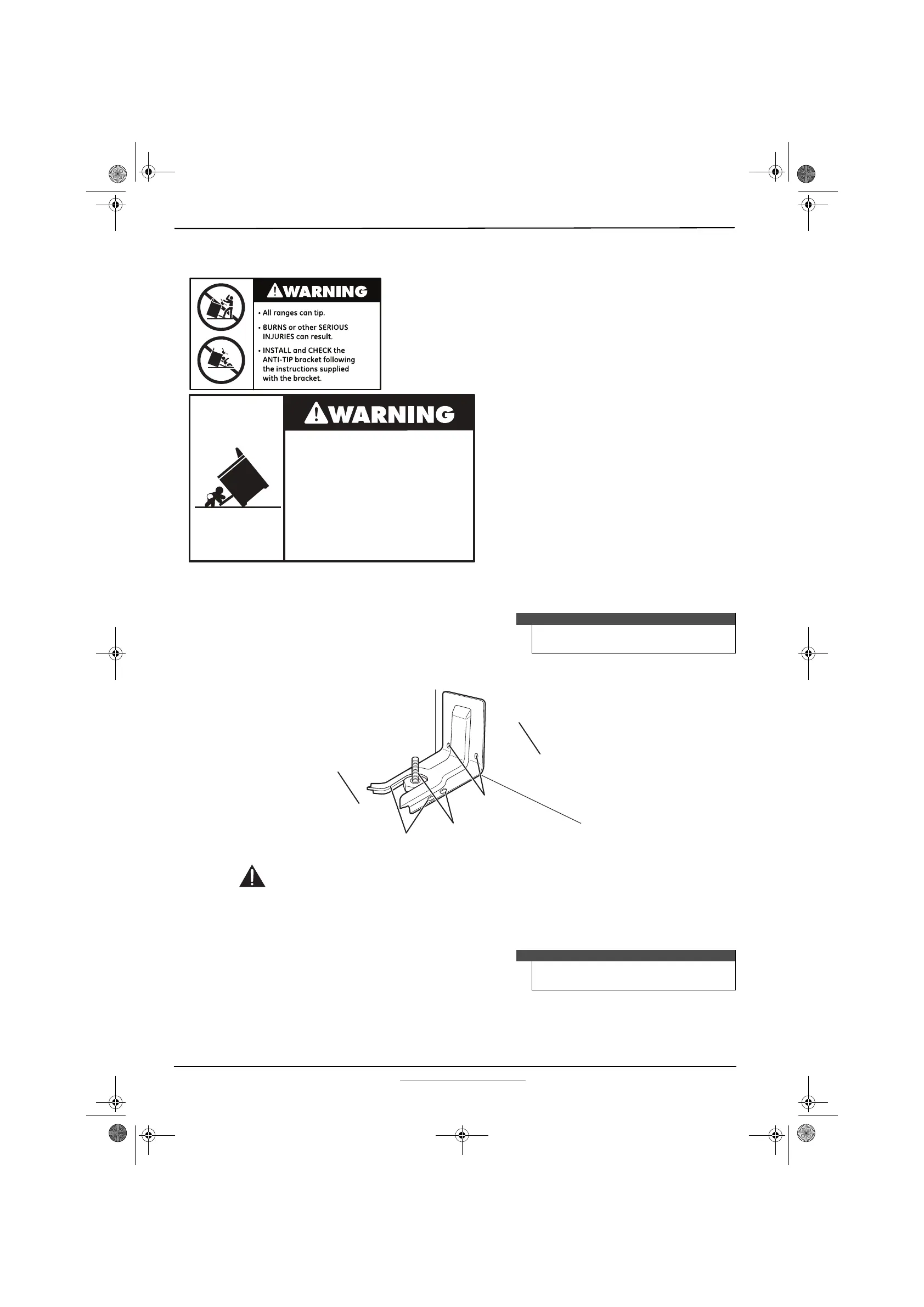

Step 1 — Locate the bracket
1 Place the bracket on the floor with the back edge against the rear wall. If the range does not reach the rear
wall, align the back edge of the bracket with the rear panel of the range in its final location.
If bracket does not touch the rear wall, you MUST screw bracket to FLOOR as described in Step 2.
2 Position the side of the bracket against either the left or right cabinet. If there is no adjacent cabinet, align the
edge of the bracket with the side panel of the range in cabinet, offset the bracket from the cabinet by the
amount of overhang.
3 Mark the location for the pair of holes to be used (see illustration above).
Important
Determine the final location of the range before
attempting to install the bracket.
Note
For FLOOR installation use either Loc A or B. For REAR
WALL installation use Loc C.
• A child or adult can tip the range and be
killed.
• Verify the anti-tip bracket has been installed.
• Ensure the anti-tip bracket is engaged when
the range is moved.
• Do not operate the range without the anti-tip
bracket in place.
• Failure to follow these instructions can result
in death or serious burns to children and
adults.
Rear Wall
Loc C
Loc B
Loc A
Adjacent cabinet
or final location of
range side panel
