10
NS-SB216
www.insigniaproducts.com

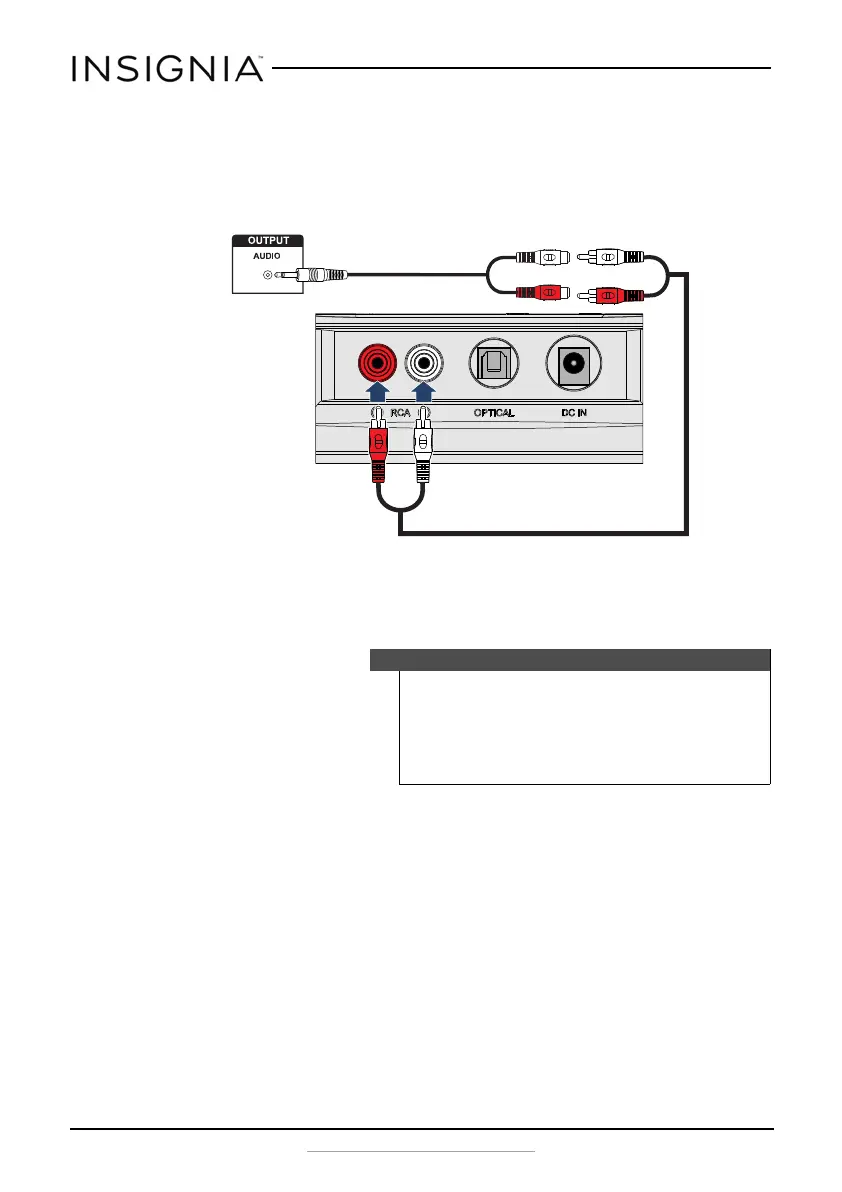

3.5mm connection (good)
1 Connect one end of the RCA audio cable connectors to your soundbar,
then connect the other end to the 3.5 mm to RCA adapter (included).
2 Connect the other 3.5 mm male end of the adapter into the headphone
or AUX Output on your audio source device.
Third step - Connecting the AC adapter
After you have connected your soundbar to an audio source, you need to
connect it to an AC power outlet.
1 Connect the AC adapter to the DC IN jack on the back of the soundbar.
Cautions
• Make sure that the electrical outlet matches the
AC adapter’s input requirements of 100-240 V,
50/60 Hz before connecting.
• Use only the AC adapter provided.
• Plug in the AC adapter only after all other
connections have been made.
Back of the soundbar
TV, DVD or Blu-ray
player
3.5 mm to RCA adapter
RCA audio cable (included)
(included)
NS-SB216_16-0248_MAN_V1_ENG.fm Page 10 Wednesday, July 6, 2016 11:42 AM
