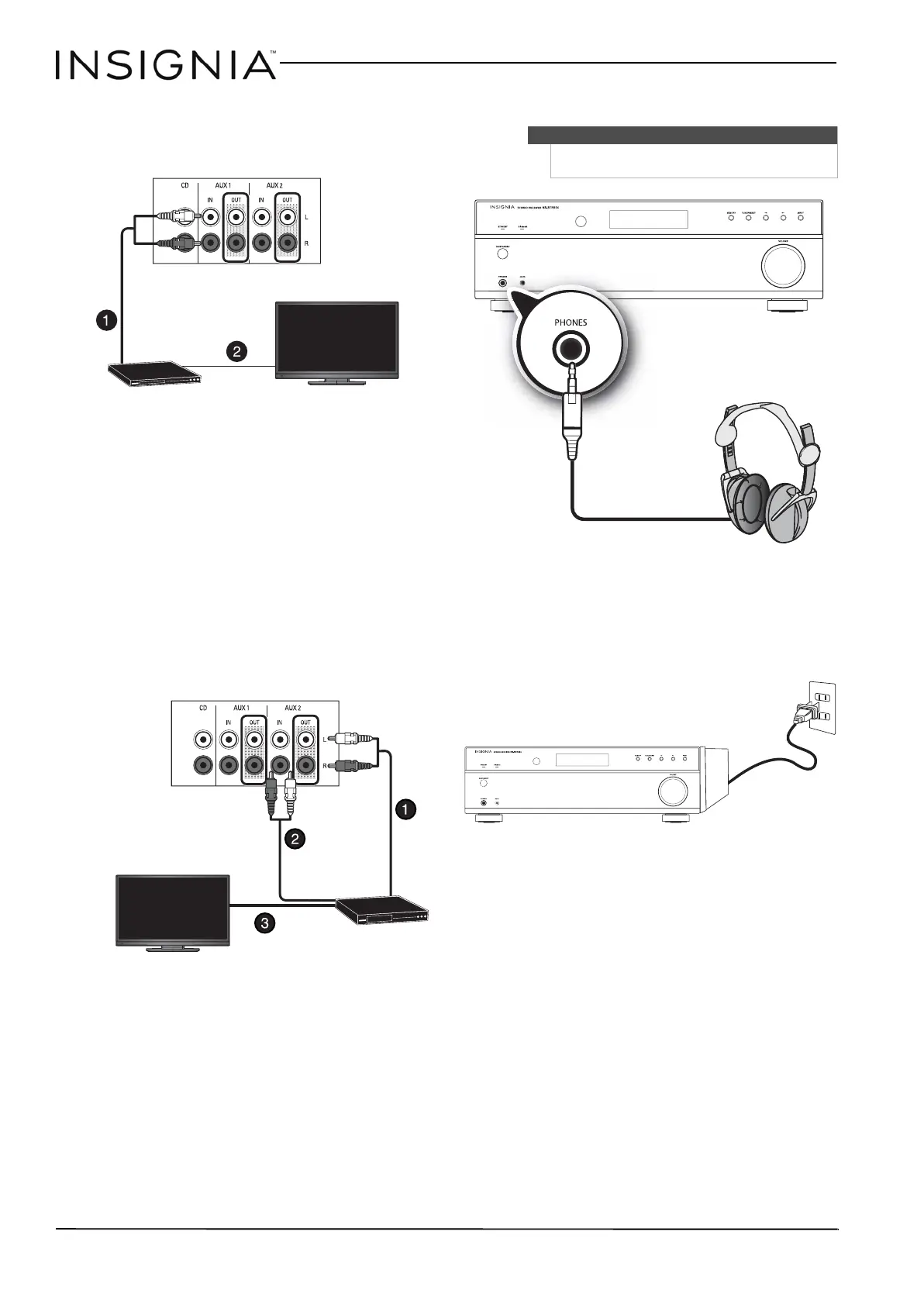

2 Connect the video cable(s) (such as component,
composite, HDMI, DVI, or coaxial) from the
output jack on the video device to the
appropriate input jack on your TV.
Connecting recording devices
You can connect an audio recording device to your
receiver to record audio from the built-in tuner or
from any audio source connected to the receiver.
1 Connect the cable from the L/R AUDIO IN jacks
on the recording device to the L/R AUX OUT (1
or 2) jacks on the receiver.
2 Connect the cable from the L/R AUDIO OUT
jacks on the recording device to the L/R AUX IN
(1 or 2) jacks on the receiver.
3 Connect the video cable(s) (component,
composite, HDMI, DVI, or coaxial) from the
output jack on the recording device to the
appropriate input jack on your TV.
Connecting headphones
• Insert a 1/4” headphone plug into the headphone
jack on the receiver. H appears on the display, and
sound is heard from the headphones.
Connecting the power
• Plug the power cord into an AC outlet.
Video cable
TV
DVD/DVR/Blu-ray
Back panel
VCR or Cassette
recorder
TV
Video cable
Note
When you plug headphones into the receiver, the
external speakers are turned off.
AC power cord
