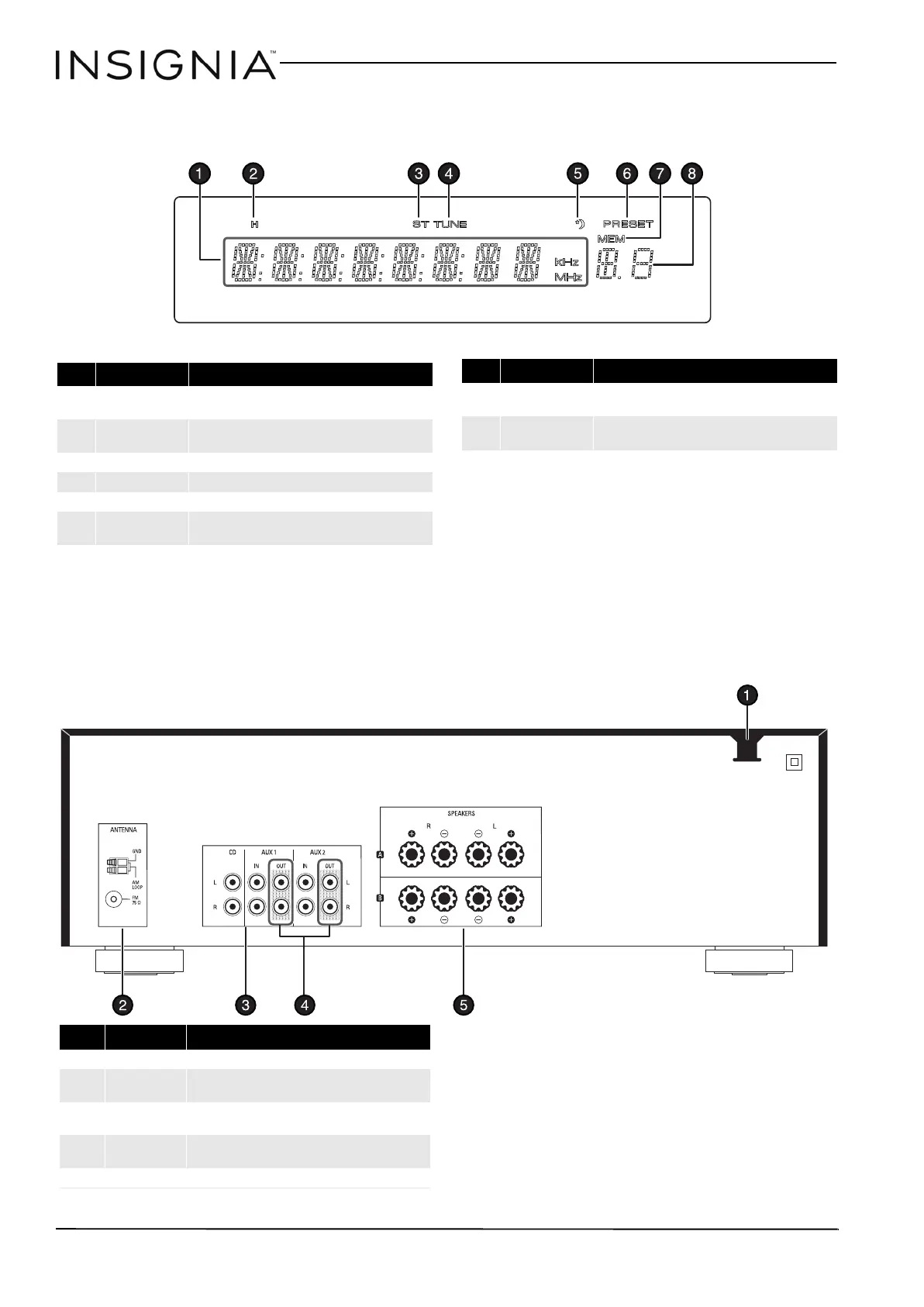

Display
Back
# Item Description
1 Information display Shows input, frequency, volume level, and operating
information.
2 Headphone
indicator
Lights when in Headphone mode and headphones are
connected.
3 ST(EREO) indicator Lights when in stereo mode.
4 TUNE indicator Lights when tuned to a radio station.
5 SLEEP indicator Lights when the sleep timer is active.
6 PRESET indicator Lights to indicate that the receiver will scan through
preset radio channels when tuning.
7 MEM (station
memory) indicator
Blinks when setting preset channels.
8 Preset station
indicator
Shows preset number selected.
# Item Description
# Item Description
1 AC power cord Plug this cord into an AC power outlet.
2 AM and FM
antenna jacks
Connect the AM and FM antennas to these jacks.
3 AUX IN jacks Connect an external sound source (such as a CD,
DVD/Blu-ray player, or TV) to these jacks.
4 AUX OUT jacks Connect audio recording devices to these jacks to record
audio played through your receiver.
5 Speaker terminals Connect speakers to these terminals.
NS-STR514_16-0462_MAN_V2_ENG.book Page 4 Monday, November 21, 2016 12:48 PM

Insignia NS-STR514 Specifications

General

Channels	2
Impedance	8 ohms
Frequency Response	20Hz - 20kHz
Tuner	AM/FM
Bluetooth	Yes
Model	NS-STR514
Input Sensitivity	200 mV
USB Port	No
Power Output	100 W
Outputs	1 Subwoofer, 1 Headphone
RMS Output Power	100W per channel
